M12 Connector Industrial Field Wirable Assembly Connector 4 Pin Female A Code

Brand Name:	KRONZ
Model Number:	H1204F-7/H1204F-9
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Type:

Contact

Product Name:

M12 Field-wireable Assembly Connector

Standard:

IEC 61076-2-101

Contact Nut Material:

Brass, Nickle-plated

Degree Of Protection:

IP67

Endurance(shell):

>100 Cycles

Ambient Temperature:

-25~+85℃

Seal Material:

FPM/FKM

Supply Ability:

100000 pieces per month

Highlight:

M12 4 Pin Field Wireable Connector

,

Industrial M12 4 Pin Female Connector

,

A Code M12 Field Wireable Connector

Product Description

M12 Connector Industrial Field Wirable Assembly Connector 4 Pin Female A Code

Product Attributes

Attribute	Value
Type	Contact
Product name	M12 Field-wireable Assembly Connector
Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Degree of protection	IP67
Endurance(shell)	>100 cycles
Ambient temperature	-25~+85℃
Seal material	FPM/FKM

Product Description

M12 Connectors, Field-Wirable Assembly, Female, 4 Pin, A-coding, Straight

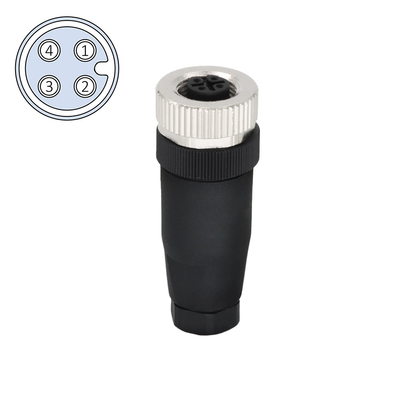

M12 Connector Industrial Field Wirable Assembly Connector 4 Pin Female A Code 0

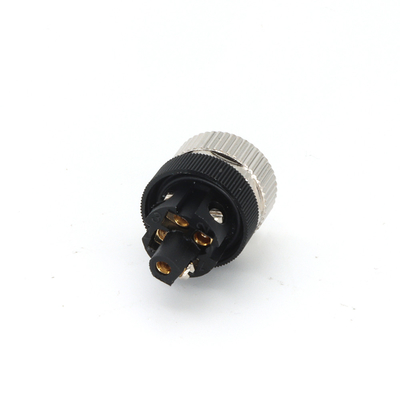

M12 Connector Industrial Field Wirable Assembly Connector 4 Pin Female A Code 1

M12 Connector Industrial Field Wirable Assembly Connector 4 Pin Female A Code 2

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Specifications

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	4A	250V	Straight	4-6mm(PG7)	H1204F-7
						6-8mm(PG9)	H1204F-9
