Field Wireable Assembly M12 Connector 8 Pin A Code Male IP67
  • Name
  • Name

Field Wireable Assembly M12 Connector 8 Pin A Code Male IP67

Brand Name: KRONZ
Model Number: H1208M-7/H1208M-9
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M12 Field Wirable Assembly Connector
Color:
Black
IP Rate:
IP67
Endurance(shell):
>100 Cycles
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Connector Type:
Screw Locking
Supply Ability:
100000 pieces per month
Highlight:

Field Wireable M12 Connector 8 Pin

,

A Code Male M12 Connector

,

IP67 M12 Connector

Product Description
Field Wireable Assembly M12 Connector 8 Pin A Code Male IP67
Product Specifications
Attribute Value
Product name M12 Field Wirable Assembly Connector
Color Black
IP rate IP67
Endurance(shell) >100 cycles
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Ambient temperature -25~+85℃
Connector type Screw Locking
Product Overview

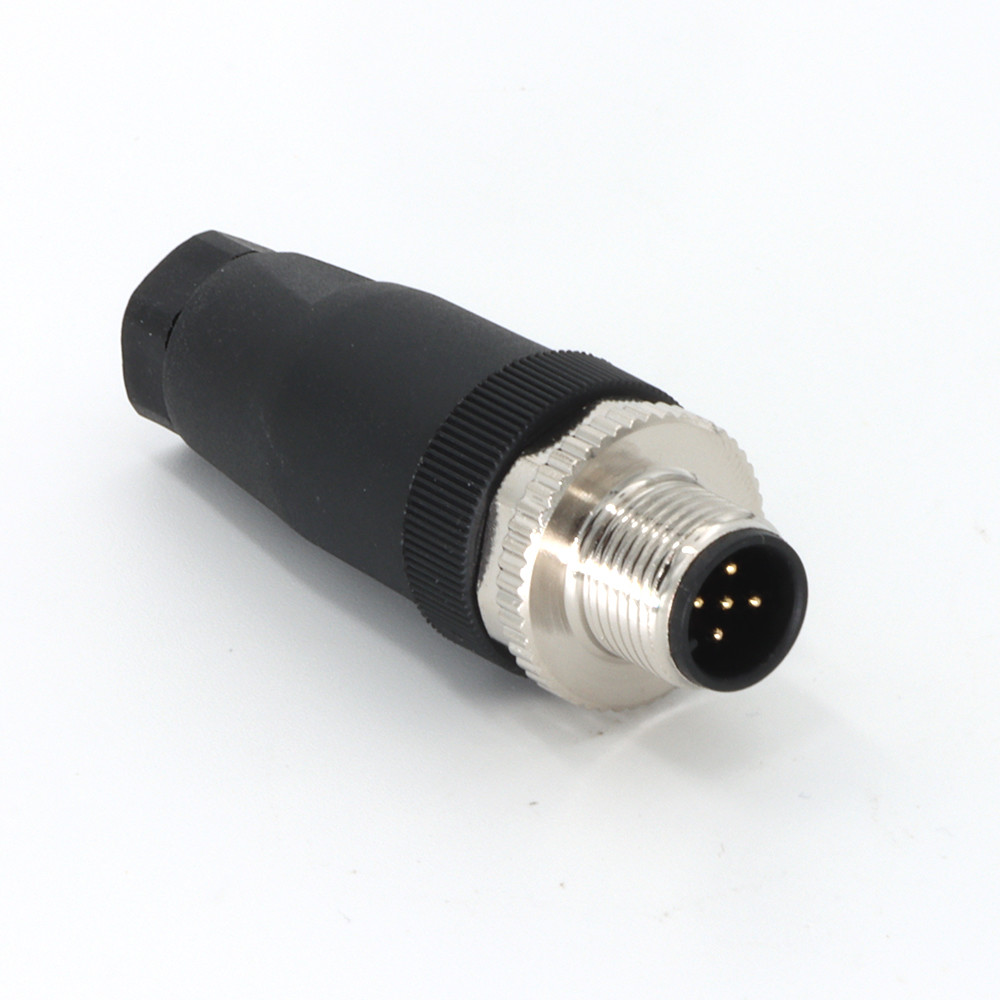

M12 Field-Wirable Assembly Connector, Male, 8 Pin, A-coding, Straight configuration designed for industrial applications requiring reliable connectivity in demanding environments.

M12 Field-Wirable Assembly Connector 8 Pin A Code Male
Technical Specifications
Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details
Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.

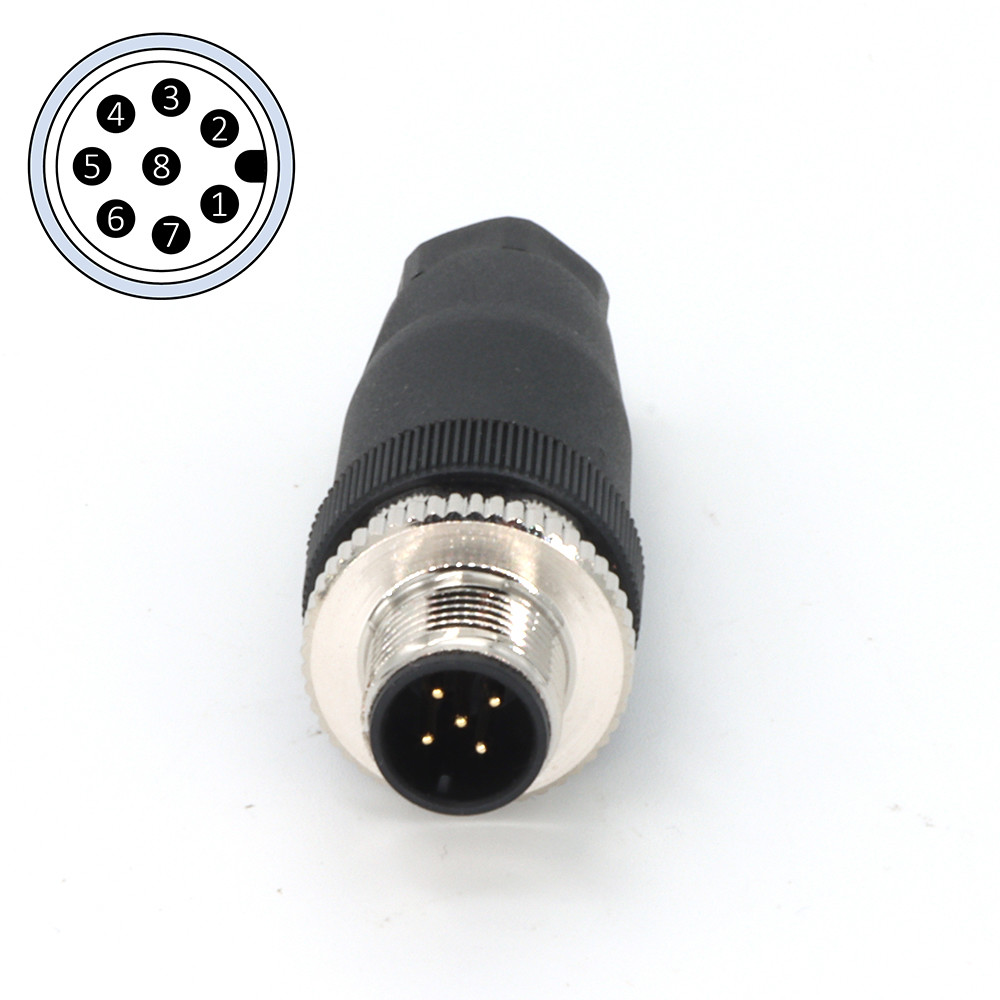

M12 Connector pin assignment diagram Screw connection A 1.5A 30V Straight 4-6mm(PG7)
6-8mm(PG9)		 H1208F-7
H1208F-9
