Home /Products/7/8" Connector/Field Wireable Assembly 7/8" Connector 4 Pin A Code Male

Field Wireable Assembly 7/8" Connector 4 Pin A Code Male

50 pieces
MOQ
Negotiable
Price
Field Wireable Assembly 7/8" Connector 4 Pin A Code Male
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 7/8" Field Wirable Assembly Connector
Contact Nut Material: Zinc Alloy, Nickle-plated
Thread Type: 7/8”-16UN
Endurance(shell): >100 Cycles
Insulation Resistance: ≥ 100MΩ
Contact Resistance: ≤ 5mΩ
Ambient Temperature: -25~+85℃
Connector Type: Screw Locking
Highlight:

Field Wireable Assembly 7/8" Connector

,

7/8" Connector 4 Pin Male

,

A Code 7/8" 4 Pin Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H7804M-9/R
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

7/8" Connector Field-wireable Assembly Connector 4 Pin A Code Male

Our 7/8" field-wireable assembly connector have 4 pin and 5 pin, it is a specific connector type that has 4 or 5 wire receptacles, and the connector is 7/8" in diameter. ‌This kind of connector is usually used in situations where high electrical performance and reliable connection are required, ‌such as industrial automation, ‌machinery manufacturing and other fields.

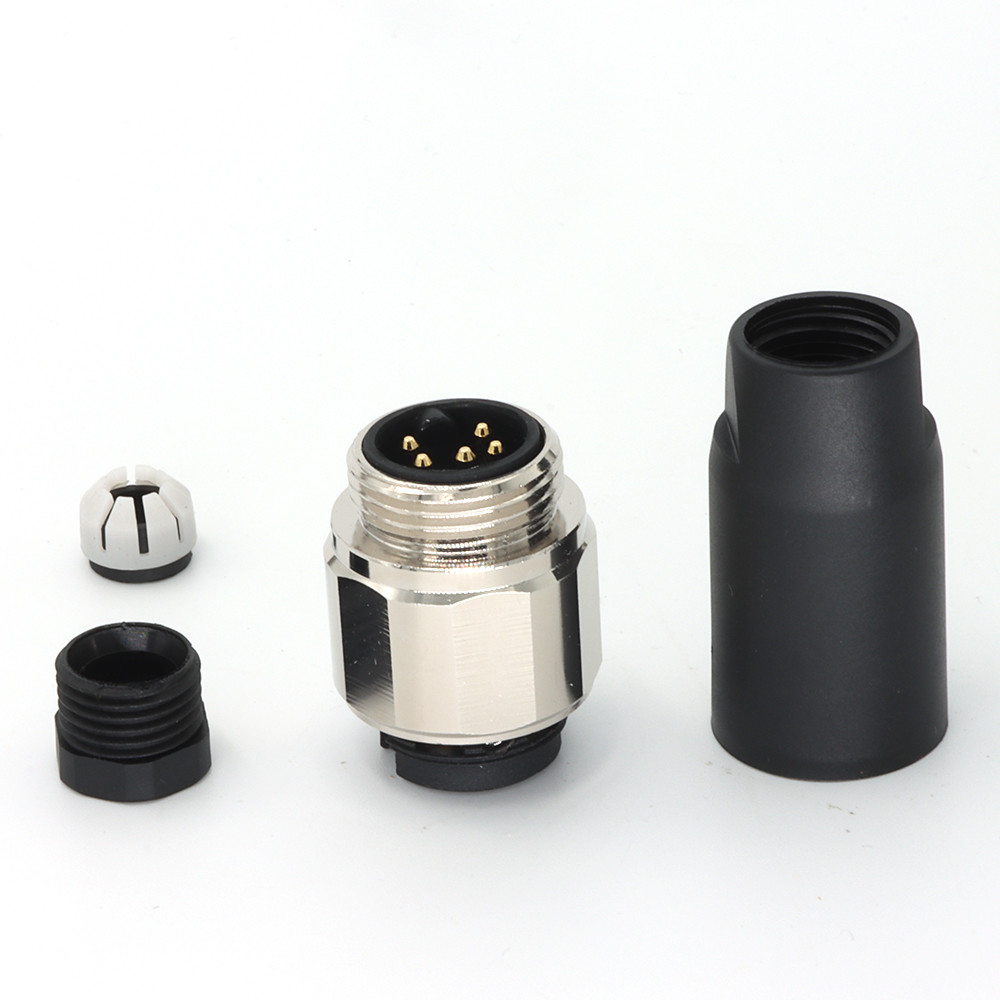

                  Field Wireable Assembly 7/8" Connector 4 Pin A Code Male 0

Technical Data

Thread type 7/8”-16UN
Contact nut material Zinc alloy, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.

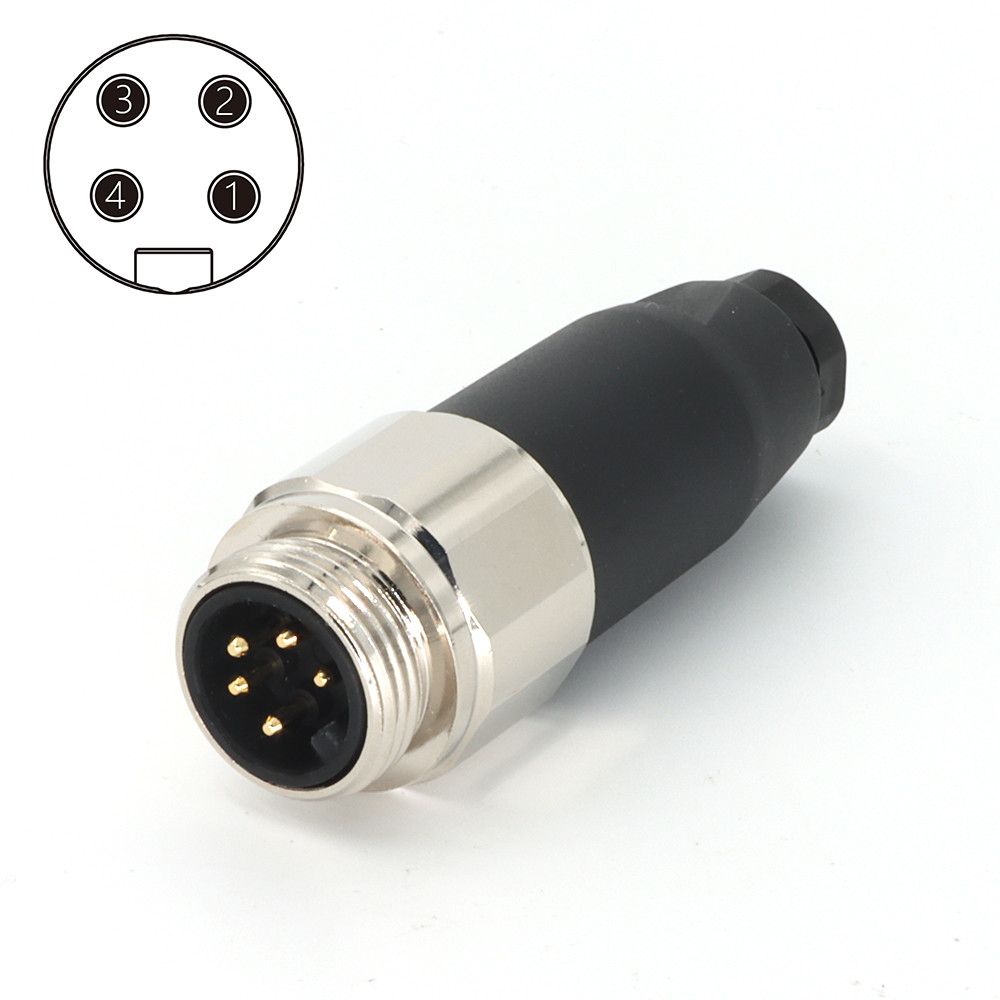

Field Wireable Assembly 7/8" Connector 4 Pin A Code Male 1 Screw connection A 8A 600V Straight 6-8mm H7804M-9/R
