M12 Pre Assembled 10M Cable Connector 3 Pin IP67 Straight PVC Black Unshielded
  • Name
  • Name

M12 Pre Assembled 10M Cable Connector 3 Pin IP67 Straight PVC Black Unshielded

Brand Name: KRONZ
Model Number: M1203F-10/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
M12 Connector With Molded Cable
Type:
Contact
IP Rate:
IP67
Endurance(shell):
>100 Cycles
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Shielded:
No
Supply Ability:
100000 pieces per month
Highlight:

10M Cable Connector 3 Pin

,

Cable Connector 3 Pin IP67

,

M12 Cable Connector 3 Pin

Product Description
M12 Pre Assembled 10M Cable Connector 3 Pin IP67 Straight PVC Black Unshielded
Product Overview

M12 Connector with Molded Cable designed for reliable performance in demanding industrial environments.


Key Specifications
Attribute Value
Type Contact
IP Rating IP67
Endurance (shell) >100 cycles
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Ambient temperature -25~+85℃
Shielded No

Product Description

This M12 Connector features a pre-assembled 10 meter cable with 3-pin configuration, designed for industrial applications requiring IP67 protection. The straight PVC black unshielded construction ensures durability in harsh conditions.

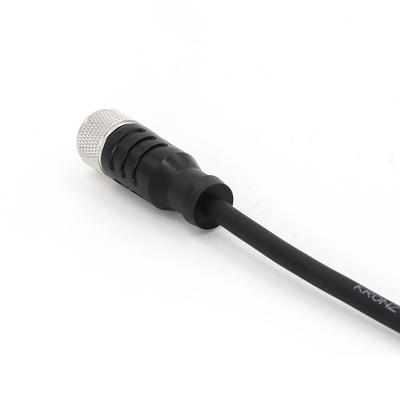

M12 Pre Assembled 10M Cable Connector 3 Pin IP67 Straight PVC Black Unshielded 0
Technical Specifications
Standard: IEC 61076-2-101
Contact nut material: Brass, nickel-plated
Contact surface material: Brass, gold-plated
Contact carrier material: PA, black
Housing material: TPU, black
Seal material: FPM/FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Pollution degree: 3
Mating cycles: >100
Degree of protection: IP67
Pin Configuration & Model Variants

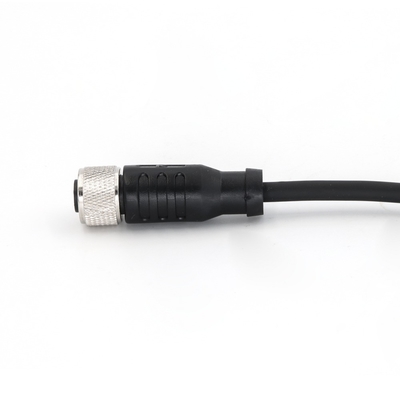

M12 Pre Assembled 10M Cable Connector 3 Pin IP67 Straight PVC Black Unshielded 1
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
1=BN, 3=BU, 4=BK 1=BN
3=BU
4=BK		 A 4A 250V 3×0.34 (3×22AWG) PVC, black Straight 2M M1203F-2/P00R
              5M M1203F-5/P00R
              10M M1203F-10/P00R
