Unshielded M12 Connector Male With Molded Cable Straight PVC Assembly 4 Pin
  • Name
  • Name

Unshielded M12 Connector Male With Molded Cable Straight PVC Assembly 4 Pin

Brand Name: KRONZ
Model Number: M1204M-3/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M12 Field-wireable Assembly Connector
Connection Method:
Screw Connection
Material:
Brass,nickle-plated
Degree Of Protection:
IP67
Pollution Degree:
3
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Supply Ability:
100000 pieces per month
Highlight:

Unshielded M12 Connector Male

,

M12 Connector Male 4 Pin

,

Straight PVC Assembly M12 Connector

Product Description
Unshielded M12 Connector Male With Molded Cable Straight PVC Assembly 4 Pin
Product Attributes
Attribute Value
Product name M12 Field-wireable Assembly Connector
Connection method Screw connection
Material Brass, nickle-plated
Degree of protection IP67
Pollution degree 3
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Ambient temperature -25~+85℃
Product Description

The M12 connector is available with different pin configurations (2 to 12 pins) to support a range of applications, including power supply, signal transmission, and data communication.

Unshielded M12 Connector Male With Molded Cable Straight PVC Assembly 4 Pin 0
Technical Specifications
Standard: IEC 61076-2-101
Contact nut material: Brass, nickle-plated
Contact surface material: Brass, gold-plated
Contact carrier material: PA, black
Housing material: TPU, black
Seal material: FPM/FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Pollution degree: 3
Ambient temperature: -25~+85℃
Mating cycles: >100
Degree of protection: IP67

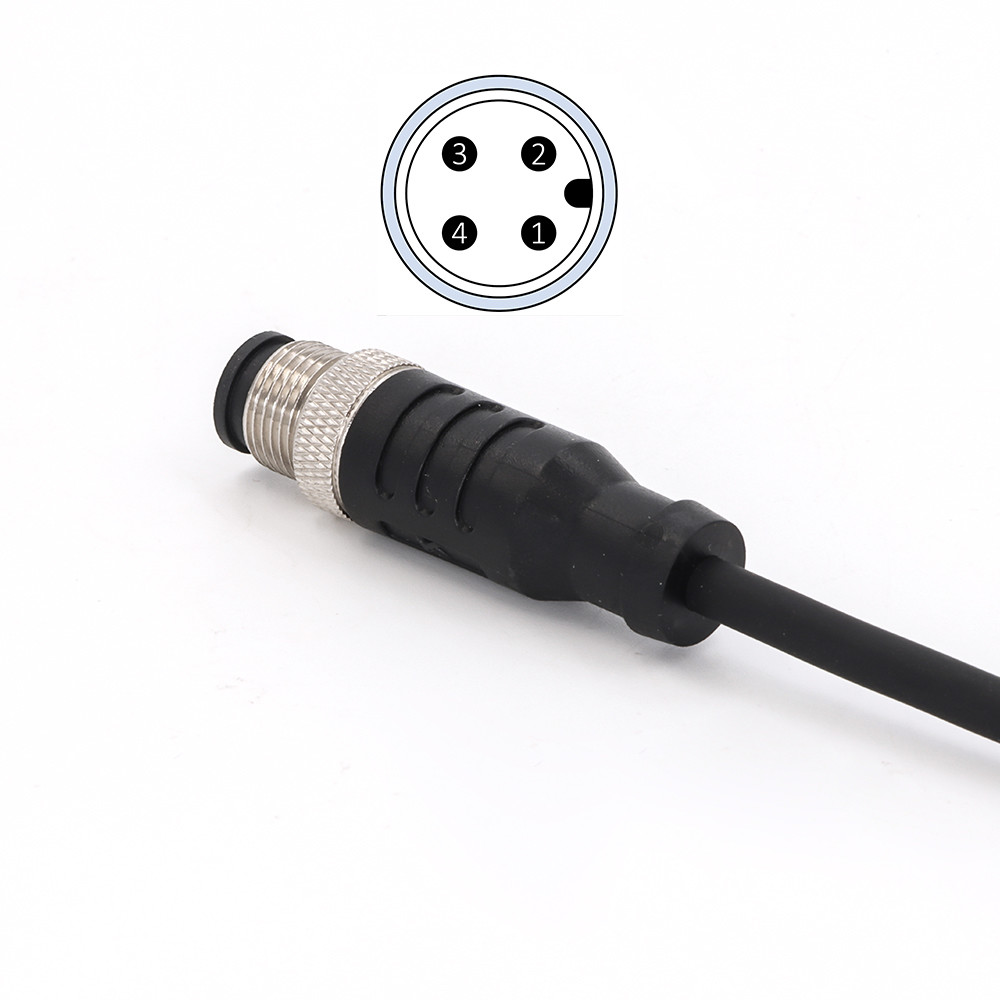

Pin Configuration
Unshielded M12 Connector Male With Molded Cable Straight PVC Assembly 4 Pin 1
Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
1=BN 2=WH
3=BU
4=BK		 Screw connection A 4A 250V 4×0.34 (4×22AWG)
PVC, black		 Straight 3M M1204M-3/P00R
