Industrial Unmanaged DIN Rail Network Switch 8 Port 100Mbit/S

Brand Name:	KRONZ
Model Number:	UE-08TC
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Transmission Rate:

10/100Mbps

Communication Mode:

Full-Duplex & Half-Duplex

Condition:

Ethernet Port:

8*RJ45 Ports

Power Voltage:

DC12-52V

Packet Buffer:

512 Kbit

MAC Address Table:

Power Consumption:

Supply Ability:

100000 pieces per month

Highlight:

Unmanaged DIN Rail Network Switch

DIN Rail Network Switch 8 Port

DIN Rail Network Switch 100Mbit/S

Product Description

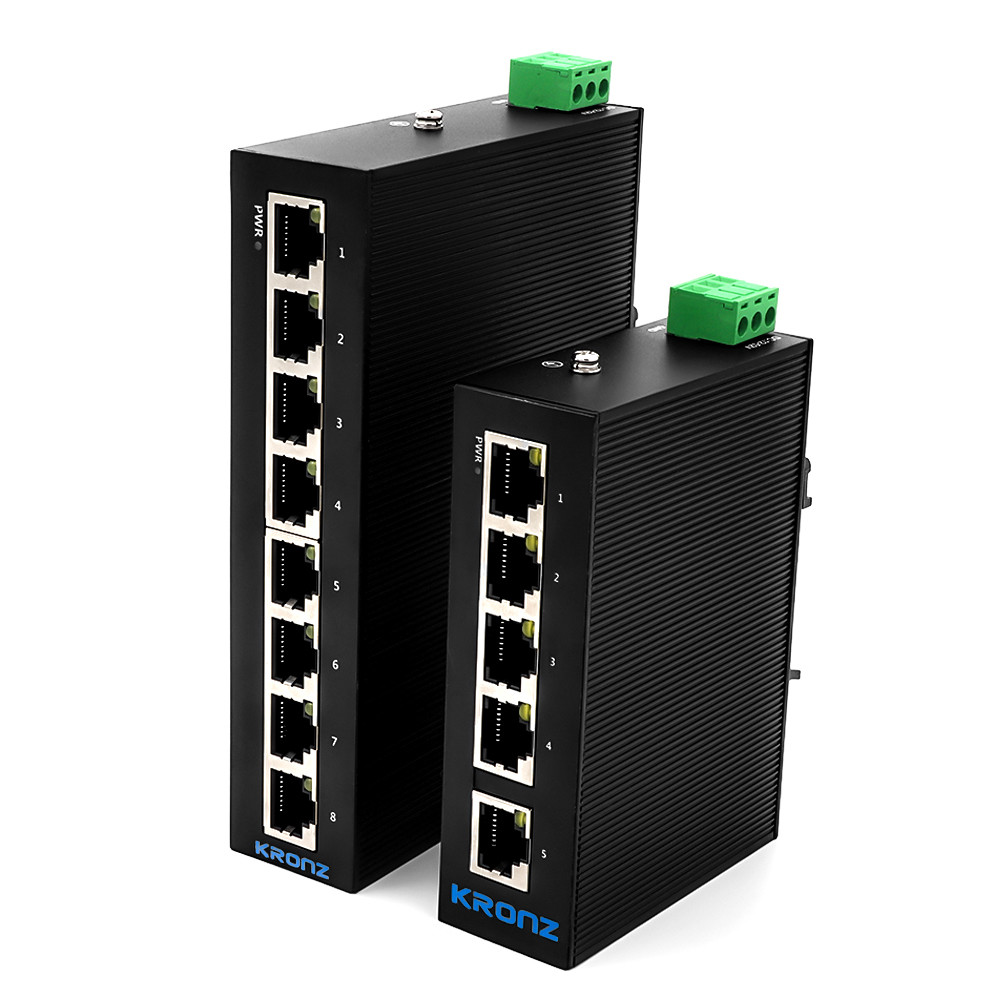

Industrial Unmanaged DIN Rail Network Switch 8 Port 100Mbit/S

Product Attributes

Attribute	Value
Transmission Rate	10/100Mbps
Communication Mode	Full-Duplex & Half-Duplex
Condition	New
Ethernet port	8*RJ45 Ports
Power voltage	DC12-52V
Packet buffer	512 kbit
MAC address table	1 K
Power consumption	< 3w

Product Description

Industrial Ethernet Switches 8-Port Unmanaged 100Mbit/s DIN Rail Network Switch

The UE-08TC is an unmanaged industrial Ethernet switch featuring 8-port 10BaseT/100BaseTX connectivity. Designed for harsh environments, it operates in temperatures from -30°C to 75°C and features DIN rail mounting, IP40 protection, and LED indicators for reliable plug-and-play network solutions.

Key Features

Reliable data transmission with long working life
Auto-Negotiation function for automatic transfer speed adjustment
Half Duplex/Full Duplex with Auto-crossing capability
Store-and-forward switching mode supporting multiple protocols
High reliability with MTBF: 300,000 hours
DC 12-52V power input with reverse-polarity protection
Lightning surge impact protection: 5000A (8/20μs)

Technical Specifications

Port description: 8 x RJ45 female 8 pin, 8-port 10/100Base-T(X)

Network protocol: IEEE 802.3 10BaseT, IEEE 802.3u 100Base TX/FX, IEEE 802.3x - flow control

Environmental Conditions

Operating temperature: -30~75°C (-22~167°F)

Storage temperature: -40~75°C (-40~167°F)

Relative humidity: 5% ~ 95% (no condensation)

Power Specifications

Input voltage: DC12-52V

Connection terminal: Removable screw terminals block

Protection: Overload-current and reverse-polarity protection

Mechanical Characteristics

Housing: Metal

Protection rating: IP40

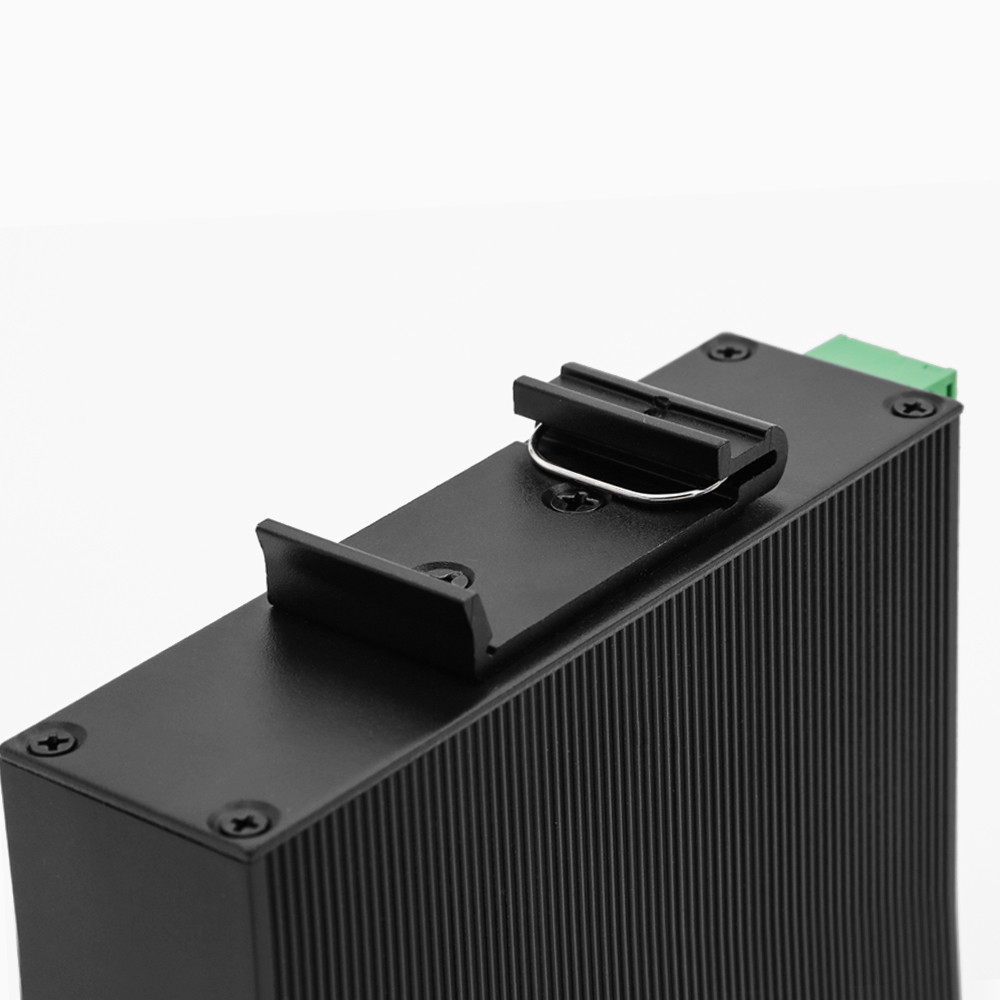

Mounting: DIN-rail, wall

Cooling method: Natural cooling, fanless

Weight: 0.36Kg

Size: 141x 89x 43mm (L x W x H)

Standards Compliance

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: IEC(EN)61000-4-2 to IEC(EN)61000-4-16, Shock, Freefall, Vibration

Performance

Packet buffer memory: 512 kbit

MAC address: 1K

Power consumption: < 3w

Forwarding mode: Store-and-forward

LEDs: Power indicator (PWR), Interface link status

Mechanical Dimension Drawing
