Name: 8 Port Industrial Ethernet Switches Full Duplex Half Duplex 100mbps
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: UES-08TY
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Communication Mode: Full-Duplex & Half-Duplex

Ports: 8

Transmission Rate: 10/100Mbps

Function: POE

Switch Capacity: 100mbps

Condition: New

Ethernet Port: 8*RJ45 Ports

Power Voltage: DC12-52V

Highlight:

8 Port Industrial Ethernet Switches 100mbps

Full Duplex Industrial Ethernet Switches

Half Duplex Industrial Ethernet Switches

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: UES-08TY

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Paper box packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

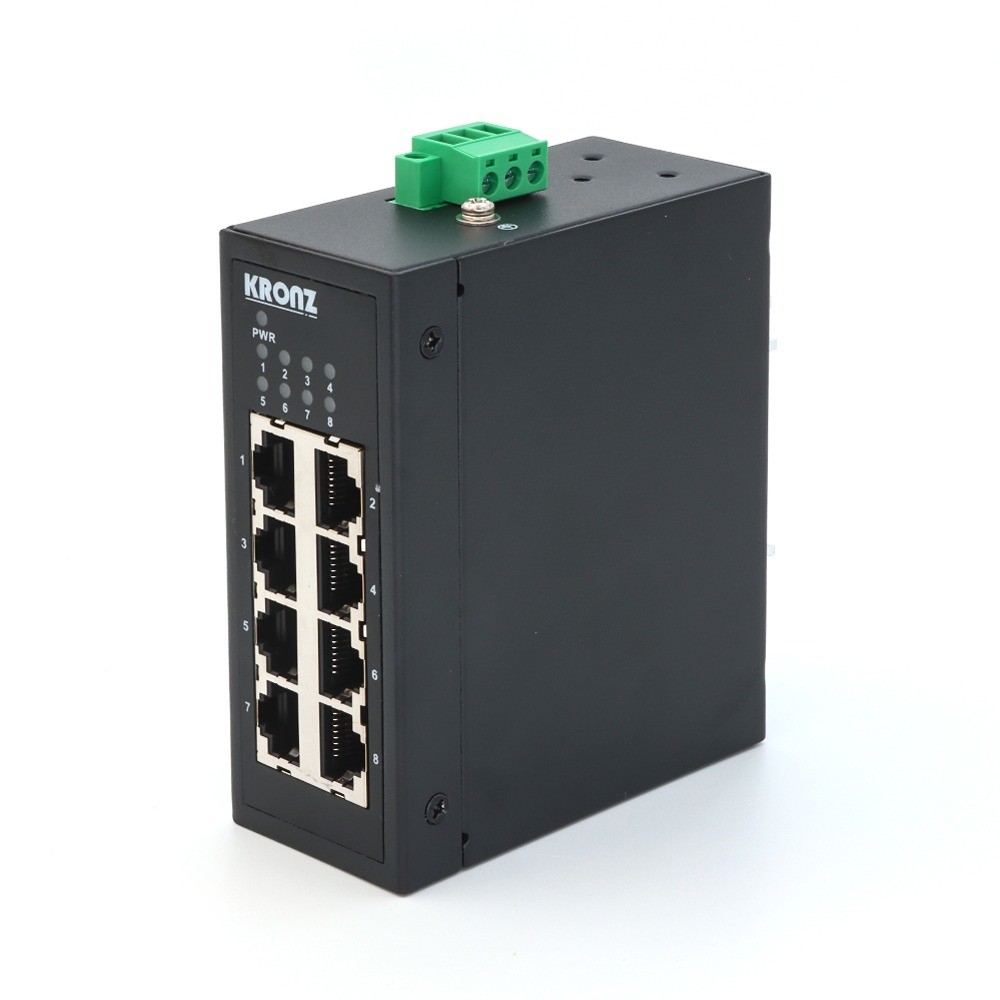

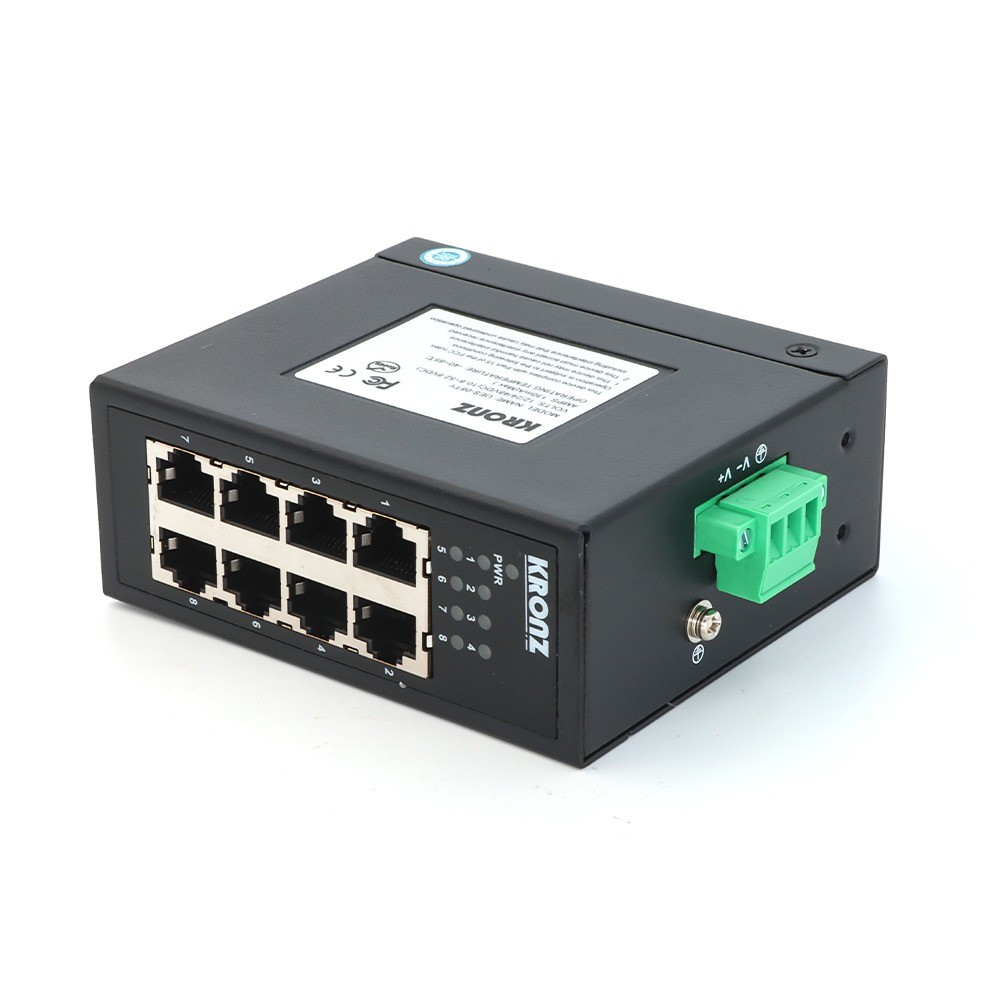

8 Port Industrial Ethernet Switches Full Duplex Half Duplex 100mbps

Product Description

Industrial Ethernet Switches Full-Duplex Half-Duplex Communication 8 Port 100mbps

Product Description

UES-08TY is an unmanaged industrial Ethernet switch, supporting 8-port 10BaseT/100BaseTX . The UE-08TC switch supports a wide
operating temperature range from -40°C to 85°C can satisfy most of various harsh environments, and can be installed in control cabinets in
a space-saving way. Features such as DIN rail mounting, wide temperature operation, IP40 protection rating, and LED indicators make the
UES-08TY a plug-and-play device, providing reliable and convenient solutions for customers in their network needs.

Product Feature:

■ Ensure reliable data transmission and long working life

■ Transfer speed automatically adjustable via Auto-Negotiation function

■ Half Duplex/Full Duplex,Auto-crossing

■ Store-and-forward switching mode,supporting multiple protocols

■ High quality and reliability, MTBF:300,000 hours

■ Din rail with IP40 metal mechanism

Technical Data

Products description	8-port unmanaged Industrial-grade Ethernet switch
Port description	8 x RJ45 female 8 pin,8-port 10/100Base-T(X) MDI/MDI-X auto-crossover,auto-negotiation
Network protocol	IEEE 802.3 10BaseT IEEE 802.3u 100Base TX/FX IEEE 802.3x - flow control
Environmental conditions	Operating temperature	-40~85°C(-40~185°F)
	Storage temperature	-40~75°C(-40~167°F)
	Relative humidity	5% ～ 95%( no condensation)
	MTBF	300,000 hours
Power	Input voltage	DC12-52V
	Connection terminal	Removable screw terminals block
	Overload-current	Present
	Reverse-polarity protection	Present
Mechanical characteristics	Housing	Metal
	Protection rating	IP40
	Mounting	DIN-rail,wall
	Cooling method	Natural cooling, fanless
	Weight	0.58Kg
	Size	100x 85x 40.2mm (L x W x H)
Standards:	EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A EMS :IEC(EN)61000-4-2(ESD) :±8kV contact discharge, ±12kV airdischarge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Data line : ±4kV CM//±2kV DM ; IEC(EN)61000-4-5(Surge) : Data line : ±4kV CM//±2kV DM ; IEC(EN)61000-4-6(Conducted Immunity) :3V(10kHz~150kHz), 10V(150kHz~80MHz) IEC(EN)61000-4-16(Common Mode Conducted ) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Performance	Packet buffer menory	448
	Forwarding rate	148810pps
	Forwarding mode	store-and-forward
	MAC address	2K
	Bandwidth	1.6G
LED indicator	Power indicator	PWR
LED indicator	Interface	Link status

Mechanical Dimension Drawing
