Name: Unmanaged Din Rail Mount Ethernet Switch 10/100M Bit/S 16 Port
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: UE-16TC/L
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Transmission Rate: 10/100Mbps

Communication Mode: Full-Duplex & Half-Duplex

Ethernet Port: 16*RJ45 Ports

Power Voltage: DC12-52V

Packet Buffer: 4 M

MAC Address Table: 2 K

Power Indicator: PWR

Warranty: 3 Years

Highlight:

Unmanaged Din Rail Mount Ethernet Switch

Din Rail Mount Ethernet Switch 10MBit/S

Unmanaged Ethernet Switch 16 Port

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: UE-16TC/L

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Paper box packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

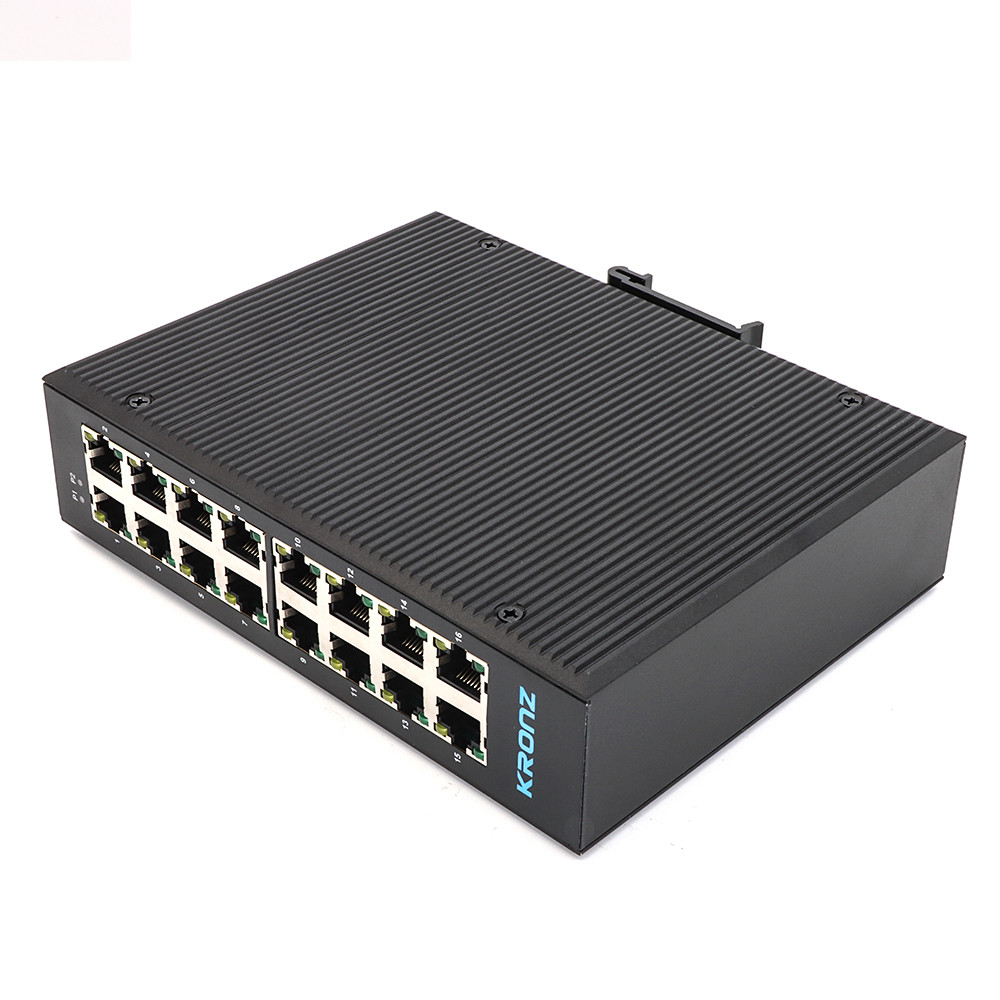

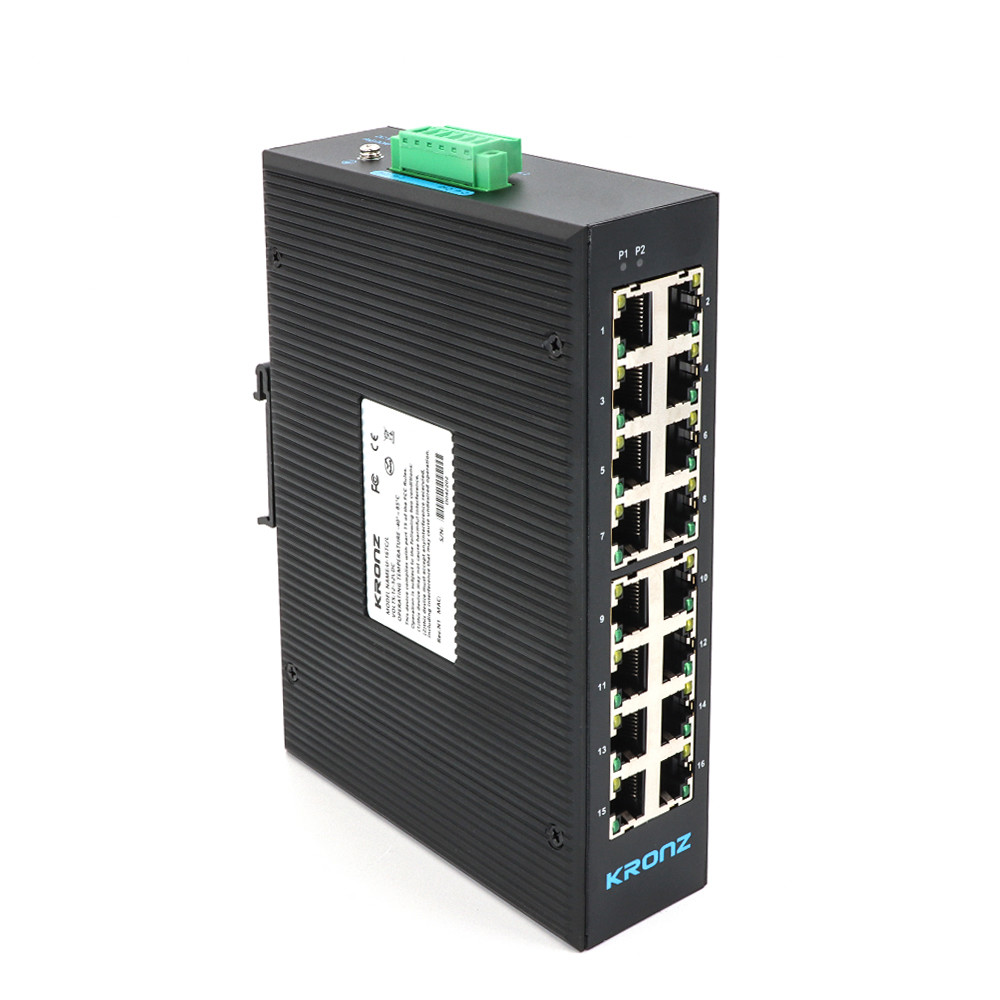

Unmanaged Din Rail Mount Ethernet Switch 10/100M Bit/S 16 Port

Product Description

Industrial Ethernet Switches10/100M Bit/s Unmanaged DIN-rail Mounting 16 Port

Product Description

UE-16TC/L is an unmanaged industrial Ethernet switch, supporting 16-port 10BaseT/100BaseTX . The UE-16TC/L switch supports a wide
operating temperature range from -40°C to 85°C can satisfy most of various harsh environments, and can be installed in control cabinets in
a space-saving way. Features such as DIN rail mounting, wide temperature operation, IP40 protection rating, and LED indicators make the
UE-16TC/L a plug-and-play device, providing reliable and convenient solutions for customers in their network needs.

Product Feature:

■ Ensure reliable data transmission and long working life
■ Transfer speed automatically adjustable via Auto-Negotiation function
■ Half Duplex/Full Duplex,Auto-crossing
■ Store-and-forward switching mode,supporting multiple protocols
■ High quality and reliability, MTBF:300,000 hours
■ Redundant 12-52VDC power input,with reverse-polarity protection
■ Din rail with IP40 metal mechanism
■ Lightning surge impact protection: 5000A (8/20μs)

Technical Data

Products description	16-port unmanaged Industrial Ethernet Switch
Port description	16 x RJ45 female 8 pin,8-port 10/100Base-T(X) MDI/MDI-X auto-crossover,auto-negotiation
Network protocol	IEEE 802.3/IEEE802.3i 10BaseT IEEE 802.3u 100Base TX/FX IEEE 802.3x - flow control
Environmental conditions	Operating temperature	-40~85°C(-40~185°F)
	Storage temperature	-40~85°C(-40~185°F)
	Relative humidity	5% ～ 95%( no condensation)
	MTBF	300,000 hours
Power	Input voltage	DC 12~52V
	Connection terminal	Removable screw terminals block
	Overload-current	Present
	Reverse-polarity protection	Present
Mechanical characteristics	Housing	Metal
	Protection rating	IP40
	Mounting	DIN-rail,wall
	Cooling	Natural-cooling ,fanless
	Weight	1Kg
	Size	176x 136x 45.5mm (L x W x H)
Standards:	EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) :±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Data line : ±4kV CM//±2kV DM ; IEC(EN)61000-4-5(Surge) : Data line : ±4kV CM//±2kV DM ; IEC(EN)61000-4-6(Conducted Immunity) : 3V(10kHz~150kHz), 10V(150kHz~80MHz) IEC(EN)61000-4-16(Common Mode Conducted ) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Performance	Packet buffer memory	4Mbit
	Power consumption	＜ 10W
	Forwarding mode	Store-and-forward
	MAC address	2K
	Bandwidth	3.2G
	Latency	＜ 10μs
LEDs	Power indicator	PWR
LEDs	Interface	Link status

Mechanical Dimension Drawing

Unmanaged Din Rail Mount Ethernet Switch 10/100M Bit/S 16 Port 0
