Name: Unmanaged Networks Industrial Ethernet Switches 5 Port 10/100M Bit/S
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: UE-05TC
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Transmission Rate: 10/100Mbps

Function: POE

Switch Capacity: 100mbps

Ethernet Port: 5*RJ45 Ports

Power Voltage: DC12-52V

Packet Buffer: 512 Kbit

Weight: 0.36 Kg

Highlight:

Unmanaged Networks Industrial Ethernet Switches

5 Port Industrial Ethernet Switches

Industrial Ethernet Switches 100M Bit/S

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: UE-05TC

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Paper box packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

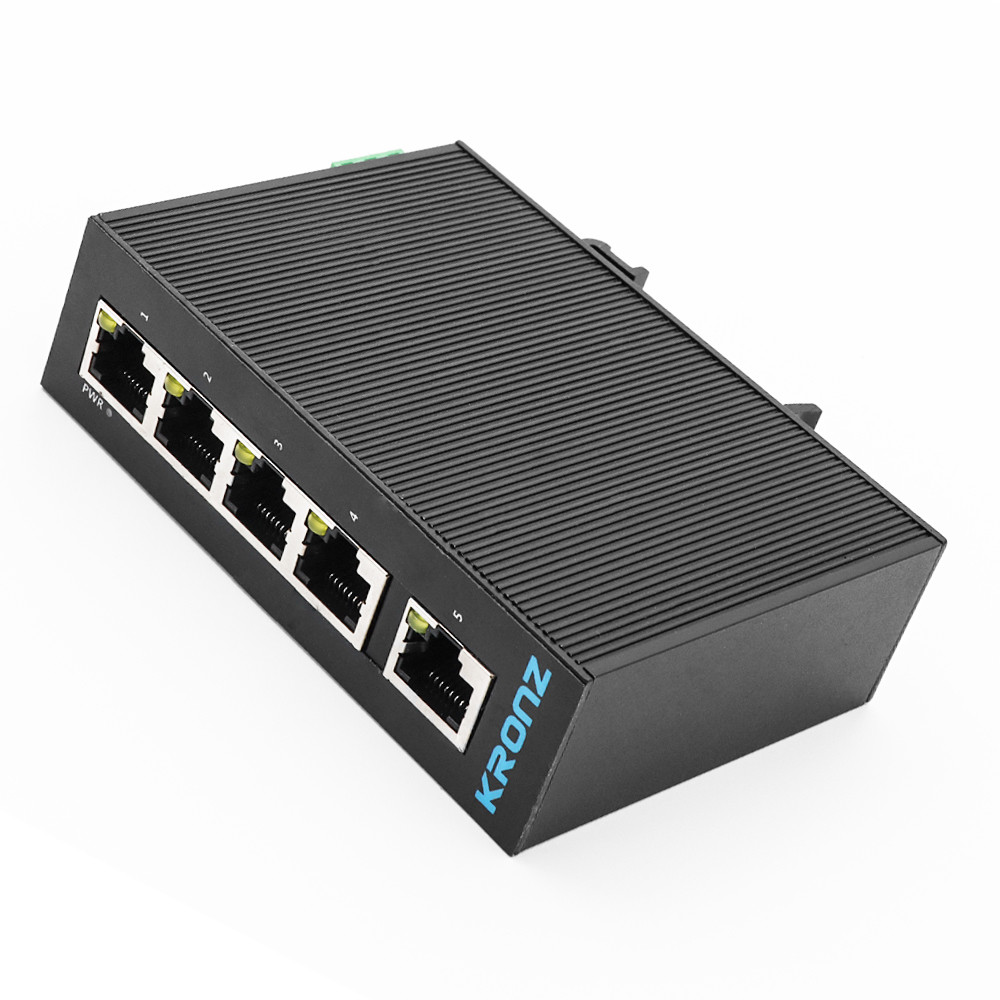

Unmanaged Networks Industrial Ethernet Switches 5 Port 10/100M Bit/S

Product Description

Industrial Ethernet Switches 5 Port 10/100M bit/s Unmanaged Networks

Product Feature:

■ Ensure reliable data transmission and long working life

■ Support full-duplex or half-duplex mode with automatic negotiation capability

■ Network port supports fully automatic cross-identification

■ Built-in store-and-forward mechanism, supporting multiple protocols

■ Conforms to industrial-grade operating standards, with an average failure-free operation of more than 300,000 hours

■ Working power supply: DC 12-52V, with reverse connection protection

■ Lightning surge impact protection (power supply): 5000A (8/20μs)

Technical Data

Products description	5 gigabit unmanaged Industrial-grade Ethernet switch
Port description	5 x RJ45 port, 1 x 10/100Base-TX up-link electrical port, 4 x 10Base-T/100Base-TX down-link electrical port.
Network protocol	IEEE 802.3 applicable to 10BaseT IEEE 802.3u applicable to 100BaseT(X) and 100BaseFX IEEE 802.3x applicable to Flow Control
Environmental conditions	Ambient temperature	-30 ～ 75 ° C(-30 ～ 167 ° F)
	Storage temperature	-40 ～ 75 ° C(-40 ～ 167 ° F)
	Relative humidity	5% ～ 95%( no condensation)
Power	Input voltage	DC12-52V
	Connection terminals	Phoenix terminals
	Supports built-in over-current protection of 4.0A
	Supports reverse polarity protection
Mechanical characteristics	Shell	IP40 protection level, metal shell

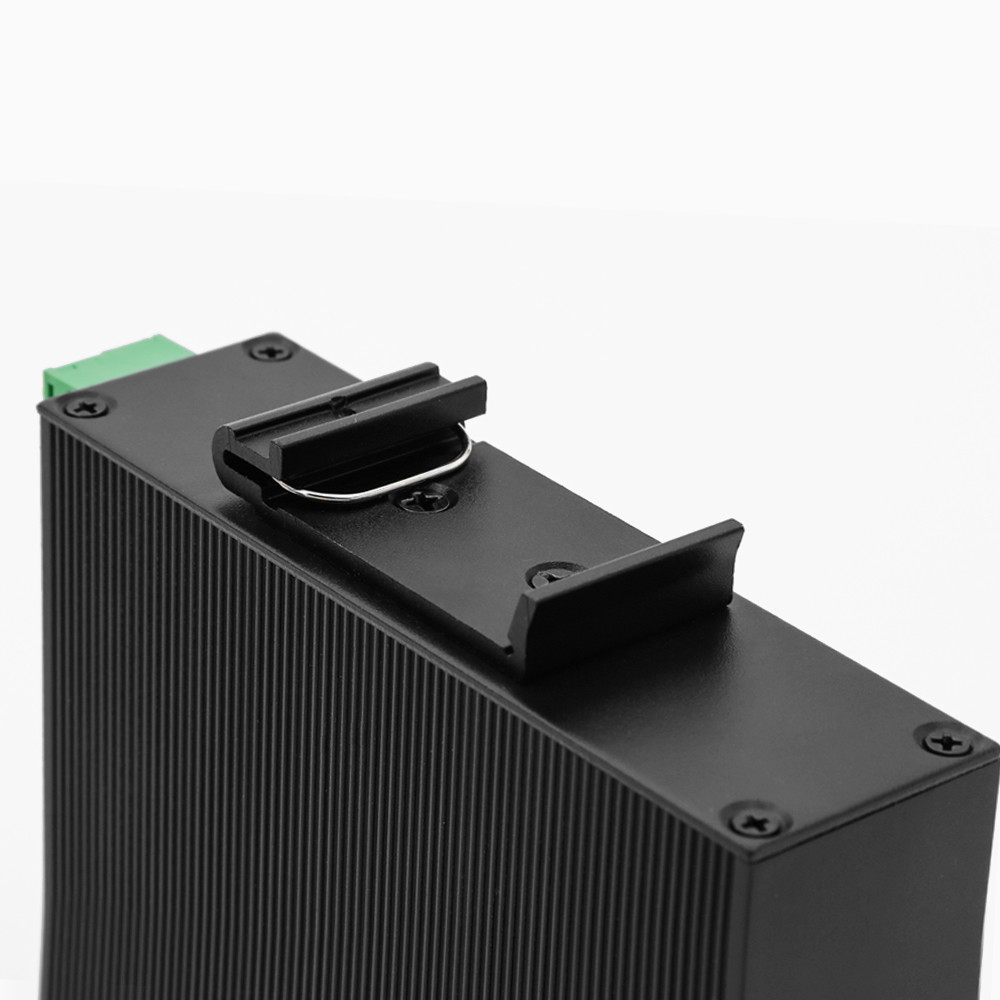

	Installation	DIN rail mounting, wall-mounted
	Cooling method	Natural cooling, fanless
	Weight	0.36Kg
	Size	105x 74x 30mm (L x W x H)
Standards:	EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) :±8kV contact discharge,±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80 ～ 1000MHz) IEC(EN)61000-4-4(EFT) : network port: ±4kV CM//±2kV DM ; IEC(EN)61000-4-5(Surge) : network port: ±4kV CM//±2kV DM ; IEC(EN)61000-4-6(Radio Frequency Conducted ) : 3V(10kHz ～ 150kHz),10V(150kH z ～ 80MHz) IEC(EN)61000-4-16(Common Mode Conducted) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock : IEC 60068-2-27 Freefall : IEC 60068-2-32 Vibration : IEC 60068-2-6
Switch attributes	Packet buffer	512 kbit
	MAC address table	1K
	Power consumption	＜ 3w
LED indicator	Power indicator	PWR
	Interface indicator	Electrical port(Link)
	Protection level	IP40
	Mean time between failures	300,000 hours
	Warranty	3 years

Mechanical Dimension Drawing
