Name: RJ45 PoE Industrial Ethernet Switches 8 Port Unmanaged
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: UES-08TH
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Input Voltage: DC12-52V/DC 48-52V(PoE)

Housing: Metal

Relative Humidity: 5%~95%, Non-condensing

MTBF: 300,000 Hours

Cooling: Natural-cooling,fanless

Operating Temperature: -40~75 °C(-40~167 °F)

Storage Temperature: -40~75 °C(-40~167 °F)

Weight: 0.64kg

Highlight:

RJ45 PoE Industrial Ethernet Switches

Unmanaged PoE Industrial Ethernet Switches

PoE Industrial Ethernet Switches 8 Port

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: UES-08TH

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Paper box packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

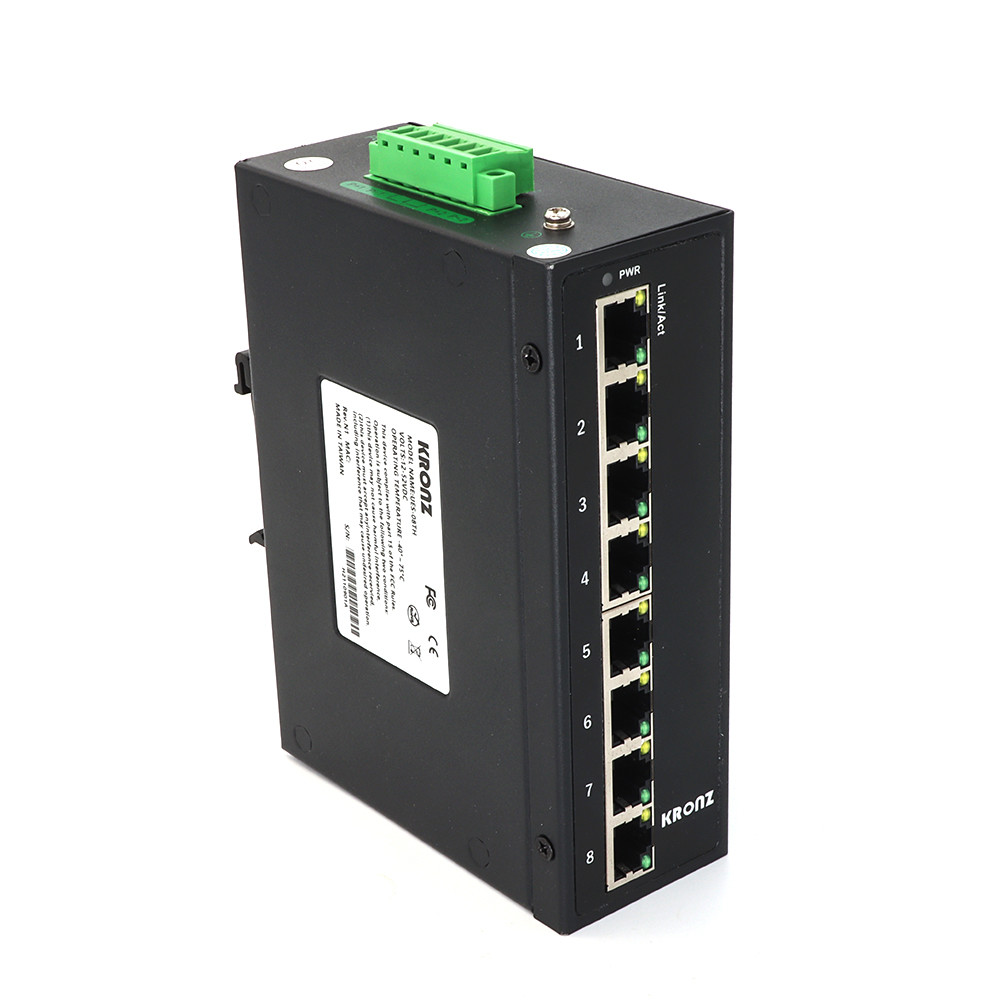

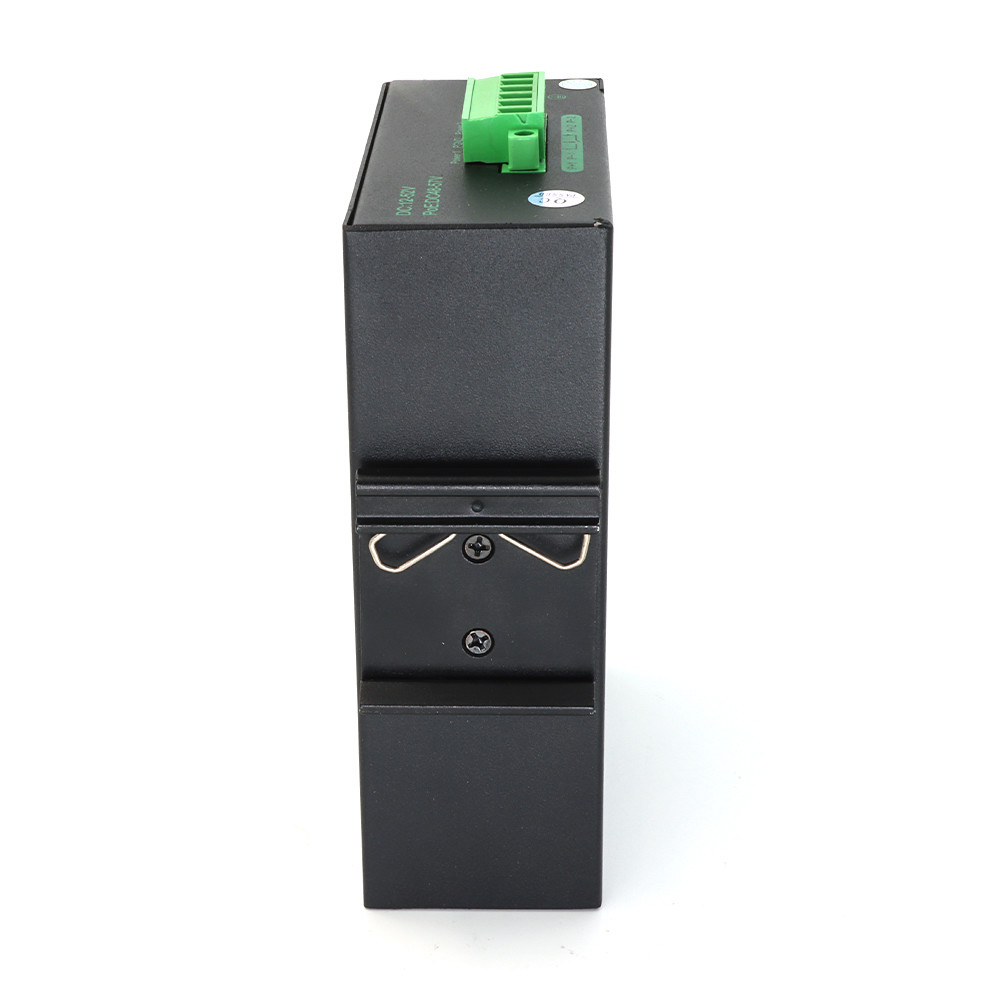

RJ45 PoE Industrial Ethernet Switches 8 Port Unmanaged

Product Description

Industrial Ethernet Switches PoE 8-Port RJ4510/100/1000Base-TX Unmanaged DIN-rail

Product Description

The UES-08 series industrial ethernet switch support supports 12~52VDC redundant power input and is secured with a double protection mechanism: power polarity reverse protection and an overload current fuse. These unmanaged switches supports temperature from -40°C to 75°C, with exceptional ruggedness to adapt to various harsh environments, and can be installed in control cabinets in a space-saving way. Features such as DIN rail mounting, wide temperature operation, IP40 protection rating, and LED indicators make it a plug-and-play device, providing reliable and convenient solutions for customers in their network needs.

Product Feature:

■ Ensure reliable data transmission and long working life
■ Transfer speed automatically adjustable via Auto-Negotiation function
■ Half Duplex/Full Duplex,Auto-crossing
■ Store-and-forward switching mode,supporting multiple protocols
■ High quality and reliability, MTBF:300,000 hours
■ Redundant 12-52VDC power input,with reverse-polarity protection
■ Din rail with IP40 metal mechanism
■ Lightning surge impact protection: 5000A (8/20μs)

Technical Data

Products description	8-port unmanaged industrial ethernet switch with PoE(Optional)
Port description	8 x RJ45 female 8 pin,8-port 10/100Base-T(X) MDI/MDI-X auto-crossover,auto-negotiation
Network protocol	IEEE 802.3 10BaseT IEEE 802.3u 100Base TX/FX IEEE 802.3x - flow control
Environmental conditions	Operating temperature	-40~75°C(-40~167°F)
	Storage temperature	-40~75°C(-40~167°F)
	Relative humidity	5% ～ 95%( no condensation)
	MTBF	300,000 hours
Power	Input voltage	DC12-52V/DC 48-52V(PoE)
	Connection terminal	Removable screw terminals block
	Redundant power supply	Present
	Overload-current	Present
	Reverse-polarity protection	Present
Mechanical characteristics	Housing	Metal
	Protection rating	IP40
	Mounting	DIN-rail,wall
	Cooling method	Natural cooling, fanless
	Weight	0.64Kg
	Size	143.7x 103x 47.5mm (L x W x H)
Standards:	EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD) :±8kV contact discharge, ±12kV air discharge IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT) : Data line : ±4kV CM//±2kV DM ; IEC(EN)61000-4-5(Surge) : Data line : ±4kV CM//±2kV DM ; IEC(EN)61000-4-6(Conducted Immunity) : 3V(10kHz~150kHz), 10V(150kHz~80MHz) IEC(EN)61000-4-16(Common Mode Conducted ) : 30V cont. 300V,1s IEC(EN )61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6
PoE Configuration	PoE+Ports: 8FE PoE, 802.3af,802.3at, auto-negotiation
	PoE Max Power Per Port :15.4W (IEEE 802.3af)
	PoE Max Power Per Port : 30W (IEEE 802.3at)
Performance	Packet buffer menory	1Mbit
	MAC address	2K
	Power consumption	5W
	Bandwidth	1.6G
	Forwarding rate	1.488Mpps
	Latency	＜ 10μs
	Forwarding mode	Store-and-forward
LEDs	Power indicator	PWR
LEDs	Interface	Link status

Mechanical Dimension Drawing

RJ45 PoE Industrial Ethernet Switches 8 Port Unmanaged 0
