Attribute	Value
Description	M12 Pre-assembled Connectors
Pin	8
Wire Color	1=WH 2=BN 3=GN 4=YE 5=GY 6=PK 7=BU 8=RD
Housing material	TPU, black
Voltage	30V
Wire Gauge	8×0.25 (8×24AWG) PVC, black
Cable Length	2m/5m/10m/customized
Shielded	No

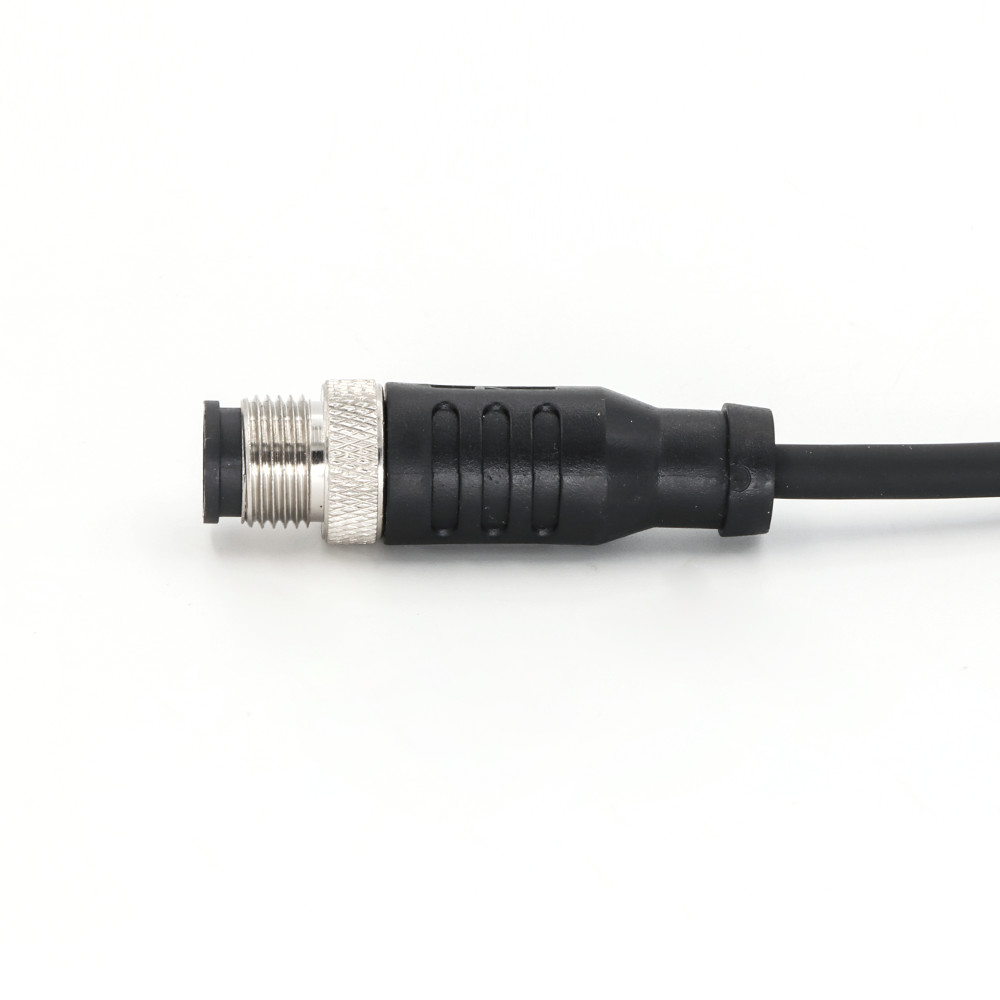

M12 8 Pin Connectors IEC 61076-2-101 Pre-assembled Cable Male Straight PVC FPM/FKM

Product Overview

A-coded M12 connectors are commonly used for sensors and actuators. They typically feature 3 to 12 pins and are used for signal and low-power applications.

Technical Specifications

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Configuration

Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1=WH 2=BN 3=GN 4=YE 5=GY 6=PK 7=BU 8=RD	A	2A	30V	8×0.25 (8×24AWG) PVC, black	Straight	2M	M1208M-2/P00R
						5M	M1208M-5/P00R
						10M	M1208M-10/P00R
