7/8"-16UN Circular 7/8" Connector With Pre Molded Cable IP67 4 Pin Female Straight

50 pieces
MOQ
Negotiable
Price
7/8"-16UN Circular 7/8" Connector With Pre Molded Cable IP67 4 Pin Female Straight
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 7/8"-16UN Connector
Wire Gauge: 4×0.15 (4×16AWG) PVC, Black
Cable Length: 2M/5M/10M/Customized
Voltage: 600V
Rated Current: 8A
Wire Color: 1=BK 2=BU 3=BN 4=WH
Highlight:

Circular 7/8" Connector

,

IP67 Circular 7/8" Connector

,

7/8"-16UN 4 Pin Female Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M7804F-2/P00R
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
7/8"-16UN Circular 7/8" Connector With Pre Molded Cable IP67 4 Pin Female Straight
Product Specifications
Attribute Value
Product Name 7/8"-16UN Connector
Wire Gauge 4×0.15 (4×16AWG) PVC, black
Cable Length 2M/5M/10M/Customized
Voltage 600V
Rated Current 8A
Wire Color 1=BK 2=BU 3=BN 4=WH
Product Overview

The 7/8"-16UN Circular Connector with Pre-molded Cable (IP67 rated, 4 Pin Female Straight) enables quick connection and disassembly between equipment in automated production lines. This facilitates efficient maintenance and equipment replacement, significantly reducing production line downtime.

Key Applications
  • Enables rapid equipment replacement in manufacturing processes
  • Minimizes production line downtime during maintenance
  • Ideal for automotive assembly lines and similar industrial applications
Technical Specifications
Parameter Specification
Thread type 7/8"-16UN
Contact nut material Zinc alloy, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

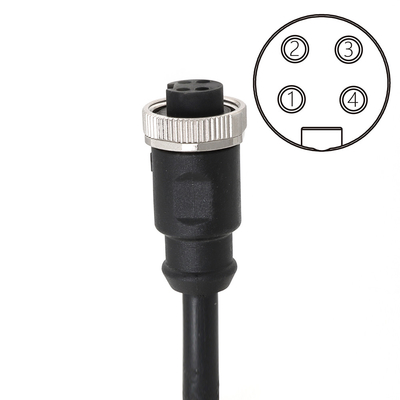

Pin Configuration
7/8"-16UN Circular 7/8" Connector With Pre Molded Cable IP67 4 Pin Female Straight 0
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
See diagram 1=BK
2=BU
3=BN
4=WH		 A 8A 600V 4×0.15
(4×16AWG)
PVC, black		 Straight 2M M7804F-2/P00R
1=BK
2=BU
3=BN
4=WH		 A 8A 600V 4×0.15
(4×16AWG)
PVC, black		 Straight 5M M7804F-5/P00R
1=BK
2=BU
3=BN
4=WH		 A 8A 600V 4×0.15
(4×16AWG)
PVC, black		 Straight 10M M7804F-10/P00R
* Cable length: 2/5/10m, other cable lengths are available on request! Freely selectable cable material (P00R: black PVC, P01R: black PUR)
