M12 Female Connectors With Molded Cable Angled 3 Pin IP67 Black Color
  • Name
  • Name

M12 Female Connectors With Molded Cable Angled 3 Pin IP67 Black Color

Brand Name: KRONZ
Model Number: M1203FA-2/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M12 Connectors With Molded Cable
Color:
Black
Seal Material:
FPM/FKM
IP Rate:
IP67
Endurance(shell):
>100 Cycles
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Standard:
IEC 61076-2-101
Supply Ability:
100000 pieces per month
Highlight:

Angled M12 Female Connectors

,

IP67 M12 Female Connectors

,

Molded Cable M12 Female Connectors

Product Description
M12 Female Connectors With Molded Cable Angled 3 Pin IP67 Black Color
Product Attributes
Attribute Value
Product name M12 Connectors with molded cable
Color Black
Seal material FPM/FKM
IP rate IP67
Endurance(shell) >100 cycles
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Standard IEC 61076-2-101
Product Description

The M12 waterproof connector has extremely strong resistance to acids, alkalis, chemical cleaning agents, oil stains, coolants, lubricants, and emulsions. It withstands welding sparks and frequent twisting/bending, making it ideal for harsh environments in petroleum, chemical, steel, power, and automotive manufacturing applications.

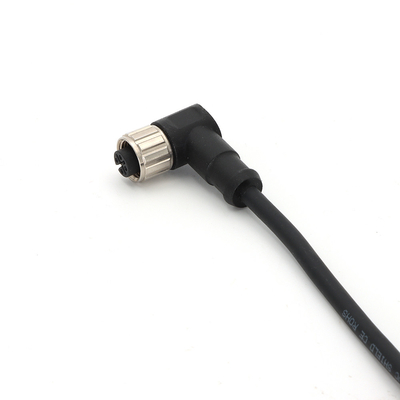

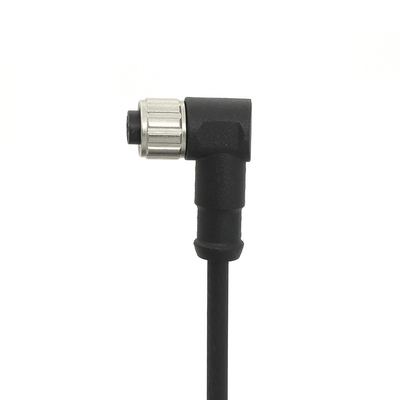

M12 Female Connector with Molded Cable
Technical Specifications
Specification Value
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration
M12 Connector Pin Configuration Diagram
Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
1=BN
3=BU
4=BK		 A 4A 250V 3×0.34 (3×22AWG) PVC, black Angled 2M M1203FA-2/P00R
            5M M1203FA-5/P00R
            10M M1203FA-10/P00R
