Angled Female M12 Connectors 4 Pin
  • Name
  • Name

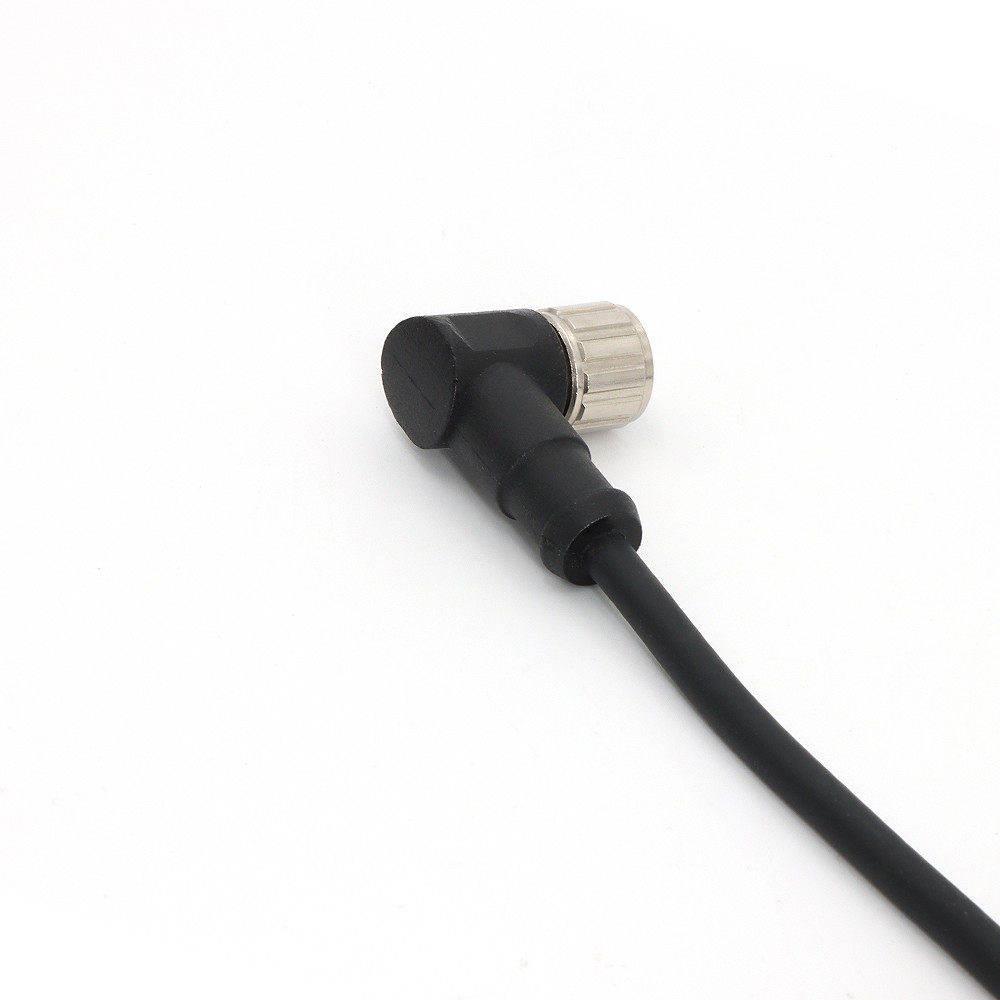

Angled Female M12 Connectors 4 Pin

Brand Name: KRONZ
Model Number: M1204FA-2/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M12 Connectors With Molded Cable
Seal Material:
FPM/FKM
IP Rate:
IP67
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Standard:
IEC 61076-2-101
Ambient Temperature:
-25~+85℃
Mating Cycles:
>100
Supply Ability:
100000 pieces per month
Highlight:

Angled Female M12 Connectors

,

Female M12 Connectors 4 Pin

,

Angled M12 4 Pin Connectors

Product Description
Angled Female M12 Connectors 4 Pin
Product Specifications
Attribute Value
Product name M12 Connectors with molded cable
Seal material FPM/FKM
IP rate IP67
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Standard IEC 61076-2-101
Ambient temperature -25~+85℃
Mating cycles >100
Product Overview

M12 Connectors with Molded Cable Female Angled 4 Pin IP67 IEC 61076-2-101

M12 wired connector featuring male and female injection molded integrated sensor design with integrated shell. The injection molding process ensures stable signal transmission with gold plating technology and threaded connection design.

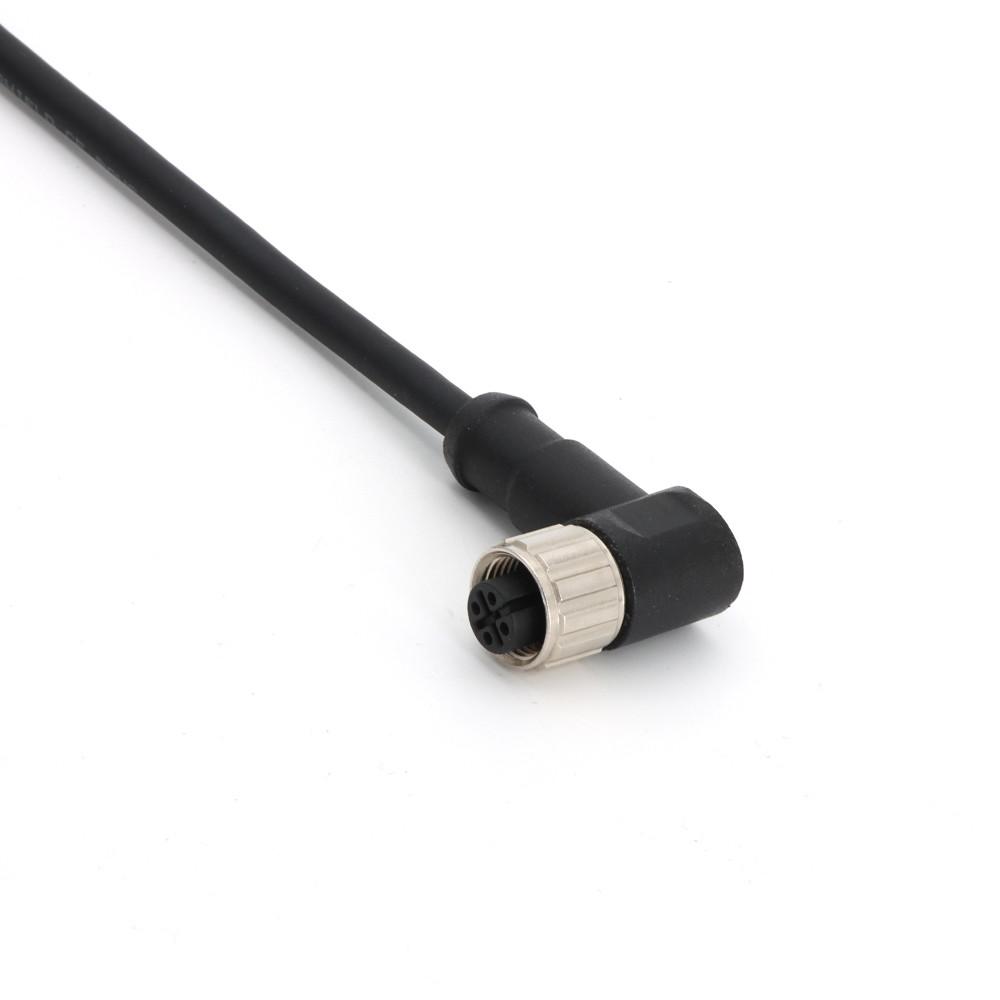

M12 Angled Female Connector 4 Pin with Molded Cable
Technical Specifications
Parameter Specification
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details
Pin Assignment Connection Method Coding Rated Current Voltage Wire Gauge Cable Outlet Length Model No.
M12 4 Pin Connector Pinout Diagram 1=BN
2=WH
3=BU
4=BK		 A 4A 250V 4×0.34
(4×22AWG)
PVC, black		 Angled 2M M1204FA-2/P00R
5M M1204FA-5/P00R
10M M1204FA-10/P00R

This M12 pre-cast on-site connector is available in standard lengths of 1M, 2M, 3M, 5M, and 10M, with custom lengths available upon request. Please contact our customer service for specific requirements.
