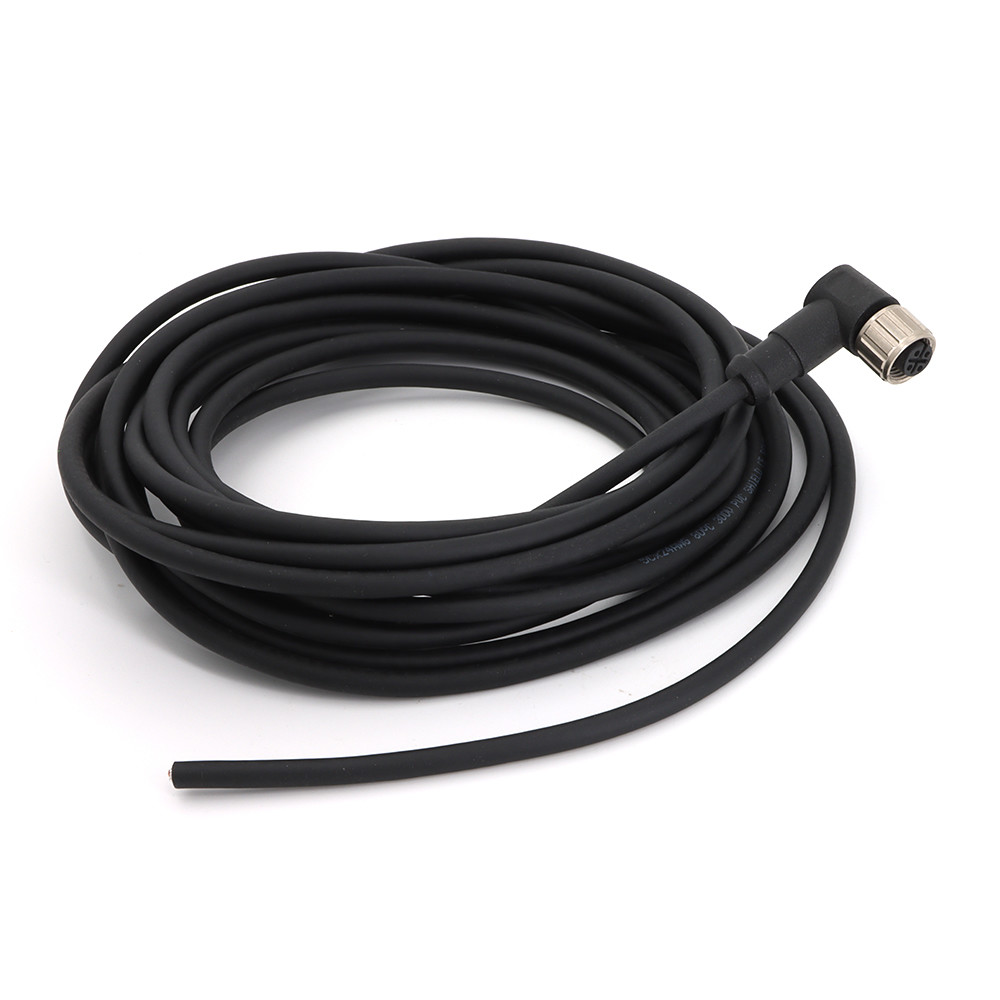

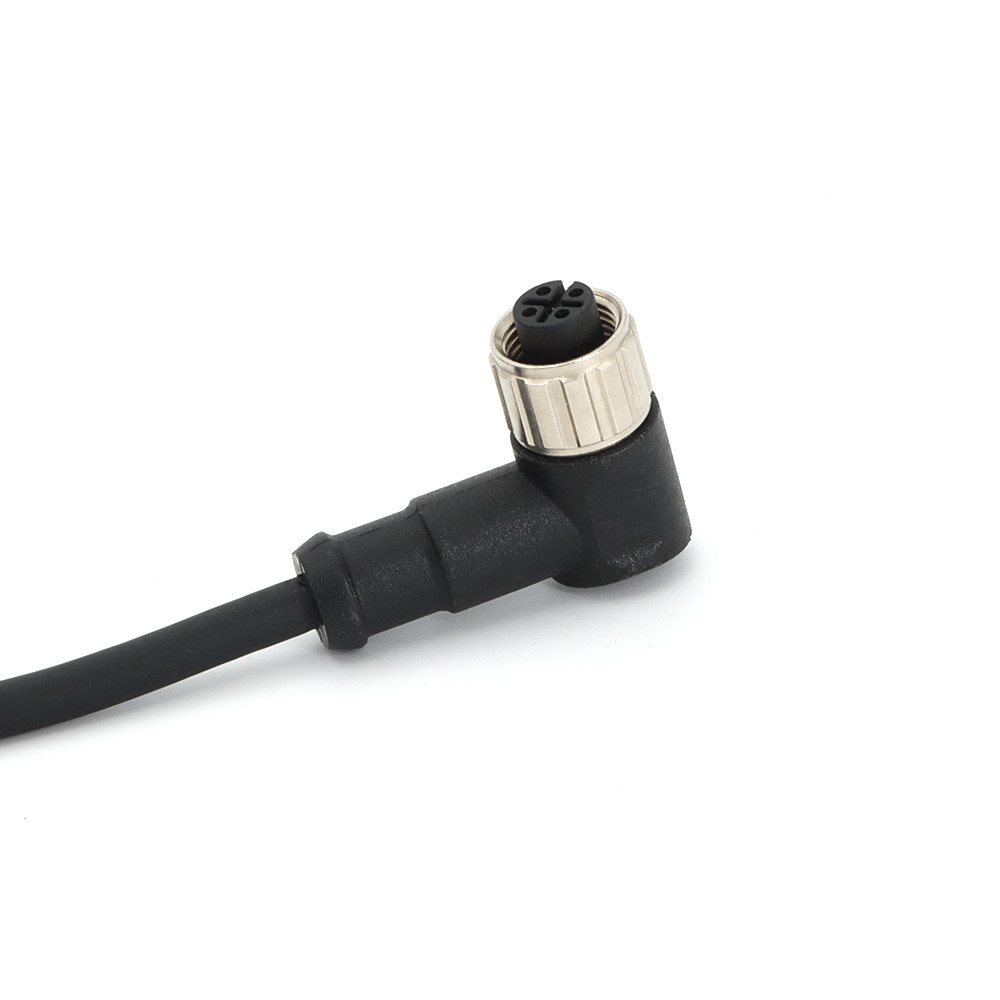

Angled M12 Connectors Female 8 Pin Waterproof IP67 With Molded Cable
  • Name
  • Name

Angled M12 Connectors Female 8 Pin Waterproof IP67 With Molded Cable

Brand Name: KRONZ
Model Number: M1208FA-2/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M12 Connectors With Molded Cable
Seal Material:
FPM/FKM
IP Rate:
IP67
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Standard:
IEC 61076-2-101
Contact Nut Material:
Brass, Nickel-plated
Contact Surface Material:
Brass, Gold-plated
Supply Ability:
100000 pieces per month
Highlight:

Angled M12 Connectors

,

Waterproof IP67 M12 Connectors

,

8 Pin M12 Female Connectors

Product Description
Angled M12 Connectors Female 8 Pin Waterproof IP67 With Molded Cable
Product Specifications
Attribute Value
Product name M12 Connectors with molded cable
Seal material FPM/FKM
IP rate IP67
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Product Description

Pre-assembled M12 cable connectors with 3/4/5/8/12 pin configurations, featuring special PVC oxygen-free copper material for stable transmission, high temperature resistance, and IP67 waterproof rating.

  • High-quality wires with soft and folding resistance
  • Protection against dust penetration and brief soaking
  • Available in standard wire lengths of 1M/2M/3M/5M/10M
  • Custom sizes available upon request
Angled M12 Connectors Female 8 Pin Waterproof IP67 With Molded Cable 0
Technical Specifications
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration
Angled M12 Connectors Female 8 Pin Waterproof IP67 With Molded Cable 1
Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
See diagram 1=WH
2=BN
3=GN
4=YE
5=GY
6=PK
7=BU
8=RD		 A 2A 30V 8×0.25
(8×24AWG)
PVC, black		 Angled 2M M1208FA-2/P00R
              5M M1208FA-5/P00R
              10M M1208FA-10/P00R
