PVC M12 Female Connectors 12 Pin Angled IP67 Black With Molded Cable

50 pieces
MOQ
Negotiable
Price
PVC M12 Female Connectors 12 Pin Angled IP67 Black With Molded Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: M12 Connectors With Molded Cable
Seal Material: FPM/FKM
IP Rate: IP67
Standard: IEC 61076-2-101
Ambient Temperature: Ambient Temperature -25~+85℃
Contact Nut Material: Brass, Nickel-plated
Contact Surface Material: Brass, Gold-plated
Contact Carrier Material: PA, Black
Highlight:

PVC M12 Female Connectors

,

M12 Female Connectors 12 Pin

,

IP67 M12 12 Pin Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1212FA-10/P00R
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
PVC M12 Female Connectors 12 Pin Angled IP67 Black With Molded Cable
Product Specifications
Attribute Value
Product name M12 Connectors with molded cable
Seal material FPM/FKM
IP rate IP67
Standard IEC 61076-2-101
Ambient temperature -25~+85℃
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Product Description

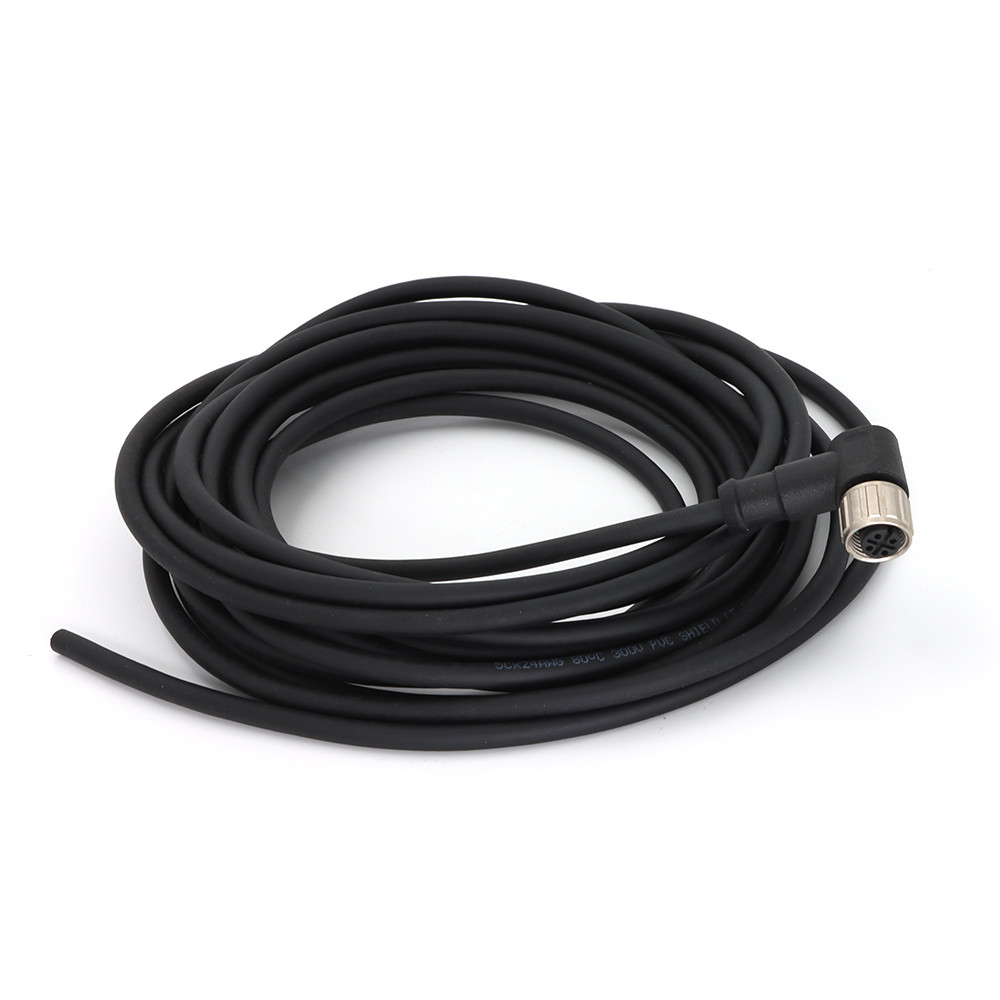

M12 Connectors with Molded Cable Female Angled 12 Pin IP67 black PVC

Cable length: 2/5/10m, other cable lengths are available on request! Freely selectable cable material (P00R: black PVC, P01R: black PUR). For more details, please consult our customer service.

PVC M12 Female Connectors 12 Pin Angled IP67 Black With Molded Cable 0
Technical Data
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration
Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
PVC M12 Female Connectors 12 Pin Angled IP67 Black With Molded Cable 1 1=BN
2=BU
3=WH
4=GN
5=PK
6=YE
7=BK
8=GY
9=RD
10=VT
11=GY/PK
12=RD/BU 		A 1.5A 30V 12×0.14 (12×26AWG) PVC, black Angled 2M M1212FA-2/P00R
5M M1212FA-5/P00R
10M M1212FA-10/P00R
