PCB Contacts M12 Connector Panel Front Mounting 12 Pin A Code Straight
  • Name
  • Name

PCB Contacts M12 Connector Panel Front Mounting 12 Pin A Code Straight

Brand Name: KRONZ
Model Number: F1212F-PF/M16
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Standard:
IEC 61076-2-101
Voltage:
250V
Mating Cycles:
>100
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Color:
Silver
Supply Ability:
100000 pieces per month
Highlight:

PCB Contacts M12 Connector

,

A Code Straight M12 Connector

,

Front Mounting M12 Connector

Product Description
PCB Contacts M12 Connector Panel Front Mounting 12 Pin A Code Straight
Product Specifications
Standard IEC 61076-2-101
Voltage 250V
Mating Cycles >100
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Color Silver
Product Description

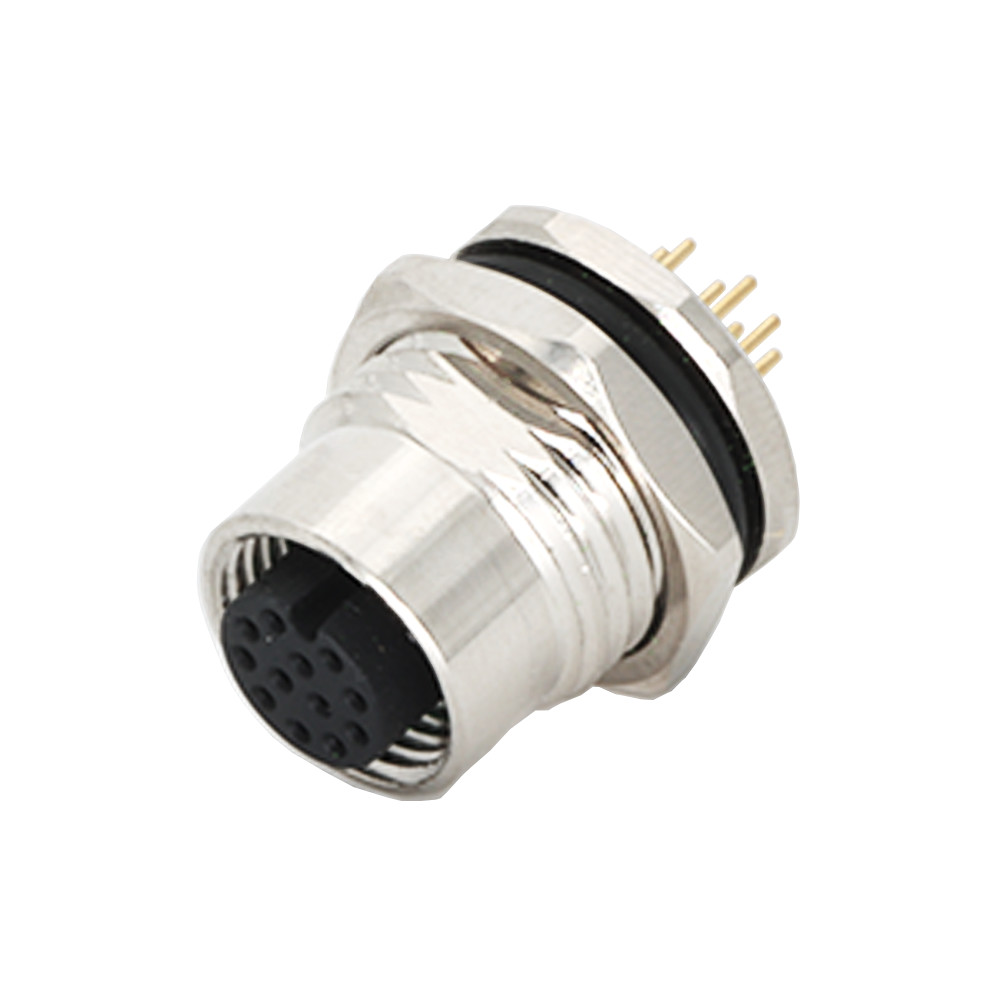

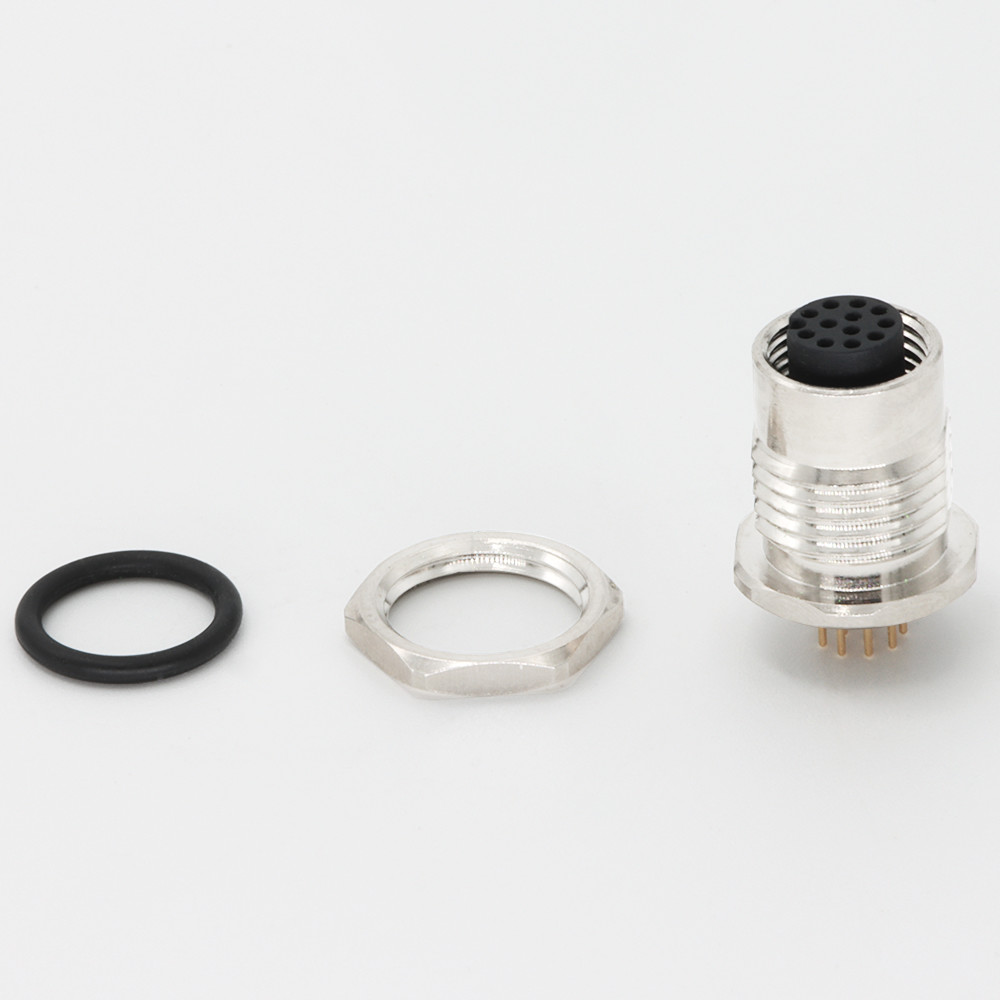

M12 panel mount connectors feature a 12-pole female circular panel mount socket with metal body and IP67 protection rating. The socket features an M12 thread and 4A current rating with PCB contacts termination.

PCB Contacts M12 Connector Panel Front Mounting 12 Pin A Code Straight 0
Technical Specifications
Standard
IEC 61076-2-101
Contact nut material
Brass, nickel-plated
Contact surface material
Brass, gold-plated
Contact carrier material
PA, black
Housing material
TPU, black
Seal material
FPM/FKM
Insulation resistance
≥100MΩ
Contact resistance
≤5mΩ
Pollution degree
3
Ambient temperature
-25~+85℃
Mating cycles
>100
Degree of protection
IP67
Configuration Details
Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
PCB Contacts M12 Connector Panel Front Mounting 12 Pin A Code Straight 1 Front mounting A 1.5A 30V Straight PCB version M1212F-PF/M16
