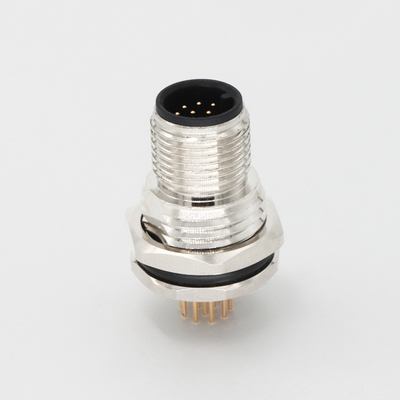

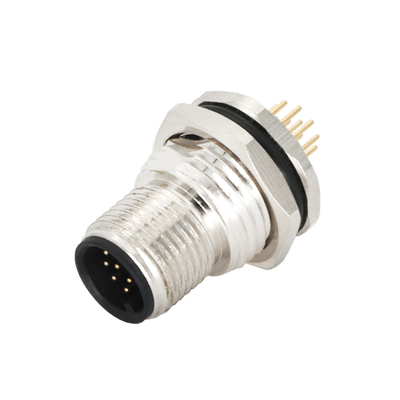

Flange 12 Pin M12 Connector Panel Mount PCB Front Mounting IEC 61076-2-101

Flange 12 Pin M12 Connector Panel Mount PCB Front Mounting IEC 61076-2-101

Brand Name:	KRONZ
Model Number:	F1212M-PF/M16
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Product Name:

Panel Mount Connector

Seal Material:

FPM/FKM

IP Rate:

IP67

Contacts:

PCB

Gender:

Male

Code:

A

Supply Ability:

100000 pieces per month

Highlight:

Flange 12 Pin M12 Connector

,

PCB 12 Pin M12 Connector

,

Panel Mount 12 Pin M12 Connector

Product Description

Flange 12 Pin M12 Connector Panel Mount PCB Front Mounting IEC 61076-2-101

Product Specifications

Attribute	Value
Product Name	Panel mount connector
Seal Material	FPM/FKM
IP Rate	IP67
Contacts	PCB
Gender	Male
Code	A

Product Overview

M12 Flange Connector Panel Mount PCB Contacts Front Mounting 12 Pin IEC 61076-2-101

Flange 12 Pin M12 Connector Panel Mount PCB Front Mounting IEC 61076-2-101 0

Key Applications

Machinery and equipment: Ideal for connecting electrical parts in heavy machinery
Networking and telecommunications: Suitable for specialized networking setups
Marine applications: Resistant to harsh marine environments
Aerospace industry: Meets stringent aerospace requirements

Technical Specifications

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Configuration Details

Pin assignment	Mounting type	Coding	Rated current	Voltage	Cable outlet	Contacts termination	Part No.
	Front mounting	A	1.5A	30V	Straight	PCB version	M1212M-PF/M16
