Square Flange PCB M12 Connector Front Mounting 5 Pin Male Waterproof IP67

Brand Name:	KRONZ
Model Number:	F1205M-PFL
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Product Name:

M12 Square Flange Connector

Standard:

IEC 61076-2-101

Contact Nut Material:

Brass, Nickle-plated

Contacts:

PCB Version

Mating Cycles:

>100

Housing Material:

Brass, Nickle-plated

Supply Ability:

100000 pieces per month

Highlight:

PCB M12 Connector

Square Flange M12 Connector

Waterproof IP67 M12 Male Connector

Product Description

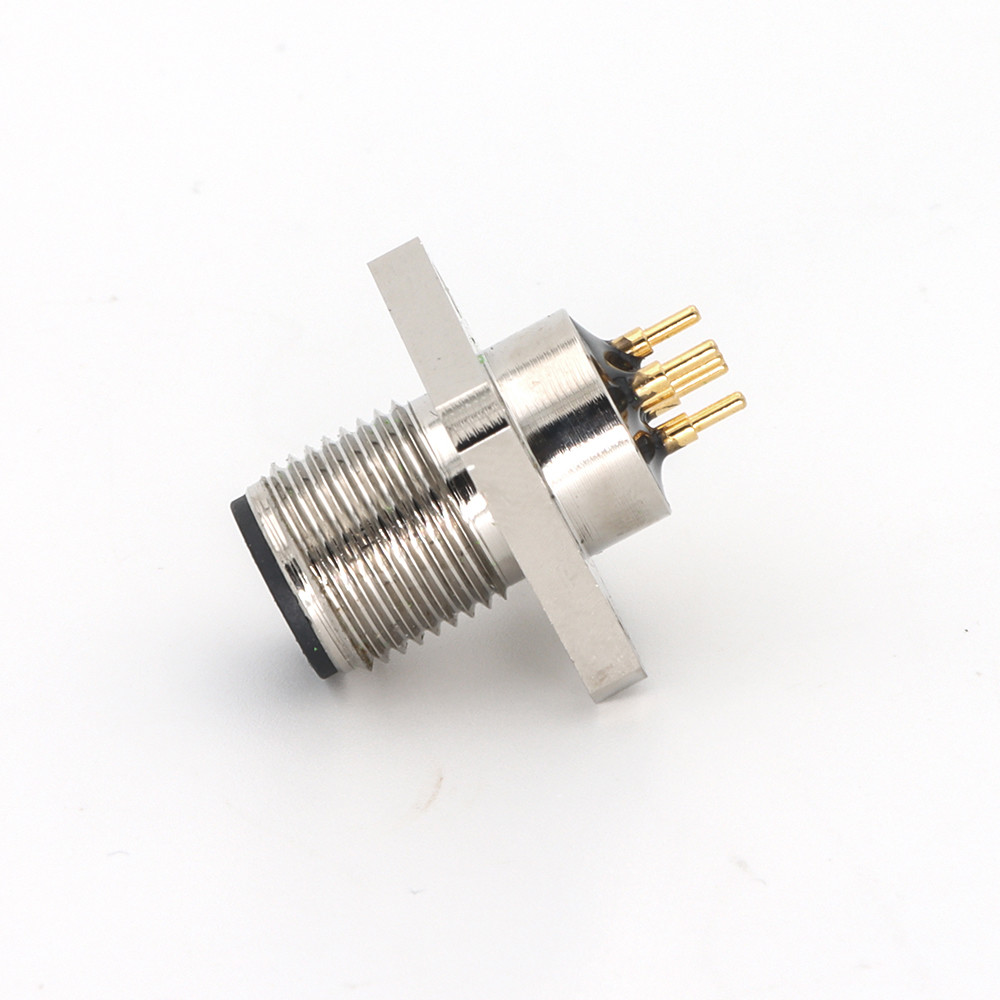

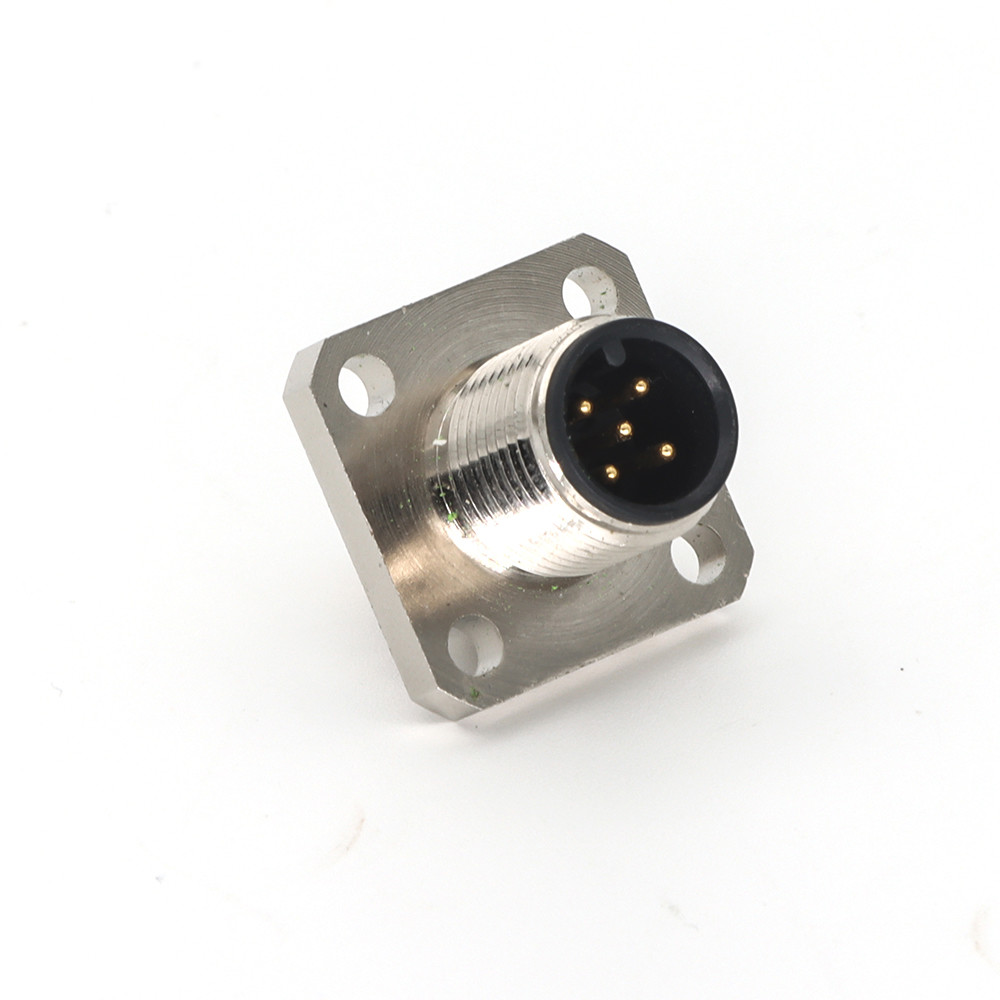

Square Flange PCB M12 Connector Front Mounting 5 Pin Male Waterproof IP67

Product Overview

The M12 panel mount connector features a square flange design with front mounting capability, offering reliable waterproof performance with IP67 protection.

Key Attributes

Product Name	M12 square flange connector
Standard	IEC 61076-2-101
Contact Nut Material	Brass, nickle-plated
Contacts	PCB version
Mating Cycles	>100
Housing Material	Brass, nickle-plated

Applications

Test and measurement equipment: Provides secure connections for various testing instruments
Renewable energy systems: Connects components in solar, wind, and other renewable energy installations

Technical Specifications

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Configuration Details

Pin assignment	Mounting type	Coding	Rated current	Voltage	Cable outlet	Contacts termination	Part No.
	Front mounting	A	4A	60V	Straight	PCB version	F1205M-PFL
