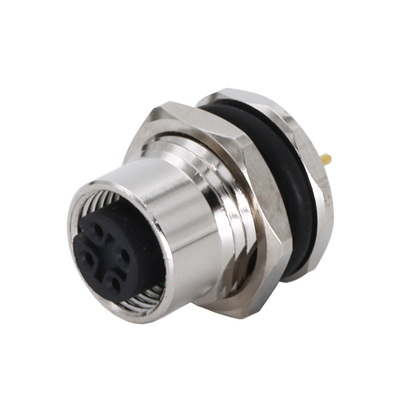

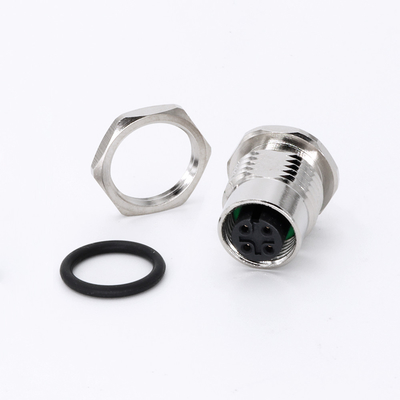

Panel Mount M12 4 Pin Connector Flange PCB Version Front Mounting A Coding

Brand Name:	KRONZ
Model Number:	F1204F-PF/M16
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Name:

Flange M12 Connector

Contact Type:

PCB Version

Contact Carrier Material:

PA, Black

Type:

Front Mounting

Cable Outlet:

Straight

Rated Current:

Supply Ability:

100000 pieces per month

Highlight:

Panel Mount M12 4 Pin Connector

Flange M12 4 Pin Connector

PCB Version M12 4 Pin Connector

Product Description

Panel Mount M12 4 Pin Connector Flange PCB Version Front Mounting A Coding

Product Attributes

Attribute	Value
Name	Flange M12 connector
Contact Type	PCB version
Contact Carrier Material	PA, black
Type	Front mounting
Cable Outlet	Straight
Rated Current	4A

M12 Panel Mount Connectors Flange PCB Version Front Mounting 4 Pin A-Coding

M12 panel mount connectors feature 3/4/5/8/12 pole female circular panel mount socket with metal body and IP67 protection rating. The socket features an M12 thread and 4A current rating with PCB contacts termination.

Technical Specifications

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Configuration Details

Pin assignment	Mounting type	Coding	Rated current	Voltage	Cable outlet	Contacts termination	Part No.
	Front mounting	A	4A	250V	Straight	PCB version	M1204F-PF/M16
