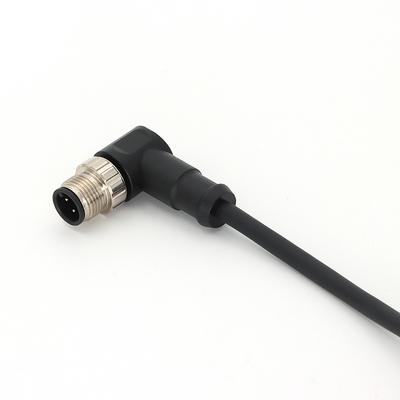

Molded Cable M12 Connectors IEC 61076-2-101 PIN3 A Coding Male Angled
  • Name
  • Name

Molded Cable M12 Connectors IEC 61076-2-101 PIN3 A Coding Male Angled

Brand Name: KRONZ
Model Number: M1203MA-2/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M12 Connectors With Molded Cable
Seal Material:
FPM/FKM
IP Rate:
IP67
Standard:
IEC 61076-2-101
Ambient Temperature:
Ambient Temperature -25~+85℃
Insulation Resistance:
≥100MΩ
Contact Resistance:
≤5mΩ
Pollution Degree:
3
Supply Ability:
100000 pieces per month
Highlight:

Molded Cable M12 Connectors

,

M12 Connectors IEC 61076-2-101

,

M12 Male Connectors PIN3

Product Description
Molded Cable M12 Connectors IEC 61076-2-101 PIN3 A Coding Male Angled
Product Specifications
Attribute Value
Product name M12 Connectors with molded cable
Seal material FPM/FKM
IP rate IP67
Standard IEC 61076-2-101
Ambient temperature -25~+85℃
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Product Description

M12 Connectors with molded cable IEC 61076-2-101 PIN3 codingA Male Angled


  • Cable length options: 2m, 5m, 10m (custom lengths available upon request)
  • Selectable cable materials: P00R (black PVC) or P01R (black PUR)
  • Constructed with special PVC oxygen-free copper material twisted pair double shielded
  • Environmentally friendly PVC outer cover resistant to bending and pulling
  • Available in both shielded and unshielded configurations
Molded Cable M12 Connectors IEC 61076-2-101 PIN3 A Coding Male Angled 0
Technical Data
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details
Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Molded Cable M12 Connectors IEC 61076-2-101 PIN3 A Coding Male Angled 1 1=BN
3=BU
4=BK		 A 4A 250V 3×0.34 (3×22AWG)
PVC, black		 Angled 2M M1203MA-2/P00R
              5M M1203MA-5/P00R
              10M M1203MA-10/P00R
For additional specifications or custom configurations, please contact our customer service team.
