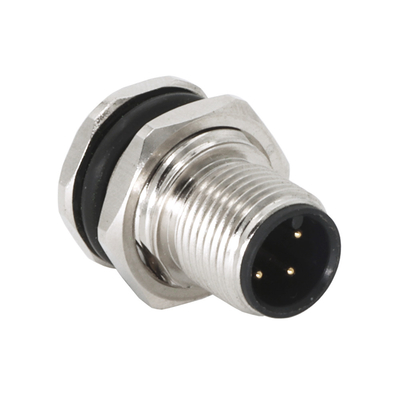

3 Pin Male M12 Circular Connectors Panel Mount PCB Front Mounting Straight Contact

50 pieces
MOQ
Negotiable
Price
3 Pin Male M12 Circular Connectors Panel Mount PCB Front Mounting Straight Contact
Features Gallery Product Description Request A Quote
Features
Specifications
Name: M12 Panel Mount Connector
Standard: IEC 61076-2-101
Rated Current: 4A
Mating Cycles: >100
OEM: Available
Voltage: 250V
Highlight:

Male M12 Circular Connectors

,

3 Pin M12 Circular Connectors

,

Panel Mount M12 Circular Connectors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: F1203M-PF/M16
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 Circular Connectors Panel Mount PCB Front Mounting 3 Pin Male Straight Contact



Product Description

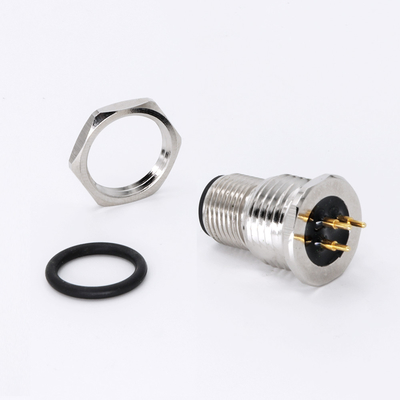

M12 flange connectors follow standard IEC 61076-2-101, it have 3/4/5/8/12 pin A-coding Male and Female circular panel mount socket featuring a metal body and IP67 protection rating. The socket features an M12 thread and 4A current rating, PCB contacts termination, front mounting type.

3 Pin Male M12 Circular Connectors Panel Mount PCB Front Mounting Straight Contact 0



Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
3 Pin Male M12 Circular Connectors Panel Mount PCB Front Mounting Straight Contact 1 Front mounting A 4A 250V Straight PCB version M1203M-PF/M16
