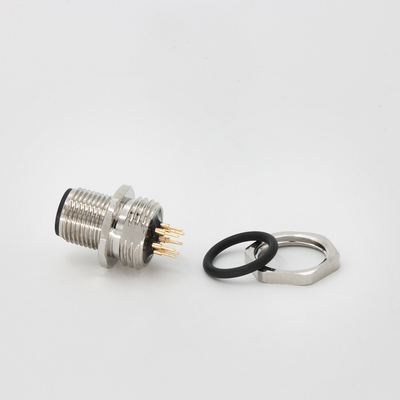

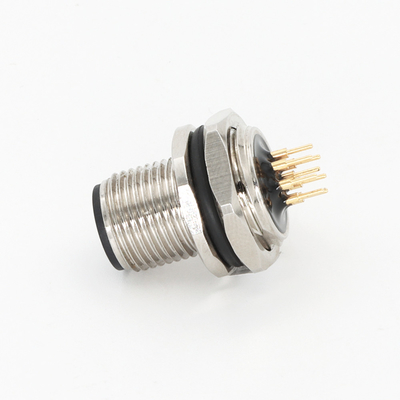

Panel Mount M12 Connector 8 Pin IEC 61076-2-101 Male Rear Mounting PCB Version

Brand Name:	KRONZ
Model Number:	F1208M-PR/M16
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Type:

M12 Flange Connector

Standard:

IEC 61076-2-101

Code:

Mounting Type:

Rear

IP Rate:

IP67

Rated Current:

Supply Ability:

100000 pieces per month

Highlight:

Panel Mount M12 Connector 8 Pin

Rear Mounting M12 Connector 8 Pin

IEC 61076-2-101 M12 Connector

Product Description

Panel Mount M12 Connector 8 Pin IEC 61076-2-101 Male Rear Mounting PCB Version

Product Attributes

Attribute	Value
Type	M12 flange connector
Standard	IEC 61076-2-101
Code	A
Mounting Type	Rear
IP Rate	IP67
Rated Current	4A

Product Description

M12 Panel Mount Connector 8 Pin IEC 61076-2-101 Male Rear Mounting PCB Version

M12 flange connectors with screw locking and 8-pin configuration offer IP67 protection, making them dustproof and providing complete protection against contact. These connectors are designed for permanent submersion protection (up to 1 meter water depth) and are suitable for environments with pollution degree 3, including areas where conductive contamination or condensation may occur.

Technical Specifications

Specification	Details
Standard	IEC 61076-2-101
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Configuration Details

Pin assignment	Mounting type	Coding	Rated current	Voltage	Cable outlet	Contacts termination	Part No.
	Rear mounting	A	2A	30V	Straight	PCB version	F1208M-PF/M16
