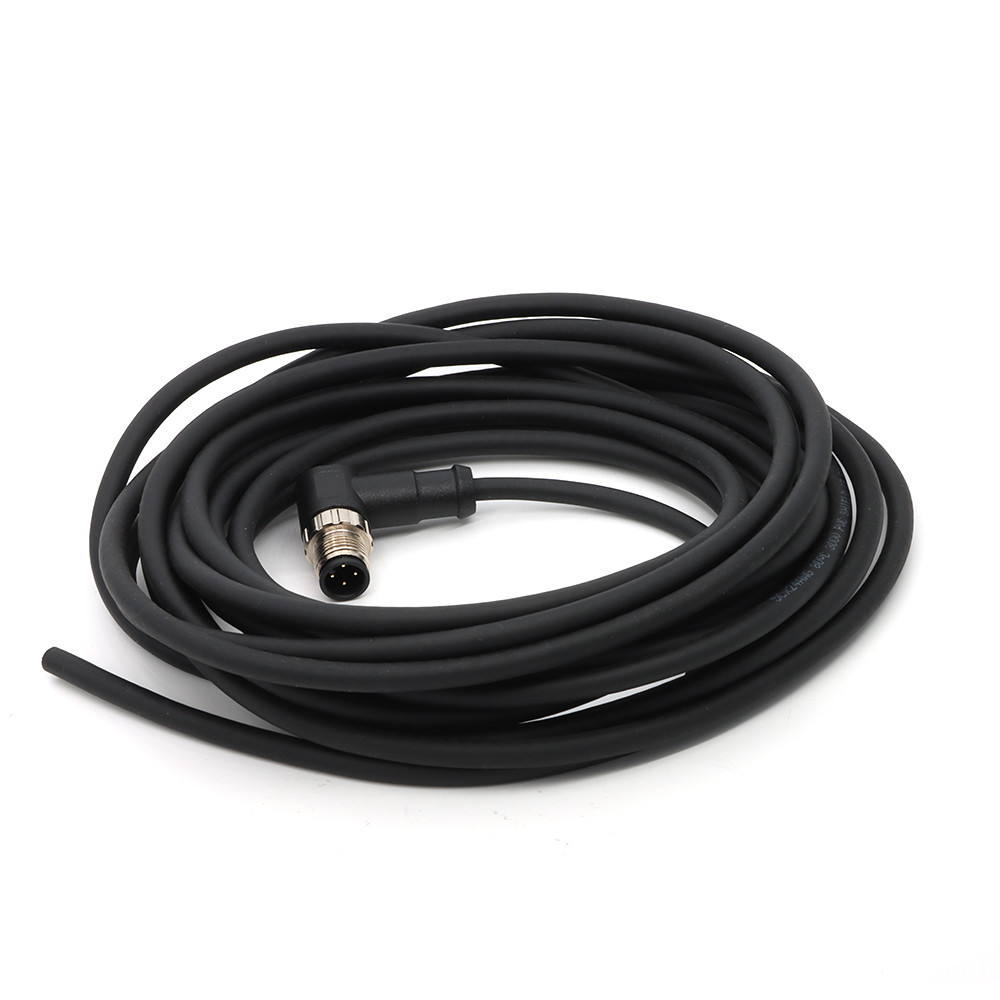

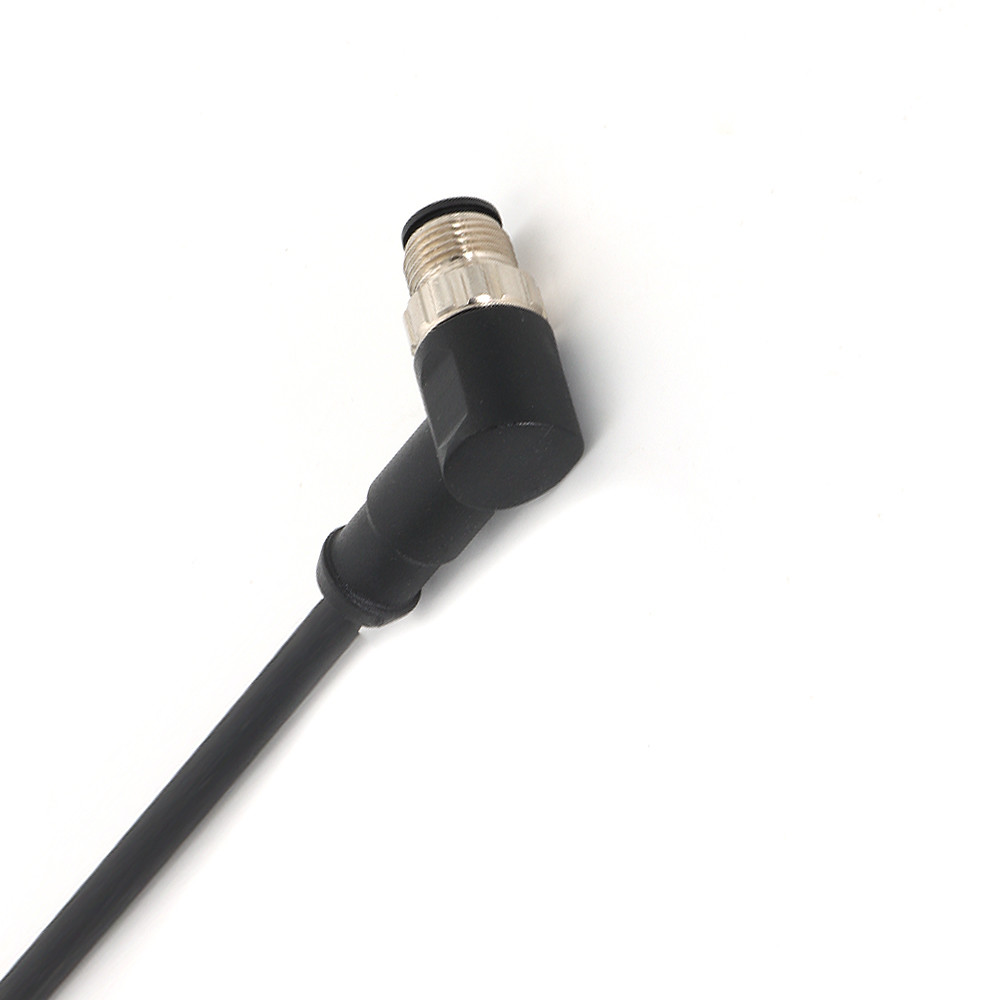

Pre Assembled Cable M12 Connector Male Angled Aviation Plug Connector PIN8

50 pieces
MOQ
Negotiable
Price
Pre Assembled Cable M12 Connector Male Angled Aviation Plug Connector PIN8
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: M12 Connectors With Molded Cable
IP Rate: IP67
Standard: IEC 61076-2-101
Ambient Temperature: -25~+85℃
Pollution Degree: 3
Mating Cycles: >100
Highlight:

Pre Assembled Cable M12 Connector

,

Aviation Plug Connector PIN8

,

Angled Aviation Plug Connector PIN8
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1208MA-2/P00R
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 Pre-assembled Cable Male Angled Aviation Plug Sensing Connector PIN8



Product Description

5 reasons to choose us: We have well-equipped production and processing equipment for wire harness components and connectors, as well as design and development technology
1. Beautiful appearance and reasonable structure
2. Ensure safety through various tests
3. Time and effort saving, high work efficiency
4. Easy to use and reliable operation
5. Not easy to age, long service life

Pre Assembled Cable M12 Connector Male Angled Aviation Plug Connector PIN8 0



Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Pre Assembled Cable M12 Connector Male Angled Aviation Plug Connector PIN8 1 1=WH
2=BN
3=GN
4=YE
5=GY
6=PK
7=BU
8=RD		 A 2A 30V 8×0.25
(8×24AWG)
PVC, black		 Angled 2M M1208MA-2/P00R
5M M1208MA-5/P00R
10M M1208MA-10/P00R
