Molded Cable M12 12 Pin Connector Waterproof Aviation Plug Sensor Signal Line

50 pieces
MOQ
Negotiable
Price

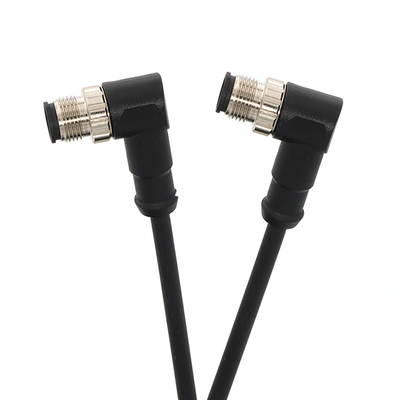

Molded Cable M12 12 Pin Connector Waterproof Aviation Plug Sensor Signal Line
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: M12 Connectors With Molded Cable
Seal Material: FPM/FKM
IP Rate: IP67
Standard: IEC 61076-2-101
Pollution Degree: 3
Contact Nut Material: Brass, Nickel-plated
Contact Surface Material: Brass, Gold-plated
Contact Carrier Material: PA, Black
Highlight:

Molded Cable M12 12 Pin Connector

,

M12 12 Pin Connector Waterproof

,

Molded Cable M12 Aviation Plug
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1205MA-2/P00R
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Molded Cable M12 12 Pin Connector Waterproof Aviation Plug Sensor Signal Line
Product Attributes
Attribute Value
Product name M12 Connectors with molded cable
Seal material FPM/FKM
IP rate IP67
Standard IEC 61076-2-101
Pollution degree 3
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Product Description

M12 circular connector, IP67 waterproof aviation plug with quick link capability. Features waterproof and dustproof construction with pure copper wire core. Made of flame-retardant engineering plastic material for excellent insulation performance, fireproof and flame-retardant properties ensuring safer use and longer service life.

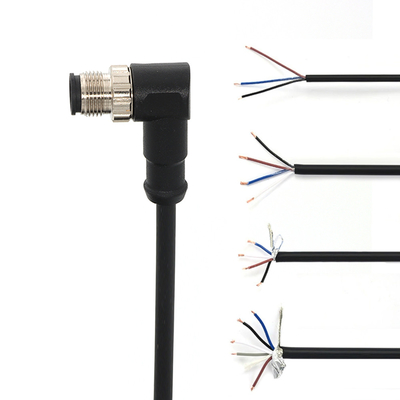

  • Available cable lengths: 2m, 5m, 10m (custom lengths available on request)
  • Cable material options: P00R (black PVC) or P01R (black PUR)
  • Shielded and unshielded versions available
Molded Cable M12 12 Pin Connector Waterproof Aviation Plug Sensor Signal Line 0
Technical Specifications
Specification Value
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration & Model Details
Pin Assignment Connection Method Coding Rated Current Voltage Wire Gauge Cable Outlet Length Model No.
Molded Cable M12 12 Pin Connector Waterproof Aviation Plug Sensor Signal Line 1 1=BN
2=BU
3=WH
4=GN
5=PK
6=YE
7=BK
8=GY
9=RD
10=VT
11=GY/PK
12=RD/BU		 A 1.5A 30V 12×0.14
(12×26AWG)
PVC, black		 Angled 2M M1212MA-2/P00R
5M M1212MA-5/P00R
10M M1212MA-10/P00R
Molded Cable M12 12 Pin Connector Waterproof Aviation Plug Sensor Signal Line 2

KRONZ is a manufacturing enterprise located in Zengcheng District, Guangzhou City, specializing in high-efficiency industrial automation solutions and related products. With years of innovation and development, we possess complete processing equipment and a professional team skilled in various automation technologies.

Our product range includes Industrial Connectors, Inductive Sensors, Capacitive Sensors, Photoelectric Sensors, Ultrasonic Sensors, Industrial power supplies, Industrial fieldbus systems, RFID recognition systems, and Industrial Ethernet Switches.

We offer both standard products and customized solutions based on customer specifications. Committed to mutual benefit, we provide competitive pricing and comprehensive after-sales service. KRONZ products have gained international recognition and customer trust.
