Home /Products/M12 Connector/Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5

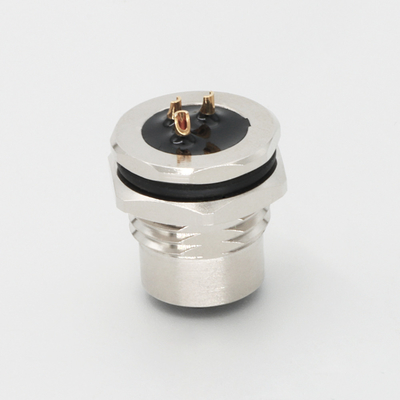

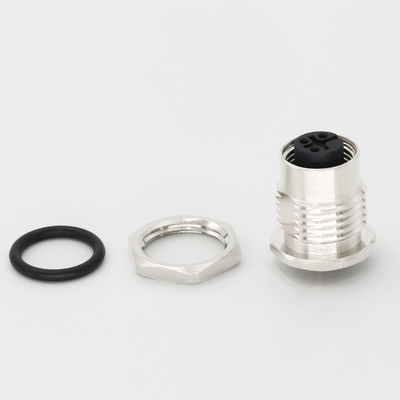

Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5

50 pieces
MOQ
Negotiable
Price
Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5
Features Gallery Product Description Request A Quote
Features
Specifications
Name: M12 Flange Connector
Pullution Degree: 3
Contact Surface Material: Brass, Gold-plated
Type: Front Mounting
Contact Resistance: ≤5mΩ
Seal Material: FPM/FKM
Highlight:

M12 Connector IEC 61076-2-101

,

M16x1.5 Panel Mount Connector

,

M12 3 Pin Female Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: F1203F-SF/M16
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 Panel Mount Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5



Product Description

M12 panel mount connectors with screw locking and 3 pin is according to its protection class IP67 dustproof and complete protection against contact.Protection against permanent submersion, Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. With temperatures ranges of -25 °C/85 °C is this M12-A coded female panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 4 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.



Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5 0



Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
Panel Mount M12 Connector IEC 61076-2-101 Female 3 Pin Front Mounting M16x1.5 1 Front mounting A 4A 250V Straight Solder cup F1203F-SF/M16
Tag:

Cable Assembly Connector

M12 Circular Connectors

M12 Panel Mount Connector
