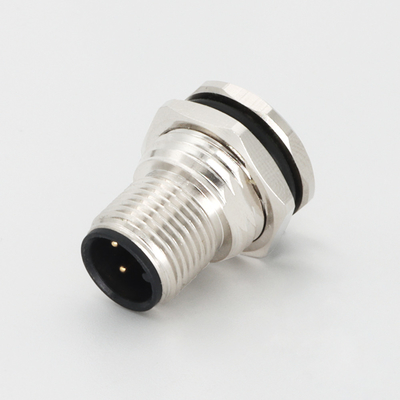

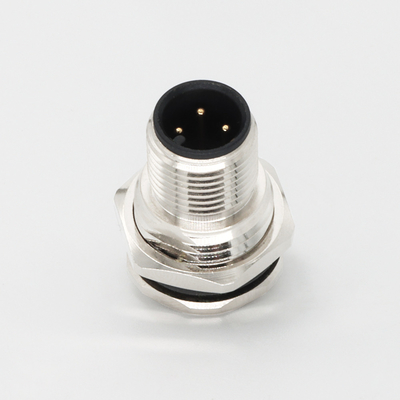

IEC 61076-2-101 M12 Panel Mount Connector 3 Pin Male Straight Flange Connectors

Brand Name:	KRONZ
Model Number:	F1203M-SF/M16
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Type:

M12 Connector

Decription:

Male Flange Connectors

Voltage:

250V

Contacts:

Solder Cup

Coding:

Pin:

Supply Ability:

100000 pieces per month

Highlight:

M12 Panel Mount Connector 3 Pin

IEC 61076-2-101 Flange Connector

Straight M12 Panel Mount Connector

Product Description

IEC 61076-2-101 M12 Panel Mount Connector 3 Pin Male Straight Flange Connectors

Product Attributes

Attribute	Value
Type	M12 connector
Description	Male flange connectors
Voltage	250V
Contacts	Solder cup
Coding	A
Pin	3

Product Description

M12 male flange connectors with 3 pins and screw locking mechanism. Features IP67 protection class for dustproof operation and complete protection against contact. Designed for permanent submersion protection up to 1 meter water depth.

Suitable for areas with pollution degree 3 (conductive contamination or condensation)
Operating temperature range: -25°C to +85°C
Rated voltage: 250V
Rated current: 4A
Compliant with DIN EN 61076-2-101 standard

Technical Specifications

Standard	IEC 61076-2-101
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Additional Information

Pin assignment
Mounting type	Front mounting
Coding	A
Rated current	4A
Voltage	250V
Cable outlet	Straight
Contacts termination	Solder cup
Part No.	F1203M-SF/M16
