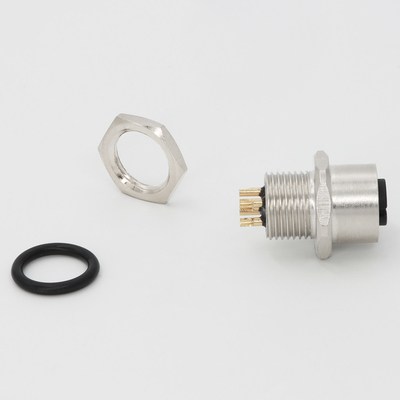

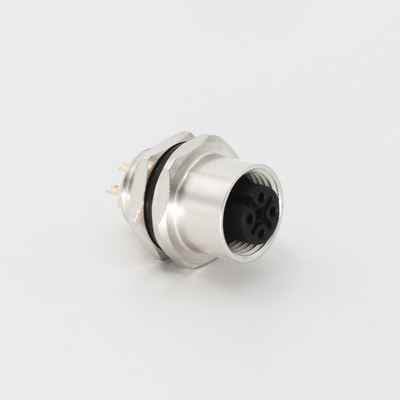

Flange M12 Connector Female 5 Pin Panel Mounted Straight IEC 61076-2-101

50 pieces
MOQ
Negotiable
Price
Flange M12 Connector Female 5 Pin Panel Mounted Straight IEC 61076-2-101
Features Gallery Product Description Request A Quote
Features
Specifications
Type: M12 Connector
Decription: Male Flange Connectors
Voltage: 250V
Contacts: Solder Cup
Coding: A
Pin: 3
Highlight:

Flange M12 Connector Female

,

Panel Mount M12 Connector Female

,

M12 Connector Female IEC 61076-2-101
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: F1205F-SR/M16
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 Panel Mount Connector Female 5 Pin Straight Flange Connectors IEC 61076-2-101



Product Description

M12 panel mount connectors female 5 pin with screw locking frount mounting, its protection class IP67 dustproof and complete protection against contact.Protection against permanent submersion, Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this M12-A coded male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 60 V and the rated current of 4 A it is perfectly tuned for its field of application. It complies with the type standard IEC 61076-2-101.

More requirement, please contact with seller.



Flange M12 Connector Female 5 Pin Panel Mounted Straight IEC 61076-2-101 0



Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
Flange M12 Connector Female 5 Pin Panel Mounted Straight IEC 61076-2-101 1 Front mounting A 4A 60V Straight Solder cup F1205M-SF/M16
Tag:

Cable Assembly Connector

M12 Circular Connectors

M12 Panel Mount Connector
