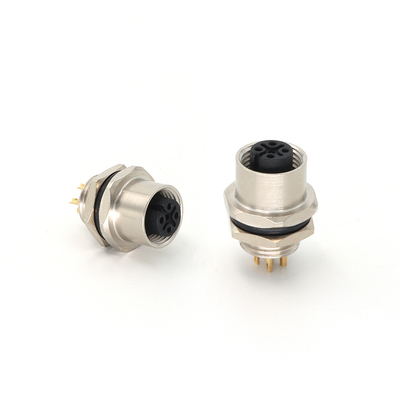

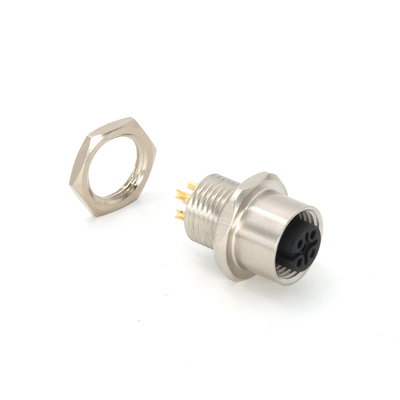

M12 Panel Mount Connector Female 5 Pin Rear Mounting M16 X 1.5 IP67
  • Name
  • Name

M12 Panel Mount Connector Female 5 Pin Rear Mounting M16 X 1.5 IP67

Brand Name: KRONZ
Model Number: F1205F-SR/M16
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
M12 Connector
Decription:
Male Flange Connectors
Voltage:
250V
Contacts:
Solder Cup
Insulation Resistance:
≥100MΩ
Contact Resistance:
≤5mΩ
Ambient Temperature:
-25~+85℃
Mating Cycles:
>100
Supply Ability:
100000 pieces per month
Highlight:

M12 Panel Mount Connector Female

,

M12 Panel Mount Connector 5 Pin

,

IP67 M12 Panel Mount Connector

Product Description
M12 Panel Mount Connector Female 5 Pin Rear Mounting M16 X 1.5 IP67
Product Specifications
Type M12 connector
Description Male flange connectors
Voltage 250V
Contacts Solder cup
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Ambient temperature -25~+85℃
Mating cycles >100
Product Overview

The M12 Panel Mount Connector Female 5 Pin with rear mounting (M16 x 1.5) offers IP67 protection for reliable performance in demanding industrial environments.

  • 5-pin design ensures accurate and stable signal transmission
  • IP67 protection against dust and moisture intrusion
  • Suitable for pollution level 3 environments
  • Compliant with IEC 61076-2-101 standard
  • Ideal for complex electrical systems in harsh conditions
M12 Panel Mount Connector Female 5 Pin Rear Mounting M16 X 1.5 IP67 0
Technical Specifications
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details
Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
M12 Panel Mount Connector Female 5 Pin Rear Mounting M16 X 1.5 IP67 1 Rear mounting A 4A 60V Straight Solder cup F1205F-SR/M16

For additional requirements or custom specifications, please contact our sales team.
