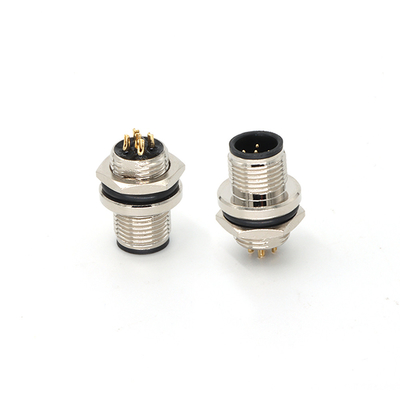

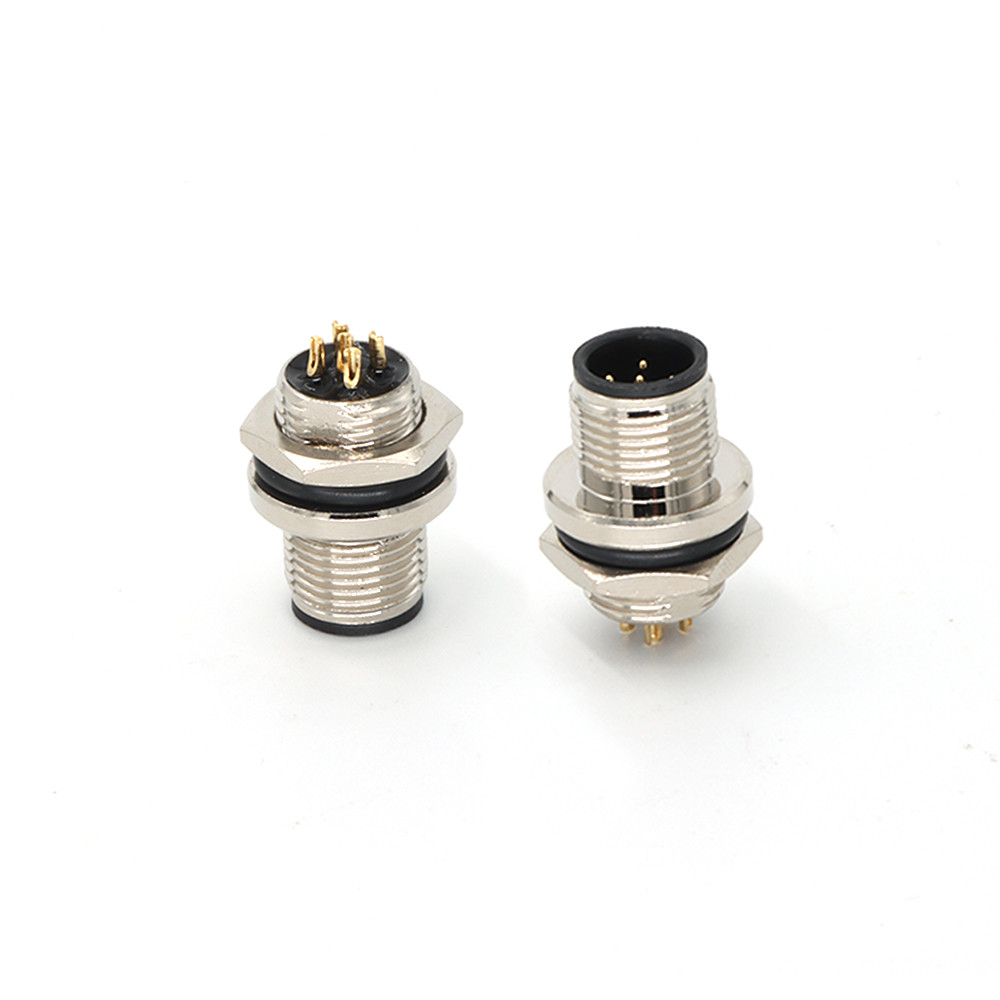

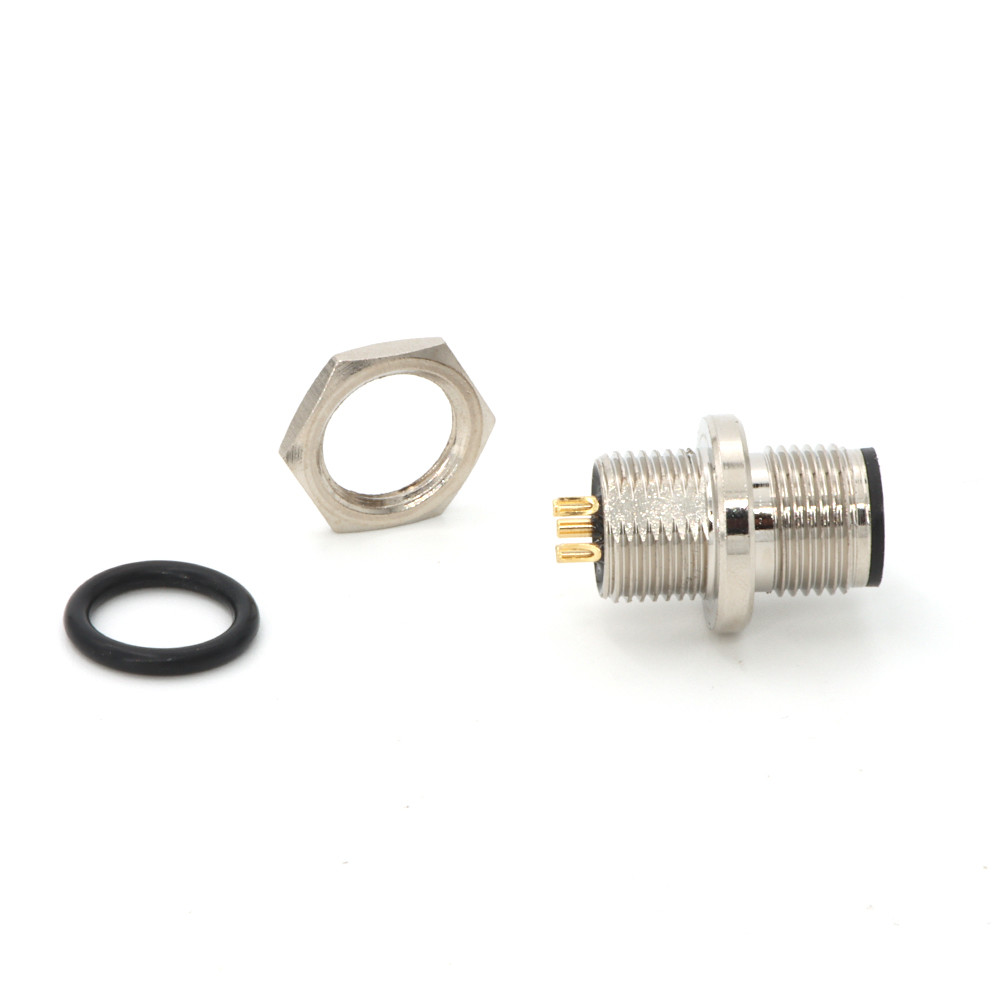

Flange Panel Mount M12 Connector Male 5 Pin Female Rear Mounting IP67
  • Name
  • Name

Flange Panel Mount M12 Connector Male 5 Pin Female Rear Mounting IP67

Brand Name: KRONZ
Model Number: F1205M-SR/M16
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
M12 Connector
Decription:
Male Flange Connectors
Voltage:
60V
Contacts:
Solder Cup
Insulation Resistance:
≥100MΩ
Contact Resistance:
≤5mΩ
Ambient Temperature:
-25~+85℃
Mating Cycles:
>100
Supply Ability:
100000 pieces per month
Highlight:

Panel Mount M12 Connector Male

,

Flange M12 Connector Male

,

M12 5 Pin Connector IP67

Product Description
Flange Panel Mount M12 Connector Male 5 Pin Female Rear Mounting IP67
Product Specifications
Attribute Value
Type M12 connector
Description Male flange connectors
Voltage 60V
Contacts Solder cup
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Ambient temperature -25~+85℃
Mating cycles >100
Product Overview

The M12 Panel Mount Connector Male 5 Pin with Female Rear mounting and IP67 rating offers reliable performance for industrial applications. This flange connector features a 5-pin design that ensures stable signal transmission in complex electrical systems.

  • IP67 protection rating provides excellent dust and water resistance
  • Suitable for use in pollution level 3 environments
  • Maintains stable operation in conductive or condensing conditions
  • Compliant with IEC 61076-2-101 standard for broad compatibility
Flange Panel Mount M12 Connector Male 5 Pin Female Rear Mounting IP67 0
Technical Specifications
Parameter Specification
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass, nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Configuration Details
Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
Flange Panel Mount M12 Connector Male 5 Pin Female Rear Mounting IP67 1 Rear mounting A 4A 60V Straight Solder cup F1205M-SR/M16
