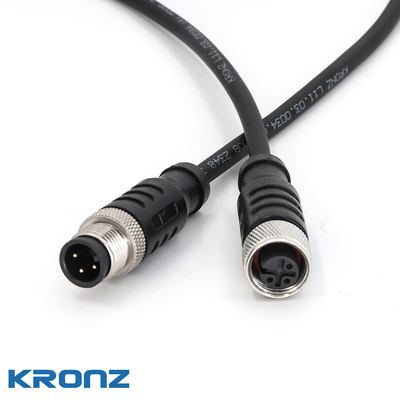

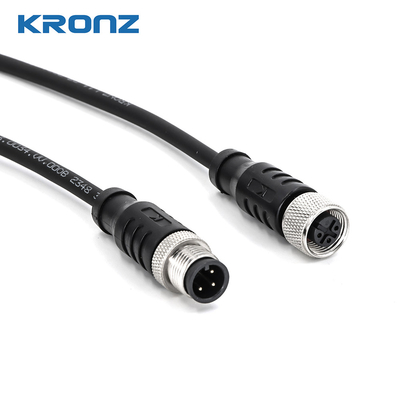

M12 Circular Connector Female 1m Pre-molded Cable IP67 Waterproof 3 Pin A-coding

Brand Name:	KRONZ
Model Number:	M1203F-1/P00K
MOQ:	50
Price:	To Be Confirm
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Standard:

IEC 61076-2-101

Pollution Degree:

Mating Cycles:

Rated Current:

Seal Material:

FPM/FKM

Cable Outlet:

Straight

Contact Resistance:

Cable Length:

1M/2M/3M/5M/10M/15M

Supply Ability:

100000 pieces per month

Highlight:

circular m12 connector

circular m12 female connector

ip67 m12 connector

Product Description

M12 Circular Connector Female 1m Pre-molded Cable IP67 Waterproof 3 Pin A-coding

Key Specifications

Attribute	Value
Standard	IEC 61076-2-101
Pollution degree	3
Mating cycles	>100
Rated current	4A
Seal material	FPM/FKM
Cable outlet	Straight
Contact resistance	≤5mΩ
Cable length	1M/2M/3M/5M/10M/15M

Product Overview

The M12 Circular Connector is a high-performance, IP67-rated waterproof solution designed for demanding industrial environments. With its 4A current rating and A-coding configuration, this connector delivers reliable performance in factory automation, robotics, machine control, and automotive applications.

Technical Specifications

Parameter	Specification
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Ambient temperature	-25~+85℃
Degree of protection	IP67

Pin Configuration

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1=BN 3=BU 4=BK	A	4A	250V	3×0.34 (3×22AWG) PVC, black	Straight	1M	M1203F-1/P00K

Industrial Applications

Factory automation systems
Robotics and motion control
Production line equipment
Sensor and actuator connections
Food and pharmaceutical processing equipment
Warehouse automation systems

Key Features

Rugged IP67 waterproof construction
Gold-plated contacts for reliable connections
Straight cable outlet for easy installation
Compact design for space-constrained applications
Multiple cable length options available
Compliant with IEC 61076-2-101 standard

Customization Options

The KRONZ M1203F-1/P00K waterproof connector offers flexible configuration options to meet specific application requirements. Manufactured in Guangdong, China, this high-quality industrial connector is built to withstand harsh environments while maintaining reliable electrical performance.
