M12 Female Connector IP67 3-pin 2 Meter Pre-assembled Cable PVC Sensor Connector
  • Name
  • Name

M12 Female Connector IP67 3-pin 2 Meter Pre-assembled Cable PVC Sensor Connector

Brand Name: KRONZ
Model Number: M1203F-2/P00K
MOQ: 50
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Insulation Resistance:
≥100MΩ
Coding:
A
Wire Gauge:
3×0.34 (3×22AWG) PVC, Black
Pollution Degree:
3
Housing Material:
TPU, Black
Contact Nut Material:
Brass, Nickle-plated
Contact Carrier Material:
PA, Black
Wire Color:
1=BN 3=BU 4=BK
Supply Ability:
100000 pieces per month
Highlight:

m12 female connector ip67

,

ip67 m12 connector female

Product Description

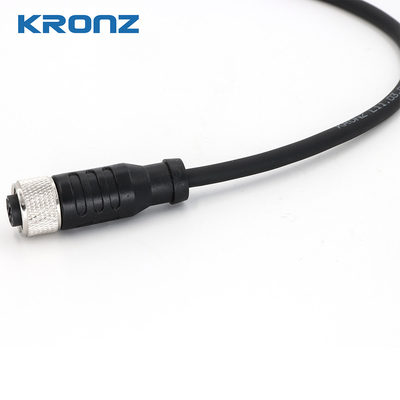

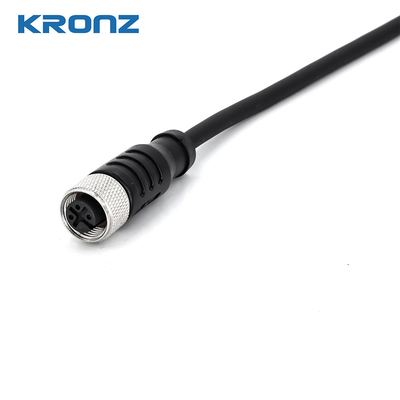

M12 Female Connector IP67 3-pin 2 Meter Pre-assembled Cable PVC Sensor Connector
Product Overview

The M12 Female Connector is a robust, IP67-rated 3-pin connector with a 2-meter pre-assembled PVC cable, designed for industrial automation, robotics, and harsh environment applications. Featuring durable TPU housing and brass nickel-plated contacts, it offers reliable performance with over 100 mating cycles.

Key Specifications
Attribute Value
Insulation resistance ≥100MΩ
Coding A
Wire gauge 3×0.34 (3×22AWG) PVC, Black
Pollution degree 3
Housing material TPU, Black
Contact nut material Brass, Nickle-plated
Contact carrier material PA, Black
Wire color 1=BN 3=BU 4=BK
M12 Female Connector IP67 3-pin 2 Meter Pre-assembled Cable PVC Sensor Connector 0
Technical Specifications
Parameter Specification
Standard IEC 61076-2-101
Contact surface material Brass, gold-plated
Seal material FPM/FKM
Contact resistance ≤5mΩ
Ambient temperature -25~+85℃
Degree of protection IP67
Electrical & Mechanical Characteristics
Pin assignment Wire color Rated current Voltage Length Model No.
M12 Female Connector IP67 3-pin 2 Meter Pre-assembled Cable PVC Sensor Connector 1 1=BN
3=BU
4=BK		 4A 250V 2M M1203F-2/P00K
Key Features
  • IP67 protection rating for dust and water resistance
  • Durable TPU housing with FPM/FKM seals for harsh environments
  • Pre-assembled 2-meter PVC cable for easy installation
  • Gold-plated brass contacts for reliable conductivity
  • 3-pin A-coded configuration for standard compatibility
  • Rated for 250V/4A operation in industrial applications
Applications

This M12 connector is ideal for industrial automation and harsh environment applications including:

  • Industrial machinery and automation systems
  • Sensor and actuator connections in manufacturing
  • Transportation systems (trains, buses, vehicles)
  • Communication equipment and outdoor installations
  • Robotics and motion control systems

The connector's rugged design, environmental resistance, and reliable electrical performance make it suitable for demanding industrial applications where durability and consistent connectivity are essential.
