Home /Products/M12 Connectors/M12 Sensor Connectors with PVC Cable A Code Industrial Straight Connector IP67

M12 Sensor Connectors with PVC Cable A Code Industrial Straight Connector IP67

50
MOQ
Negotiable
Price
M12 Sensor Connectors with PVC Cable A Code Industrial Straight Connector IP67
Features Gallery Product Description Request A Quote
Features
Specifications
Wire Gauge: 3×0.34 (3×22AWG) PVC, Black
Contact Carrier Material: PA, Black
Seal Material: FPM/FKM
Cable Length: 1M/2M/3M/5M/10M/15M
Voltage: 250V
Rated Current: 4A
Mating Cycles: >100
Insulation Resistance: ≥100MΩ
Highlight:

industrial m12 connector

,

industrial m12 female connector

,

straight m12 connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1203M-5/P00K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M12 Sensor Connectors with PVC Cable A Code Industrial Straight Connector IP67
Product Attributes
Attribute Value
Wire gauge 3×0.34 (3×22AWG) PVC, Black
Contact carrier material PA, Black
Seal material FPM/FKM
Cable length 1M/2M/3M/5M/10M/15M
Voltage 250V
Rated current 4A
Mating cycles >100
Insulation resistance ≥100MΩ
Product Description

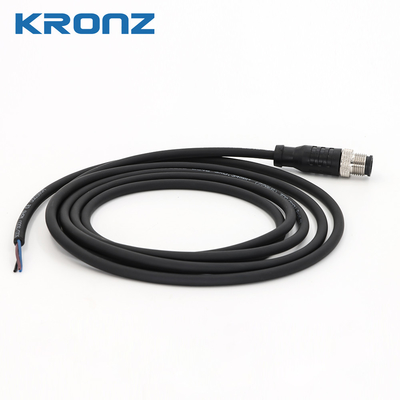

The M12 Connector with Pre-molded Cable is designed for harsh industrial environments, making it ideal for machinery, automation, robotics, and other demanding applications. Its durable construction ensures reliable performance in challenging conditions.

M12 Sensor Connectors with PVC Cable A Code Industrial Straight Connector IP67 0
Technical Specifications
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Degree of protection IP67

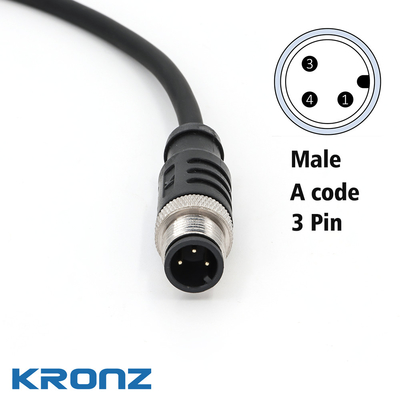

Pin Configuration
Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M12 Sensor Connectors with PVC Cable A Code Industrial Straight Connector IP67 1 1=BN
3=BU
4=BK		 A 4A 250V 3×0.34
(3×22AWG)
PVC, black		 Straight 5M M1203M-5/P00K
Support and Services

Our M12 Connector comes with comprehensive technical support and services:

  • Installation support and guidance
  • Product troubleshooting and diagnosis
  • Repairs and replacement services
  • Product documentation and user manuals
  • Training on product usage and best practices
  • Product customization for specific needs
  • Product testing and validation services
Frequently Asked Questions
Where is this product manufactured?
This product is manufactured in Guangdong, China.
Does this product have any certifications?
Yes, this product is CE certified.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 50.
Is the price of this product negotiable?
Yes, we offer different prices according to quantity.
How is this product packaged?
This product is packaged in polybag packing, export carton.
What is the delivery time for this product?
The delivery time is 5-8 working days for MOQ 50pcs. For larger quantities, please contact the seller.
What payment terms are accepted for this product?
We accept T/T, Western Union, and MoneyGram.
What is the supply ability of this product?
We can supply 100,000 pieces per month.
