Pre-assembled Cable Connector M12 PVC 3 Pin Male Unshielded A Code Circular Connectors
  • Name
  • Name

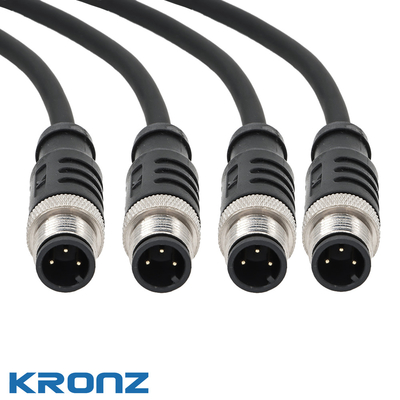

Pre-assembled Cable Connector M12 PVC 3 Pin Male Unshielded A Code Circular Connectors

Brand Name: KRONZ
Model Number: M1203M-2/P00K
MOQ: 50
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Degree Of Protection:
IP67
Pin:
3
Ambient Temperature:
-25~+85℃
Housing Material:
TPU, Black
Contact Carrier Material:
PA, Black
Seal Material:
FPM/FKM
Wire Color:
1=BN 3=BU 4=BK
Coding:
A
Supply Ability:
100000 pieces per month
Highlight:

circular m12 connector

,

circular m12 female connector

,

a code m12 connector

Product Description
Pre-assembled Cable Connector M12 PVC 3 Pin Male Unshielded A Code Circular Connectors
Product Attributes
Attribute Value
Degree of protection IP67
Pin 3
Ambient temperature -25~+85℃
Housing material TPU, Black
Contact carrier material PA, Black
Seal material FPM/FKM
Wire color 1=BN 3=BU 4=BK
Coding A
Product Description

The pre-assembled M12 cable connector features a durable PA (black) contact carrier and A coding to prevent mismatching. The FPM/FKM seal material provides excellent protection against liquids and dust with IP67 rating.

This 3-pin male connector is designed for industrial automation and sensor applications, offering reliable performance in harsh environments with easy installation.

Pre-assembled Cable Connector M12 PVC 3 Pin Male Unshielded A Code Circular Connectors 0
Technical Specifications
Specification Value
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Mating cycles >100
Pin Configuration
Pin Assignment Connection Method Wire Color Rated Current Voltage
Pre-assembled Cable Connector M12 PVC 3 Pin Male Unshielded A Code Circular Connectors 1 1=BN
3=BU
4=BK		 A 4A 250V
Applications

This M12 male connector is ideal for:

  • Industrial automation systems
  • Robotics applications
  • Control systems
  • Sensor networks in harsh environments
Support and Services
  • Expert technical support for product-related questions
  • Customized solutions for specific requirements
  • Comprehensive product documentation
  • Repair and maintenance services
