M12 Male Connector with Pre-assembled Unshielded Cable PVC 3 Pin Sensor Connectors

50
MOQ
Negotiable
Price
M12 Male Connector with Pre-assembled Unshielded Cable PVC 3 Pin Sensor Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Degree Of Protection: IP67
Rated Current: 4A
Standard: IEC 61076-2-101
Insulation Resistance: ≥100MΩ
Contact Carrier Material: PA, Black
Pollution Degree: 3
Contact Nut Material: Brass, Nickle-plated
Seal Material: FPM/FKM
Highlight:

ip67 m12 connector

,

ip67 m12 female connector

,

iec 61076-2-101 m12 connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1203M-1/P00K
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

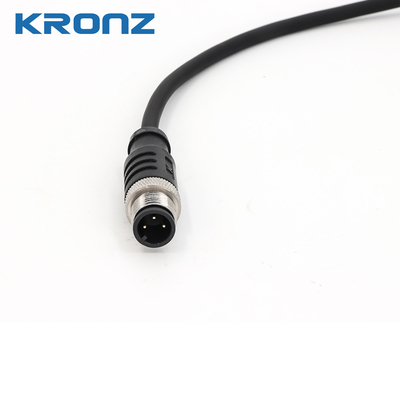

M12 Male Connector with Pre-assembled Unshielded Cable PVC 3 Pin Sensor Connectors
Product Attributes
Degree of protection IP67
Rated current 4A
Standard IEC 61076-2-101
Insulation resistance ≥100MΩ
Contact carrier material PA, Black
Pollution degree 3
Contact nut material Brass, Nickle-plated
Seal material FPM/FKM
Product Description

The M12 Male Connector with Pre-assembled Unshielded Cable is a high-quality 3-pin sensor connector compliant with IEC 61076-2-101 standards. Available in various cable lengths, this connector provides flexibility for diverse industrial applications.

Key features include:

  • Color-coded wires (1=BN, 3=BU, 4=BK) for easy identification and secure connections
  • Compact design for space-efficient installation
  • Robust construction suitable for harsh environments (IP67 protection, pollution degree 3)
  • 250V voltage rating for versatile applications
M12 Male Connector with Pre-assembled Unshielded Cable PVC 3 Pin Sensor Connectors 0
Technical Specifications
Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration
Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M12 Male Connector with Pre-assembled Unshielded Cable PVC 3 Pin Sensor Connectors 1 1=BN
3=BU
4=BK		 A 4A 250V 3×0.34 (3×22AWG)
PVC, black		 Straight 1M M1203M-1/P00K
Support and Services

We provide comprehensive technical support for our M12 Connector products, including:

  • Installation guidance and troubleshooting assistance
  • Custom design support for specific applications
  • Repair and maintenance services
  • Regular firmware updates for enhanced functionality
  • Training resources for optimal product utilization

Contact our technical team for any product-related inquiries or support needs.

Frequently Asked Questions
Where is this product manufactured?
This product is manufactured in Guangdong, China.
Does this product have any certifications?
Yes, this product is CE certified.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 50.
Is the price of this product negotiable?
Yes, we offer volume-based pricing.
How is this product packaged?
This product is packaged in polybag packing within export cartons.
What is the delivery time for this product?
Standard delivery time is 5-8 working days for MOQ (50 pieces). Contact us for larger quantity lead times.
What payment terms are accepted for this product?
We accept T/T, Western Union, and MoneyGram.
What is the supply ability of this product?
Production capacity is 100,000 pieces per month.
