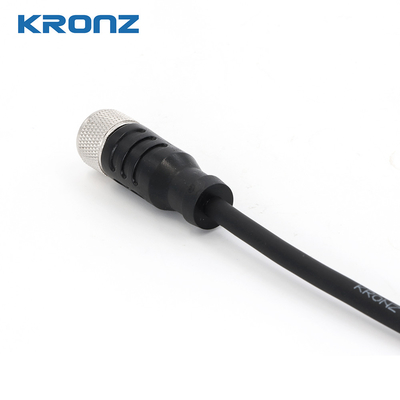

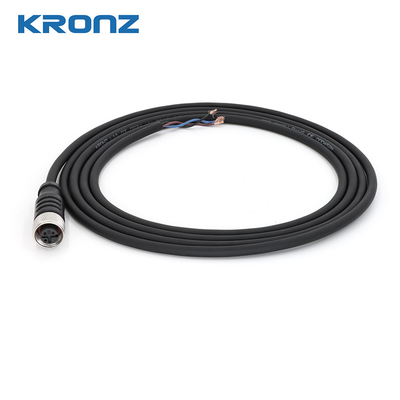

M12 Connector with 3 Pin Unshielded Cable for Harsh Environments up to 85.C

Brand Name:	KRONZ
Model Number:	M1204F-3/P00K
MOQ:	50
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Wire Color:

1=BN 2=WH 3=BU 4=BK

Voltage:

250V

Standard:

IEC 61076-2-101

Degree Of Protection:

IP67

Housing Material:

TPU, Black

Pollution Degree:

Pin:

Ambient Temperature:

-25~+85℃

Supply Ability:

100000 pieces per month

Highlight:

ip67 m12 connector

ip67 m12 female connector

iec 61076-2-101 m12 connector

Product Description

M12 Connector with 3 Pin Unshielded Cable for Harsh Environments up to 85°C

Key Specifications

Attribute	Value
Wire color	1=BN 2=WH 3=BU 4=BK
Voltage	250V
Standard	IEC 61076-2-101
Degree of protection	IP67
Housing material	TPU, Black
Pollution degree	3
Pin	4
Ambient temperature	-25~+85℃

Product Overview

The M12 Connector with Pre-molded Cable offers a time-saving solution for industrial installations, eliminating the need for additional wiring or assembly. Designed for harsh environments, it features durable TPU housing and reliable brass nickel-plated contacts.

Technical Specifications

Parameter	Specification
Standard	IEC 61076-2-101
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Configuration

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1=BN 2=WH 3=BU 4=BK	A	4A	250V	4×0.34 (4×22AWG) PVC, black	Straight	3M	M1204F-3/P00K

Applications

Industrial automation systems
Process control equipment
Robotics and machinery
Transportation systems
Harsh environment sensor connections

The M12 Connector is CE certified and designed for reliable performance in demanding conditions, featuring gold-plated contacts for optimal signal transmission and corrosion resistance.

Frequently Asked Questions

Where is this product manufactured?

This product is manufactured in Guangdong, China.

Does this product have any certifications?

Yes, this product is CE certified.

What is the minimum order quantity?

The minimum order quantity is 50 pieces.

Is the price negotiable?

Yes, we offer different prices according to quantity.

What is the packaging?

Polybag packing with export carton.

What is the delivery time?

5-8 working days for MOQ 50pcs (contact for larger quantities).

What payment methods are accepted?

T/T, Western Union, and .

What is the production capacity?

100,000 pieces per month.
