M12 Connector Unshielded 22AWG 4 Pin PA Contact Carrier M12 Panel Mount Connector

Brand Name:	KRONZ
Model Number:	M1204M-5/P00K
MOQ:	80
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Contact Carrier Material:

PA, Black

Pollution Degree:

Standard:

IEC 61076-2-101

Degree Of Protection:

Wire Color:

1=BN 3=BU 4=BK

Voltage:

Coding:

Insulation Resistance:

≥100MΩ

Supply Ability:

100000 pieces per month

Highlight:

ip67 m12 connector

ip67 m12 panel mount connector

iec 61076-2-101 m12 connector

Product Description

M12 Connector Unshielded 22AWG 4 Pin PA Contact Carrier M12 Panel Mount Connector

Product Attributes

Attribute	Value
Contact carrier material	PA, Black
Pollution degree	3
Standard	IEC 61076-2-101
Degree of protection	IP67
Wire color	1=BN 3=BU 4=BK
Voltage	250V
Coding	A
Insulation resistance	≥100MΩ

Product Description

The M12 Female Connector is a robust industrial automation component designed for panel mounting. Featuring a durable PA (black) contact carrier and IP67 protection rating, it ensures reliable performance in harsh environments with exposure to dust and water. With a 250V voltage rating and 4A current capacity, this connector is suitable for diverse industrial applications.

Technical Specifications

Parameter	Specification
Standard	IEC 61076-2-101
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100

Pin Configuration

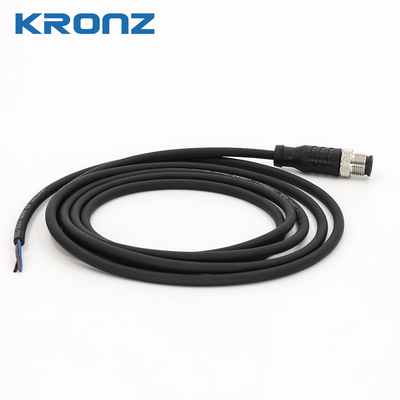

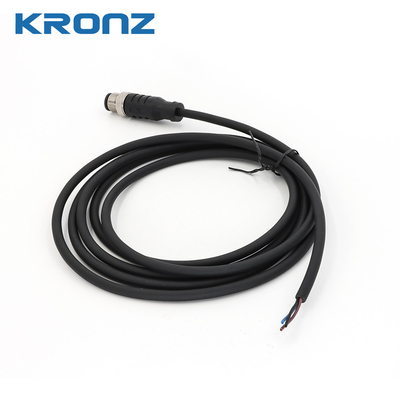

Product Images

Applications

The KRONZ M1204M-5/P00K M12 Circular Connector is designed for industrial automation applications including machinery, robotics, and sensor connections. With gold-plated brass contacts and IP67 protection, it delivers reliable performance in demanding environments. The 10M cable length and 250V rating make it versatile for various electrical connection needs.

Support Services

Our technical support team provides comprehensive assistance including product selection guidance, installation support, troubleshooting, and technical documentation. Services are available to all customers who have purchased our M12 Connector products.

Frequently Asked Questions

Where is this product manufactured?

This product is manufactured in Guangdong, China.

Does this product have any certifications?

Yes, this product is CE certified.

What is the minimum order quantity?

The minimum order quantity is 80 pieces.

What are the payment terms?

We accept T/T, Western Union, and MoneyGram.

What is the delivery time?

Standard delivery is 5-8 working days for MOQ (80 pieces). Larger quantities may require additional time.
