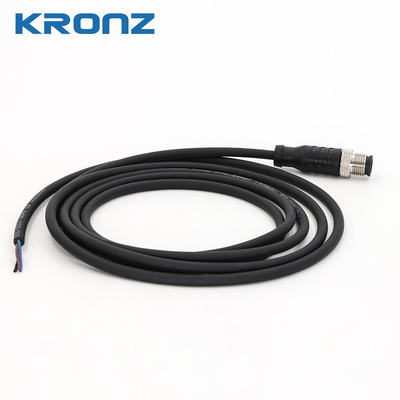

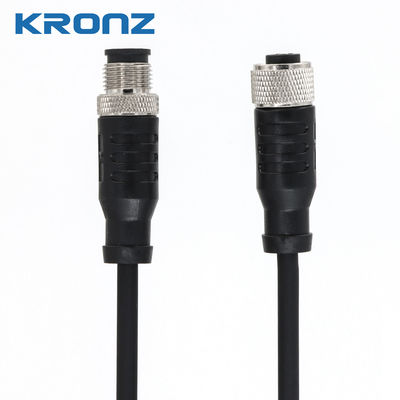

M12 Connector IP76 A Code Connector Pre-assembly 4 Pin Male Circular Connectors

Brand Name:	KRONZ
Model Number:	M1204M-2/P00K
MOQ:	80
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Seal Material:

FPM/FKM

Contact Nut Material:

Brass, Nickle-plated

Rated Current:

Cable Length:

10M

Ambient Temperature:

-25~+85℃

Contact Resistance:

≤5mΩ

Degree Of Protection:

IP67

Mating Cycles:

>100

Supply Ability:

100000 pieces per month

Highlight:

circular m12 connector

circular m12 female connector

a code m12 connector

Product Description

M12 Connector IP76 A Code Connector Pre-assembly 4 Pin Male Circular Connectors

Key Specifications

Attribute	Value
Seal material	FPM/FKM
Contact nut material	Brass, Nickle-plated
Rated current	4A
Cable length	10M
Ambient temperature	-25~+85℃
Contact resistance	≤5mΩ
Degree of protection	IP67
Mating cycles	>100

Product Overview

The M12 Sensor Connector is a pre-assembled cable connector featuring a 4-pin male straight socket, designed for harsh industrial environments. With a pollution degree rating of 3 and voltage rating of 250V, this durable connector is ideal for demanding applications.

Technical Specifications

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Pollution degree	3
Mating cycles	>100

Pin Configuration

Pin assignment	Connection method	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1=BN 2=WH 3=BU 4=BK	A	4A	250V	4×0.34 (4×22AWG) PVC, black	Straight	2M	M1204M-2/P00K

Applications

Designed for high-reliability applications, the M12 connector features IP67 protection against dust and water ingress, with FPM/FKM seals for chemical resistance. Ideal for industrial automation, sensor networks, and outdoor equipment requiring durable electrical connections.

Support & Services

Our product includes comprehensive technical support from industry experts to assist with installation, troubleshooting, and application-specific guidance.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Miguel

United States Jul 1.2026

Helpful (15)

Good quality M12 connector & cable/wire. Worked as expected.

United States Jun 23.2026

Helpful (68)

This is a high quality, industrial style connector. It's great for robotics or industrial controls where you need a water tight connection you can easily disconnect. I'm using it to connect a remote GPS serial port signal, and it's working great. It's a good value, and it's just as good quality as you will get from the big industrial electronics stores.

Cameron MacDonald

United States May 1.2026

Helpful (63)

Good quality connector and cable. Worked great for a control project I was doing and arrived faster than I could get it anywhere else. Real copper wire and brass pins. Solid housing and good strain relief. Very pleased.
