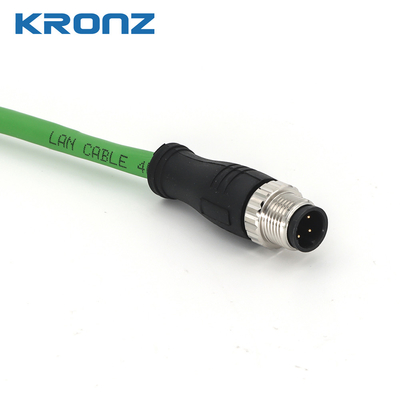

M12 IE Connector Industrial Male Circular Connectors D-Code 4 Pin Lan Cable Connector

Brand Name:	KRONZ
Model Number:	M1204DM-5-M1204DM/E301
MOQ:	50
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Contact Resistance:

≤5mΩ

Coding:

Pin:

Voltage:

60V

Cable:

5 Meter

Contact Nut Material:

Brass, Nickle-plated

Rated Current:

Connector:

M12 To M12

Supply Ability:

100000 pieces per month

Highlight:

industrial m12 connector

industrial m12 female connector

circular m12 connector

Product Description

M12 IE Connector Industrial Male Circular Connectors D-Code 4 Pin Lan Cable Connector

Product Attributes

Attribute	Value
Contact resistance	≤5mΩ
Coding	D
Pin	4
Voltage	60V
Cable	5 meter
Contact nut material	Brass, Nickle-plated
Rated current	2A
Connector	M12 to M12

Product Description

Ethernet M12 Connectors are engineered with premium materials to deliver reliable, long-lasting performance in demanding industrial environments. The FPM/FKM seal material provides exceptional resistance to heat, chemicals, and oils, while the nickel-plated brass contact nuts ensure superior corrosion resistance and electrical conductivity.

Technical Specifications

Specification	Detail
Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Configuration

Pin	Wire Color	Function
1	WH/OR	+TX
2	WH/GH	+RX
3	OR	-TX
4	GN	-RX

Packing Information

80 pcs M12 connectors per carton
Each connector individually packaged
Eco-friendly, recyclable packaging materials

Shipping: 5-8 business days. Rates calculated at checkout based on location and weight.

Industrial Applications

Industrial Robotics - Powers Ethernet/IP connections for real-time control of robotic arms and automated workstations.

Manufacturing Plant Automation - Streamlines connections between control panels, PLCs, and automation equipment.

Food Processing Facilities - Withstands rigorous cleaning processes while maintaining interference-free connections.

Assembly Line Systems - Integrates sensors and actuators for quality monitoring and speed control.

Automated Warehousing - Ensures stable connections in robotic and conveyor systems.

Renewable Energy - Essential for real-time data transmission in wind and solar installations.

Public Transit Systems - Provides reliable communication for passenger information and surveillance.

Pharmaceutical Production - Critical for environmental monitoring in sensitive areas.

Agricultural Automation - Connects monitoring equipment in smart farming applications.

Offshore Drilling - Engineered to withstand harsh marine environments.

About Kronz

Located in Guangzhou, Kronz specializes in high-efficiency industrial automation solutions. With advanced production equipment and a professional R&D team, we offer a comprehensive range of industrial products including connectors, sensors, power supplies, and networking equipment.

Our Advantages

Professional R&D team with extensive automation expertise
State-of-the-art production and testing facilities
24/7 technical support and customer service
Large capacity warehouse for bulk orders
Strategic Guangzhou location with diverse export options
