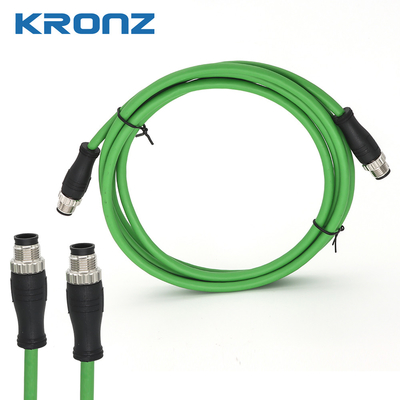

M12 Ethernet/IP Shielded Cable Connector X Code 0.5A 50V Dual Shielded 24AWG PVC Cable

Brand Name:	KRONZ
Model Number:	M1208XM-2-M1208XM/E601
MOQ:	50
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Seal Material:

FPM/FKM

Cable Length:

Wire Color:

1 = WH/OR 2 = OR 3 = WH/GN 4 = GN 5 = WH/BN 6 = BN 7 = WH/BU 8 = BU

Insulation Resistance:

≥100MΩ

Wire Gauge:

4×2×0.25,shielded (4×2×24AWG)

Cable Color:

Yellowish Green

Cable Material:

PVC

Cable Outlet:

Straight

Supply Ability:

100000 pieces per month

Highlight:

straight m12 connector

straight m12 female connector

Product Description

M12 Ethernet/IP Shielded Cable Connector X Code 0.5A 50V Dual Shielded 24AWG PVC Cable

Product Attributes

Attribute	Value
Seal material	FPM/FKM
Cable length	2M
Wire color	1 = WH/OR 2 = OR 3 = WH/GN 4 = GN 5 = WH/BN 6 = BN 7 = WH/BU 8 = BU
Insulation resistance	≥100MΩ
Wire gauge	4×2×0.25,shielded (4×2×24AWG)
Cable color	yellowish green
Cable material	PVC
Cable outlet	Straight

Product Description

Industrial Grade M12 Ethernet Cable - Shielded and pre-assembled, this 4/8 pin cable supports D/A/X coding for reliable connections in rugged environments.

Technical Specifications

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Configuration

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = WH/OR 2 = OR 3 = WH/GN 4 = GN 5 = WH/BN 6 = BN 7 = WH/BU 8 = BU	X	0.5A	50V	4×2×0.25, shielded (4×2×24AWG) yellowish green, PVC,OD=8.0	Straight	2M	M1208XM-2-M1208XM/E601

Packing Information

80 pcs M12 connectors per carton
Each connector is individually packaged
Packaging material is eco-friendly and recyclable

Shipping Details

Ships within 5-8 business days
Shipping options include standard and expedited
Shipping rates calculated at checkout based on location and weight

Industrial Applications

Manufacturing Plant Automation - Used to streamline connections between control panels, PLCs, and other automation equipment in high-speed production settings.

Food Processing Facilities - Provides a shielded, interference-free Ethernet/IP link that withstands rigorous cleaning processes.

Assembly Line Systems - Integrates seamlessly into assembly lines, linking sensors and actuators to monitor quality and control speed.

Automated Warehousing - Ensures stable connections in robotic and conveyor systems for efficient sorting and inventory tracking.

Renewable Energy Installations - Essential for real-time data transmission in wind farms and solar power stations, enhancing energy monitoring and management.

Public Transit Systems - Provides Ethernet/IP communication in passenger information, ticketing, and surveillance systems in rail and metro networks.

Pharmaceutical Production Lines - Critical for maintaining precise environmental monitoring and control in sensitive production areas.

HVAC Building Systems - Ideal for centralizing control and monitoring of heating, ventilation, and air conditioning systems in large facilities.

Mining Operations - Supports Ethernet/IP networks underground, ensuring communication between heavy equipment and control rooms.

Energy Grid Substations - Facilitates communication in high-voltage environments, linking sensors and relays to centralized control systems.

Warehouse Automation - Enables data communication between RFID systems, robotic pickers, and automated guided vehicles (AGVs).

Data Centers - Provides robust connectivity between network switches, enabling efficient data flow in high-density server environments.
