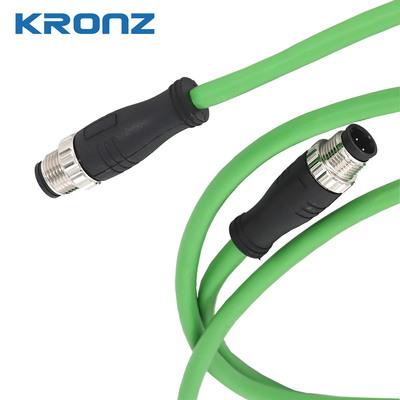

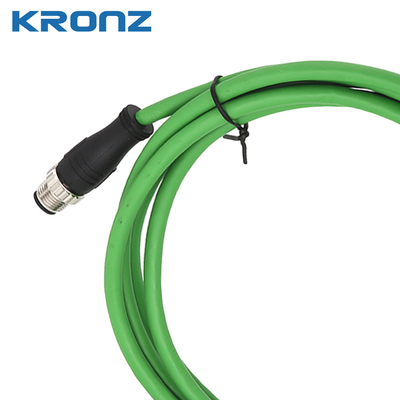

M12 Shielded Ethernet Cable Connector A Code 4 x 2 x 24AWG PUR Drag Chain OD=6.9

Brand Name:	KRONZ
Model Number:	M1208M-10-M1208M/E531
MOQ:	50
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Wire Color:

1 = WH/BU 2 = WH/BN 3 = BN 4 = OR 5 = WH/GN 6 = WH/OR 7 = BU 8 = GN

Coding:

Seal Material:

FPM/FKM

Rated Current:

1.5a

Cable Material:

PUR

Cable Diamension:

6.9

Shielded:

Yes

Contact Carrier Material:

PA, Black

Supply Ability:

100000 pieces per month

Highlight:

a code m12 connector

a code m12 female connector

Product Description

M12 Shielded Ethernet Cable Connector A Code 4 x 2 x 24AWG PUR Drag Chain OD=6.9

Product Attributes

Wire color	1 = WH/BU 2 = WH/BN 3 = BN 4 = OR 5 = WH/GN 6 = WH/OR 7 = BU 8 = GN
Coding	A
Seal material	FPM/FKM
Rated current	1.5a
Cable material	PUR
Cable dimension	6.9
Shielded	Yes
Contact carrier material	PA, Black

Product Description

High-Performance M12 Shielded Cable

For Ethernet/IP, this pre-assembled connector is available with 4 and 8 pin options, featuring D/A/X coding.

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Assignment

Wire color	1 = WH/BU 2 = WH/BN 3 = BN 4 = OR 5 = WH/GN 6 = WH/OR 7 = BU 8 = GN
Coding	A
Rated current	1.5A
Voltage	30V
Wire gauge	4×2×0.14, shielded (4×2×26AWG)
Cable outlet	Straight
Length	10M
Model No.	M1208M-10-M1208M/E531

Packing Information

Product Packaging:

80 pcs M12 connectors per carton
Each connector is individually packaged
Packaging material is eco-friendly and recyclable

Shipping:

Ships within 5-8 business days
Shipping options include standard and expedited
Shipping rates calculated at checkout based on location and weight

Application

Manufacturing Plant Automation - Used to streamline connections between control panels, PLCs, and other automation equipment in high-speed production settings.

Food Processing Facilities - Provides a shielded, interference-free Ethernet/IP link that withstands rigorous cleaning processes.

Assembly Line Systems - Integrates seamlessly into assembly lines, linking sensors and actuators to monitor quality and control speed.

Automated Warehousing - Ensures stable connections in robotic and conveyor systems for efficient sorting and inventory tracking.

Renewable Energy Installations - Essential for real-time data transmission in wind farms and solar power stations, enhancing energy monitoring and management.

Public Transit Systems - Provides Ethernet/IP communication in passenger information, ticketing, and surveillance systems in rail and metro networks.

Pharmaceutical Production Lines - Critical for maintaining precise environmental monitoring and control in sensitive production areas.

HVAC Building Systems - Ideal for centralizing control and monitoring of heating, ventilation, and air conditioning systems in large facilities.

Mining Operations - Supports Ethernet/IP networks underground, ensuring communication between heavy equipment and control rooms.

Energy Grid Substations - Facilitates communication in high-voltage environments, linking sensors and relays to centralized control systems.

Warehouse Automation - Enables data communication between RFID systems, robotic pickers, and automated guided vehicles (AGVs).

Data Centers - Provides robust connectivity between network switches, enabling efficient data flow in high-density server environments.
