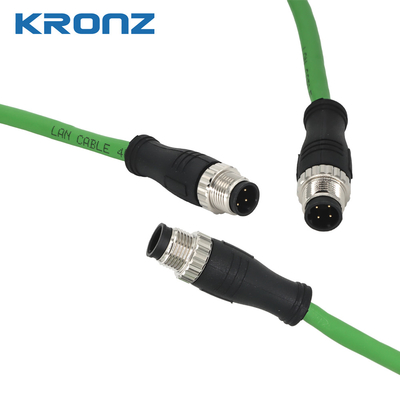

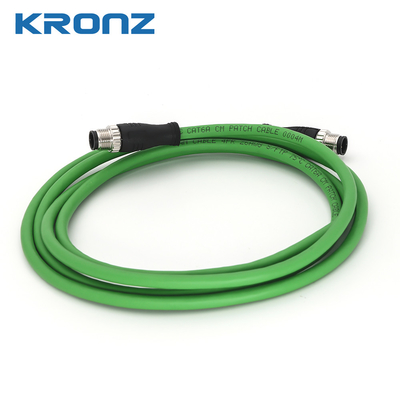

LAN M12 Connector Waterproof IE Cable for Ethernet 8 Pin A-coding 4 x 2 x 26AWG PVC
Product Attributes
| Attribute | Value |
| Housing material | TPU, Black |
| Wire gauge | 4×2×0.14,shielded (4×2×26AWG) |
| Cable material | Blueish green, PVC,OD=6.2 |
| Insulation resistance | ≥100MΩ |
| Mating cycles | >100 |
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, Nickle-plated |
| Voltage | 30V |
Product Description
M12 Connector Cable for Ethernet/IP - Shielded and pre-assembled, available with 4-pin and 8-pin D/A/X coding configurations for versatile industrial use.
Technical Data
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
Pin Assignment
| Pin assignment | Wire color | Code | Rated current | Voltage | Wire gauge | Cable outlet | Length | Model No. |
| 1 = WH/BU
2 = WH/BN
3 = BN
4 = OR
5 = WH/GN
6 = WH/OR
7 = BU
8 = GN | A | 1.5A | 30V | 4×2×0.14, shielded (4×2×26AWG) blueish green, PUR,drag chain, OD=6.9 | Straight | 2M | M1208M-2-M1208M/E531 |
Packing Information
Product Packaging:
- 80 pcs M12 connectors per carton
- Each connector is individually packaged
- Packaging material is eco-friendly and recyclable
Shipping:
- Ships within 5-8 business days
- Shipping options include standard and expedited
- Shipping rates calculated at checkout based on location and weight
Application
Industrial Robotics
Powers Ethernet/IP connections for real-time control of robotic arms and automated workstations.
Manufacturing Plant Automation
Used to streamline connections between control panels, PLCs, and other automation equipment in high-speed production settings.
Assembly Line Systems
Integrates seamlessly into assembly lines, linking sensors and actuators to monitor quality and control speed.
Automated Warehousing
Ensures stable connections in robotic and conveyor systems for efficient sorting and inventory tracking.
Renewable Energy Installations
Essential for real-time data transmission in wind farms and solar power stations, enhancing energy monitoring and management.
Public Transit Systems
Provides Ethernet/IP communication in passenger information, ticketing, and surveillance systems in rail and metro networks.
Pharmaceutical Production Lines
Critical for maintaining precise environmental monitoring and control in sensitive production areas.
Heavy Machinery Operation
Used in construction machinery to connect diagnostic systems and ensure operator safety and equipment functionality.
HVAC Building Systems
Ideal for centralizing control and monitoring of heating, ventilation, and air conditioning systems in large facilities.
Mining Operations
Supports Ethernet/IP networks underground, ensuring communication between heavy equipment and control rooms.
Energy Grid Substations
Facilitates communication in high-voltage environments, linking sensors and relays to centralized control systems.
Smart Cities
Integrated into smart city infrastructure, including street lighting, traffic management, and public safety networks.
