M12 Connector with Pre-assembled IE Cable 5 Meter 4×2×0.14 Shielded 26AWG LAN 8 Pin

Brand Name:	KRONZ
Model Number:	M1208M-5-M1208M/E501
MOQ:	50
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Rated Current:

1.5A

Seal Material:

FPM/FKM

Contact Nut Material:

Brass, Nickle-plated

Pollution Degree:

Ambient Temperature:

-25~+85℃

Cable Material:

PVC

Voltage:

30V

Contact Resistance:

≤5mΩ

Supply Ability:

100000 pieces per month

Highlight:

26AWG M12 Connector

8 Pin M12 Connector

Pre assembled IE Cable M12 Connector

Product Description

M12 Connector with Pre-assembled IE Cable 5 Meter 4×2×0.14 Shielded 26AWG LAN 8 Pin

Product Attributes

Attribute	Value
Rated current	1.5A
Seal material	FPM/FKM
Contact nut material	Brass, Nickle-plated
Pollution degree	3
Ambient temperature	-25~+85℃
Cable Material	PVC
Voltage	30V
Contact resistance	≤5mΩ

Product Description

Premium M12 Pre-assembled Cable - Engineered for Ethernet/IP, featuring 4 and 8 pin shielded connectors with D/A/X coding for stable, interference-free performance.

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

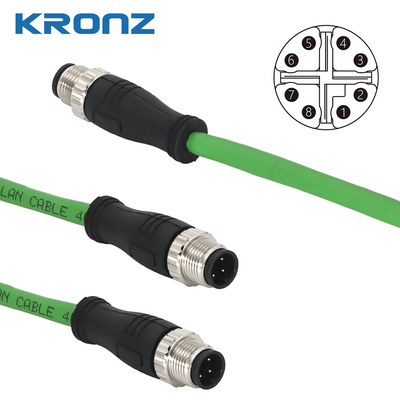

Pin Assignment

Pin assignment	Wire color	Code	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = WH/BU 2 = WH/BN 3 = BN 4 = OR 5 = WH/GN 6 = WH/OR 7 = BU 8 = GN	A	1.5A	30V	4×2×0.14, shielded (4×2×26AWG) blueish green, PVC,OD=6.2	Straight	5M	M1208M-5-M1208M/E501

Packing Information

80 pcs M12 connectors per carton
Each connector is individually packaged
Packaging material is eco-friendly and recyclable

Shipping: Ships within 5-8 business days. Shipping options include standard and expedited. Shipping rates calculated at checkout based on location and weight.

Application

Network Integration of Medical Equipment - In modern hospitals, networking medical equipment is essential for improving healthcare efficiency and quality. Green network cables with M12 connectors at both ends can connect various large medical devices, such as CT scanners, MRI machines, and X-ray machines, to the hospital information system (HIS) and the Picture Archiving and Communication System (PACS). This allows doctors to remotely access test results and images for diagnosis and case analysis. Additionally, data on equipment operating status can be transmitted through the cables to the maintenance department, facilitating timely maintenance and troubleshooting.
