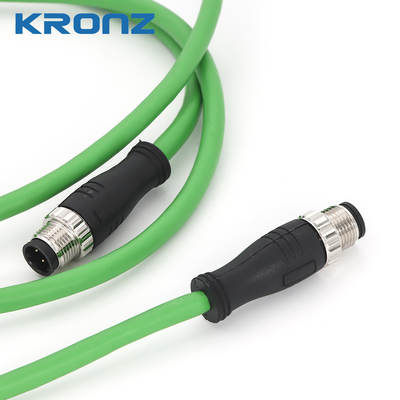

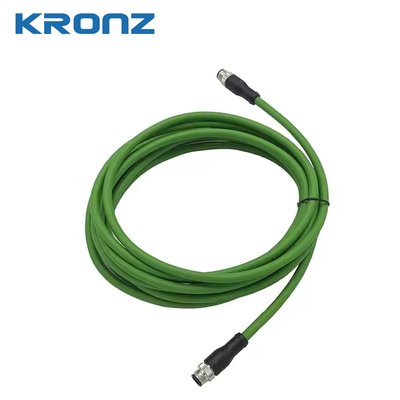

M12 Lan Cable Connector 2×2×0.14,shielded 2×2×26AWG blueish green, PUR,drag chain, OD=6.2

50
MOQ
Negotiable
Price
M12 Lan Cable Connector 2×2×0.14,shielded 2×2×26AWG blueish green, PUR,drag chain, OD=6.2
Features Gallery Product Description Request A Quote
Features
Specifications
Contact Surface Material: Brass, Gold-plated
Insulation Resistance: ≥100MΩ
Wire: 2 X 2 X 24 AWG
Code: D
Shield: Yes
Cable: 2 M
Cable Outlet: Straight
Highlight:

straight m12 connector

,

straight m12 female connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1204DM-2-M1204DM/E331
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M12 LAN Cable Connector 2×2×0.14, Shielded 2×2×26AWG Blueish Green, PUR, Drag Chain, OD=6.2
Product Attributes
Attribute Value
Contact surface material Brass, Gold-plated
Insulation resistance ≥100MΩ
Wire 2 x 2 x 24 AWG
Code D
Shield Yes
Cable 2 m
Cable outlet Straight
Product Description
Reliable M12 Ethernet Connector - Shielded 4/8 pin cable, pre-assembled for quick installation, providing D/A/X coding for efficient and secure networking.
M12 Lan Cable Connector 2×2×0.14,shielded 2×2×26AWG blueish green, PUR,drag chain, OD=6.2 0 M12 Lan Cable Connector 2×2×0.14,shielded 2×2×26AWG blueish green, PUR,drag chain, OD=6.2 1
Technical Specifications
Standard IEC 61076-2-101
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment & Cable Details
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M12 Lan Cable Connector 2×2×0.14,shielded 2×2×26AWG blueish green, PUR,drag chain, OD=6.2 2 1 = WH/OR(+tx)
2 = WH/GH(+rx)
3 = OR(-tx)
4 = GN(-rx) 		D 1.5A 60V 2×2×0.14,shielded (2×2×26AWG) Blueish green, PUR, drag chain OD=6.2 Straight 5M M1204DM-5-M1204DM/E331
M12 Lan Cable Connector 2×2×0.14,shielded 2×2×26AWG blueish green, PUR,drag chain, OD=6.2 3 M12 Lan Cable Connector 2×2×0.14,shielded 2×2×26AWG blueish green, PUR,drag chain, OD=6.2 4
