Name: IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: M1204DM-10-M1204DM/E331
Availability: InStock

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Contact Surface Material: Brass, Gold-plated

Insulation Resistance: ≥100MΩ

Wire OD: 6.2

Current: 1.5A

Cable: Shield, 10m

Seal Material: FPM

Voltage: 60V

Cable Length: 10 Meter

Highlight:

Male Circular Connector M12 Connector

IE Shield Cable M12 Connector

M12 Connector 4 Pin

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: M1204DM-10-M1204DM/E331

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

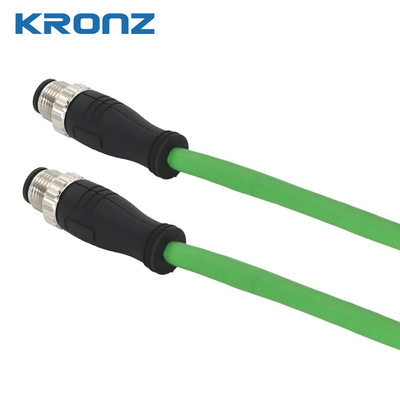

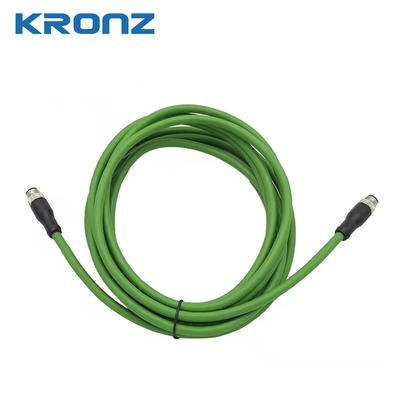

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

Product Description

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

Product Description

Reliable M12 Ethernet Connector – Shielded 4/8 pin cable, pre-assembled for quick installation, providing D/A/X coding for efficient and secure networking.

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector 0

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector 1

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment

Wire color

Coding

Rated current

Voltage

Wire gauge

Cable outlet

Length

Model No.

1 = WH/OR(+tx)
2 = WH/GH(+rx0
3 = OR(-tx)

4 = GN(-rx)

1.5A

60V

2×2×0.14,shielded
(2×2×26AWG)
Blueish green,
PUR,drag chain
OD=6.2

Straight

M1204DM-10-M1204DM/E331

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector 3

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector 4

Company Profile

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector 5

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector 6

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector 7

A: The payment terms accepted for this product are T/T, Western Union, and MoneyGram.

Q: What is the supply ability of this product?

A: The supply ability of this product is 100000 pieces per month.
