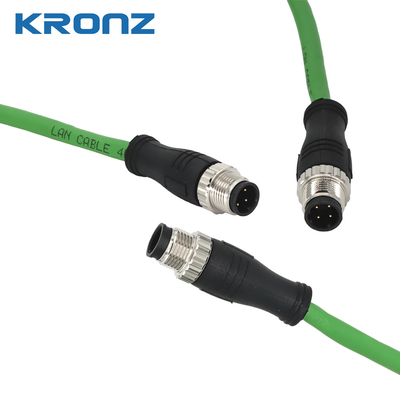

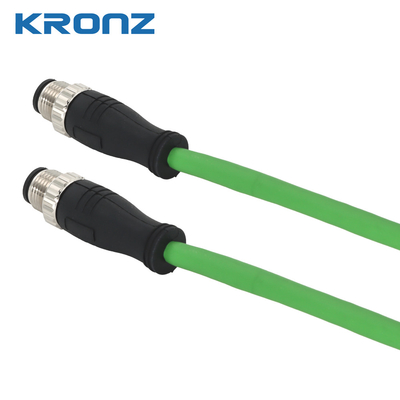

M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector

Brand Name:	KRONZ
Model Number:	M1204DM-10-M1204DM/E331
MOQ:	50
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union,

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Name:

IE Connector

Wire Gauge:

2 X 2 X 0.25, Shielded

Rated Current:

1.5A

Standard:

IEC 61076-2-101

Contact:

M12 To M12 4 Pin

Waterproof:

IP67

Cable:

Blueish Green

Supply Ability:

100000 pieces per month

Highlight:

Green Dual Shield Ethernet Cable

4 Pin Connector M12 IE Connector

M12 IE Connector PUR Drag Chain

Product Description

M12 IE Connector PUR Drag Chain Green Dual Shield Ethernet Cable 4 Pin Connector

Product Attributes

Attribute	Value
Name	IE Connector
Wire gauge	2 x 2 x 0.25, shielded
Rated current	1.5A
Standard	IEC 61076-2-101
Contact	M12 to M12 4 Pin
Waterproof	IP67
Cable	Blueish green

Product Description

Industrial M12 Connector IE Cable - Pre-assembled and shielded for Ethernet/IP, featuring both 4-pin and 8-pin variants with D/A/X coding flexibility.

Technical Specifications

Specification	Value
Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Configuration

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = WH/OR(+tx) 2 = WH/GH(+rx) 3 = OR(-tx) 4 = GN(-rx)	D	1.5A	60V	2×2×0.14,shielded (2×2×26AWG) Blueish green, PUR,drag chain OD=6.2	Straight	10M	M1204DM-10-M1204DM/E331
