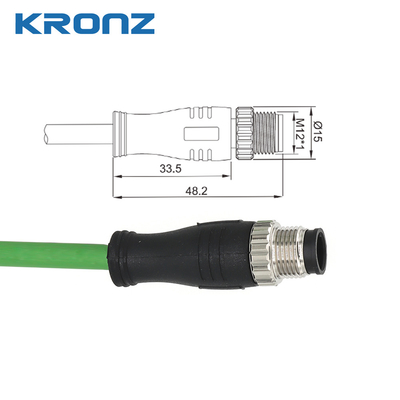

M12 Connector Ethernet / IP Dual Shielded Cable X Code 0.5A 50V 24AWG PVC 5 Meter Cable
Product Specifications
Wire color
1 = WH/OR 2 = OR 3 = WH/GN 4 = GN 5 = WH/BN 6 = BN 7 = WH/BU 8 = BU
Insulation resistance
≥100MΩ
Wire gauge
4×2×0.25,shielded (4×2×24AWG)
Cable color
yellowish green
Technical Specifications
| Standard |
IEC 61076-2-101 |
| Contact nut material |
Brass, nickle-plated |
| Contact surface material |
Brass, gold-plated |
| Contact carrier material |
PA, black |
| Housing material |
TPU, black |
| Seal material |
FPM/FKM |
| Insulation resistance |
≥100MΩ |
| Contact resistance |
≤5mΩ |
| Pollution degree |
3 |
| Ambient temperature |
-25~+85℃ |
| Mating cycles |
>100 |
| Degree of protection |
IP67 |
Pin Configuration
| Pin assignment |
Wire color |
Coding |
Rated current |
Voltage |
Wire gauge |
Cable outlet |
Length |
Model No. |
|
1 = WH/OR
2 = OR
3 = WH/GN
4 = GN
5 = WH/BN
6 = BN
7 = WH/BU
8 = BU |
X |
0.5A |
50V |
4×2×0.25, shielded (4×2×24AWG) yellowish green, PVC,OD=8.0 |
Straight |
5M |
M1208XM-5-M1208XM/E601 |
Packing Information
- 80 pcs M12 connectors per carton
- Each connector is individually packaged
- Packaging material is eco-friendly and recyclable
Shipping Information
Ships within 5-8 business days. Shipping options include standard and expedited. Shipping rates calculated at checkout based on location and weight.
Industrial Applications
Precision Assembly Lines
The M12 connector ensures reliable Ethernet/IP communication across robotic arms and conveyor systems, driving accuracy and efficiency in production lines.
Automotive Paint Shops
With its shielding against electromagnetic interference, this connector cable keeps Ethernet/IP data flow stable, even in the high-voltage environment of paint application systems.
Food and Beverage Processing
Hygienic design and strong shielding make it ideal for food-safe environments, ensuring smooth data transfer for automated bottling and packaging lines.
Industrial Welding Stations
Withstand high temperatures and interference while connecting controllers and sensors, helping maintain safety and productivity in welding areas.
Smart Agriculture Systems
Provides dependable Ethernet/IP connectivity for smart farming applications, from moisture sensors to automated tractors, supporting real-time data collection in the field.
About Kronz
Kronz is a manufacturing enterprise located in Zengcheng District, Guangzhou City. We focus on providing customers with high-efficiency industrial automation solutions and related industrial products. After many years of innovation and development, Kronz has complete product processing equipment and a professional team proficient in various automation technologies.
In order to improve the quality of products and production efficiency, we continue to introduce advanced production equipment and technology, strengthen investment in research and development. At present, our main products include Industrial Connectors, Inductive Sensors, Capacitive Sensors, Photoelectric Sensors, Ultrasonic Sensors, Industrial power supplies, Industrial fieldbus, RFID recognition systems, Industrial Ethernet Switches.
We not only produce the orders of standard products, but also have the ability to make customized production based on customer design drawings or samples.
Adhering to the principle of mutual benefit, we provide our customers with competitive prices, and perfect after-sales service. Kronz's products have been sold in multiple countries and have won the trust and praise of customers.
Kronz expects to cooperation with you.
Our Advantages
- Our team: Kronz is a team with professional R&D capabilities.
- Our factory: We has the latest production equipment and testing instruments, capable of producing more professional products.
- Our technical support: Customer service provides 24-hour online service, and communicate with technical personnel at any time to solve technical problems.
- Our warehouse: We have large capacity warehouse which can provide customers with storage for large quantities of orders.
- Our location: Our factory is located in Guangzhou, close to Hong Kong, with convenient local transportation, so that export transportation methods are diverse, such as by sea, by air, by railway, and by land.
Shipping Methods
- Samples and small orders can be shipped with fast shipment method, by air and by express.
- Bulk order will ship by sea, by air, by train, by truck etc.
- We also can send the goods to your agent warehouse.
- If you need any more shipping method, please feel free to contact with us.
Frequently Asked Questions
Q1: Are you a manufacturer?
A1: Yes, we are an experienced manufacturer with our research and development, several production line and in-house lab.
Q2: Do you accept sample order?
A2: Yes, we do. You can place a sample order with us to test our superior quality and services.
Q3: Could you produce customized produces?
A3: Yes, we can produce base on customer provided sample or technical drawings. We also can offer customized logo and package design for mass production.
Q4: What is your terms of payment?
A4: T/T payment, 30%-50% deposit, balance before shipment.
Q5: What is your lead time after payment?
A5: Normally, 3-5 working days for sample order, 10-15 working days for mass production. If your project involves new molds, lead time is subject to custom product complex.
Q6: Do you offer guarantee for the products?
A6: Yes, we offer 2-3 years' warranty.
Q7: How do you control the quality?
A7: Quality is priority. We have professional quality inspections in every production process to strictly control the products. A final quality inspection will be conducted on the finished products before packaging. Our factory has gained ISO9001, GJB9001, QPL ISO14001, certificates.
