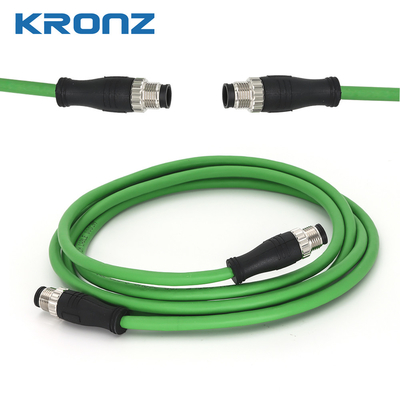

M12 Lan Cable Connector For Ethernet / IP Dual Shield 4 X 2 X 24AWG Yellowish Green OD=8.0
Product Specifications
| Name |
Ethernet/IP Connector |
| Contact |
M12 to M12 |
| Pin |
8 Pin |
| Wire color |
1 = WH/OR 2 = OR 3 = WH/GN 4 = GN 5 = WH/BN 6 = BN 7 = WH/BU 8 = BU |
| Wire gauge |
4×2×0.25,shielded (4×2×24AWG) |
| Cable |
Yellowish green, drag chain |
| Cable material |
PVC, OD=8.0 |
| Voltage |
30V |
Product Description
M12 Connectivity - A shielded, pre-assembled Ethernet/IP cable with versatile D/A/X coding options, available in 4-pin and 8-pin variants.
Technical Data
| Standard |
IEC 61076-2-101 |
| Contact nut material |
Brass, nickle-plated |
| Contact surface material |
Brass, gold-plated |
| Contact carrier material |
PA, black |
| Housing material |
TPU, black |
| Seal material |
FPM/FKM |
| Insulation resistance |
≥100MΩ |
| Contact resistance |
≤5mΩ |
| Pollution degree |
3 |
| Ambient temperature |
-25~+85℃ |
| Mating cycles |
>100 |
| Degree of protection |
IP67 |
Pin Assignment
| Pin |
Wire color |
Coding |
Rated current |
Voltage |
Wire gauge |
Cable outlet |
Length |
Model No. |
|
1 = WH/OR
2 = OR
3 = WH/GN
4 = GN
5 = WH/BN
6 = BN
7 = WH/BU
8 = BU |
X |
0.5A |
50V |
4×2×0.25, shielded (4×2×24AWG) yellowish green, PVC, drag chain, OD=8.0 |
Straight |
5M |
M1208XM-5-M1208XM/E621 |
Packing Information
- 80 pcs M12 connectors per carton
- Each connector is individually packaged
- Packaging material is eco-friendly and recyclable
Shipping
- Ships within 5-8 business days
- Shipping options include standard and expedited
- Shipping rates calculated at checkout based on location and weight
Applications
Automated Warehousing
Ensures stable connections in robotic and conveyor systems for efficient sorting and inventory tracking.
Renewable Energy Installations
Essential for real-time data transmission in wind farms and solar power stations, enhancing energy monitoring and management.
Public Transit Systems
Provides Ethernet/IP communication in passenger information, ticketing, and surveillance systems in rail and metro networks.
Pharmaceutical Production Lines
Critical for maintaining precise environmental monitoring and control in sensitive production areas.
Agricultural Automation
Connects monitoring equipment and automated devices in smart farming, ensuring efficient irrigation and crop management.
Offshore Drilling Rigs
Engineered to withstand the harsh environment of offshore platforms, connecting monitoring and control devices.
Heavy Machinery Operation
Used in construction machinery to connect diagnostic systems and ensure operator safety and equipment functionality.
