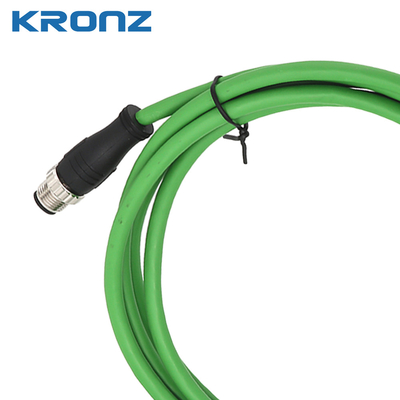

M12 Ethernet / IP Connector Dual Shield 4 X 2 X 0.25 Yellowish Green PVC Cable 10 Meter
Product Specifications
| Attribute |
Value |
| Description |
Ethernet/IP Connector |
| Contact |
M12 to M12 |
| Pin |
8 Pin |
| Wire color |
1 = WH/OR 2 = OR 3 = WH/GN 4 = GN 5 = WH/BN 6 = BN 7 = WH/BU 8 = BU |
| Wire gauge |
4×2×0.25,shielded (4×2×24AWG) |
| Cable color |
Yellowish green |
| Cable material |
PVC |
| Cable dimension |
8.0 |
Product Description
M12 Ethernet Connector with Shielding
Pre-assembled cable for efficient setup, featuring 4 and 8 pin D/A/X coding options for secure Ethernet/IP connections.
Technical Data
| Standard |
IEC 61076-2-101 |
| Contact nut material |
Brass, nickle-plated |
| Contact surface material |
Brass, gold-plated |
| Contact carrier material |
PA, black |
| Housing material |
TPU, black |
| Seal material |
FPM/FKM |
| Insulation resistance |
≥100MΩ |
| Contact resistance |
≤5mΩ |
| Pollution degree |
3 |
| Ambient temperature |
-25~+85℃ |
| Mating cycles |
>100 |
| Degree of protection |
IP67 |
Pin Assignment
| Pin assignment |
Wire color |
Coding |
Rated current |
Voltage |
Wire gauge |
Cable outlet |
Length |
Model No. |
|
1 = WH/OR
2 = OR
3 = WH/GN
4 = GN
5 = WH/BN
6 = BN
7 = WH/BU
8 = BU |
X |
0.5A |
50V |
4×2×0.25, shielded (4×2×24AWG) yellowish green, PVC, drag chain, OD=8.0 |
Straight |
10M |
M1208XM-10-M1208XM/E621 |
Packing Information
Product Packaging:
- 80 pcs M12 connectors per carton
- Each connector is individually packaged
- Packaging material is eco-friendly and recyclable
Shipping:
- Ships within 5-8 business days
- Shipping options include standard and expedited
- Shipping rates calculated at checkout based on location and weight
Application
Industrial Robotics - Powers Ethernet/IP connections for real-time control of robotic arms and automated workstations.
Manufacturing Plant Automation - Used to streamline connections between control panels, PLCs, and other automation equipment in high-speed production settings.
Food Processing Facilities - Provides a shielded, interference-free Ethernet/IP link that withstands rigorous cleaning processes.
Assembly Line Systems - Integrates seamlessly into assembly lines, linking sensors and actuators to monitor quality and control speed.
Automated Warehousing - Ensures stable connections in robotic and conveyor systems for efficient sorting and inventory tracking.
Renewable Energy Installations - Essential for real-time data transmission in wind farms and solar power stations, enhancing energy monitoring and management.
Public Transit Systems - Provides Ethernet/IP communication in passenger information, ticketing, and surveillance systems in rail and metro networks.
Pharmaceutical Production Lines - Critical for maintaining precise environmental monitoring and control in sensitive production areas.
