Name: M12 Connector Profinet PVC Shielded Cable 4 Pin D-code Pre-assembled Circular Connector
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: M1204DMA-2/E10K
Availability: InStock

M12 Connector Profinet PVC Shielded Cable 4 Pin D-code Pre-assembled Circular Connector

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Cable: PROFINET PVC Cable

Coding: D-Code

Housing: TPU

Current: 4A

Wire Color: 1 = Yellow(+tx) 2 = White(+rx) 3 = Orange(-tx) 4 = Blue(-rx)

OD: 6.5

Cable Color: Yellowish Green

Shielded: Yes

Highlight:

Pre-assembled M12 Connector

M12 Connector PVC Shielded Cable

4 Pin M12 Connector

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: KRONZ

Certification: CE

Model Number: M1204DMA-2/E10K

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

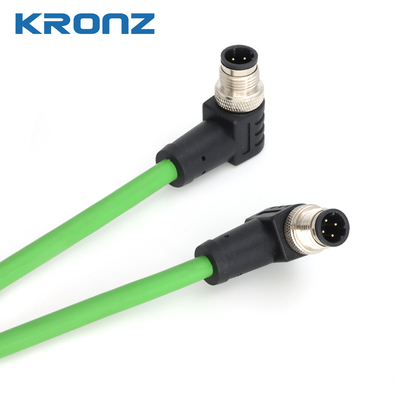

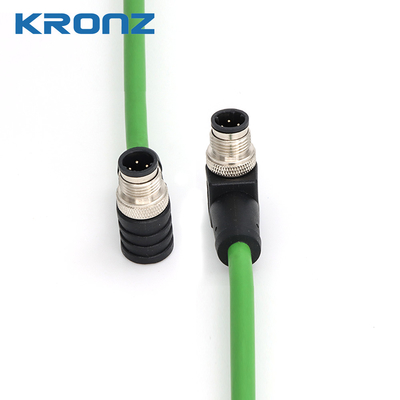

M12 Connector Profinet PVC Shielded Cable 4 Pin D-code Pre-assembled Circular Connector

Product Description

M12 Connector Profinet PVC Shielded Cable 4 Pin D-code Pre-assembled Circular Connector

Product Description

The M12 IE cable is specifically designed for industrial environments, featuring high protection performance, strong durability, and excellent anti-interference capabilities. M12 connectors are widely used in industrial automation, especially in environments that require high reliability and resistance to vibration. The main characteristic of M12 IE cables is that they comply with PROFINET standards and are made from high-quality materials to ensure stable signal transmission.

M12 Connector Profinet PVC Shielded Cable 4 Pin D-code Pre-assembled Circular Connector 0

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = Yellow(+tx) 2 = White(+rx) 3 = Orange(-tx) 4 = Blue(-rx)	D	4A	250V	2×2×0.34, (2×2×22AWG) yellowish green, PVC, OD=6.5	Straight	2M	M1204DMA-2/E10K

M12 Connector Profinet PVC Shielded Cable 4 Pin D-code Pre-assembled Circular Connector 3

M12 Connector Profinet PVC Shielded Cable 4 Pin D-code Pre-assembled Circular Connector 4
